本篇文章主要介绍使用nginx配置tomcat和https的ssl证书。

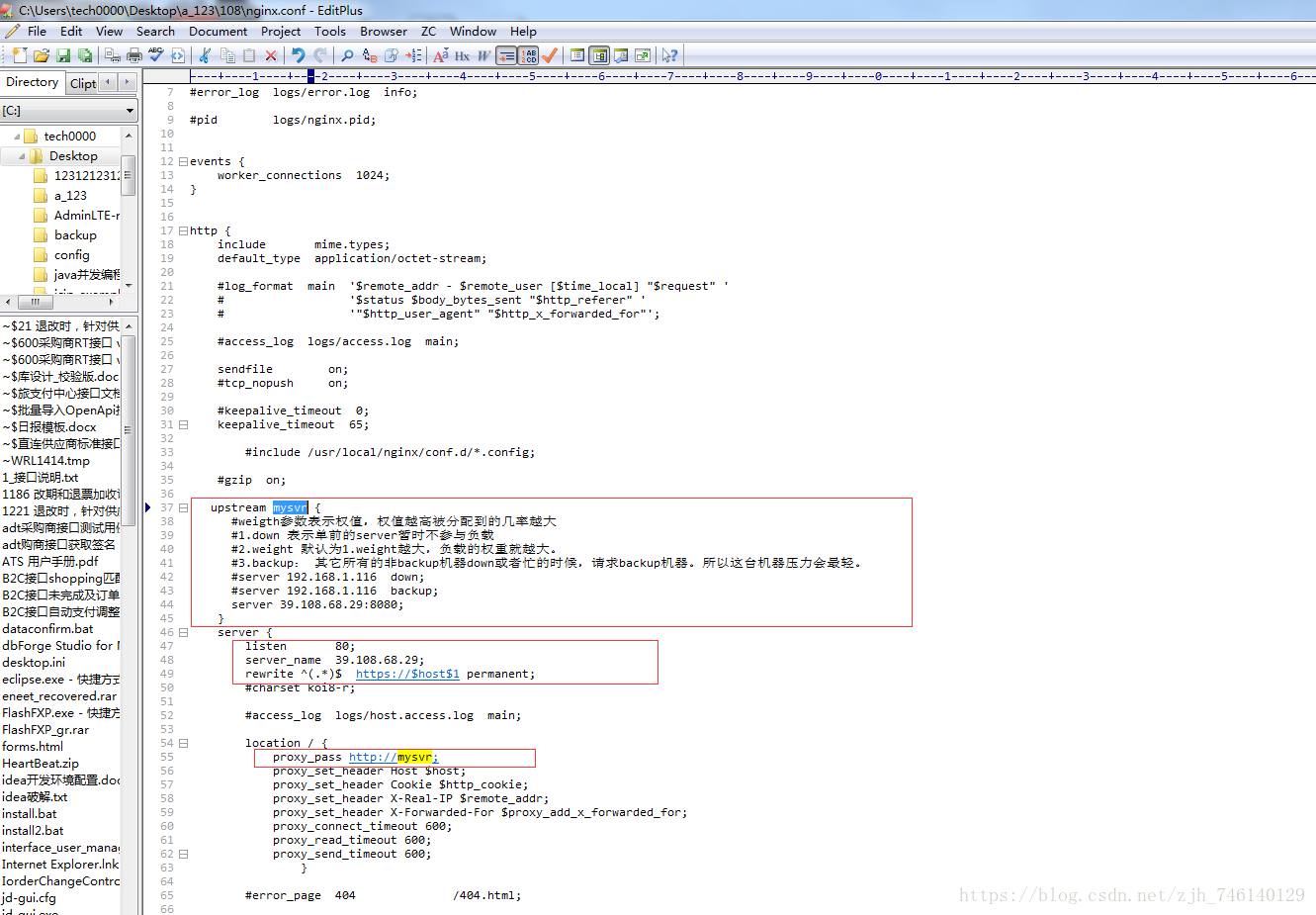

方式一：直接修改nginx的conf文件下的nginx.conf文件

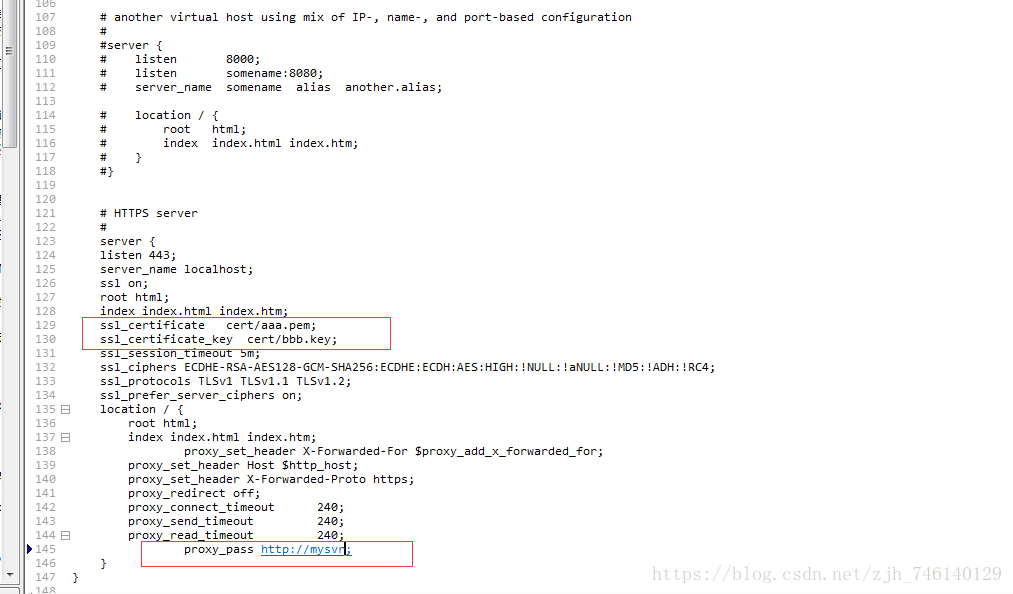

如下可以直接复制整个server节点，修改红框里的证书为自己的即可。

#user  nobody;
worker_processes  1;#error_log  logs/error.log;
#error_log  logs/error.log  notice;
#error_log  logs/error.log  info;#pid        logs/nginx.pid;events {worker_connections  1024;
}http {include       mime.types;default_type  application/octet-stream;#log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '#                  '$status $body_bytes_sent "$http_referer" '#                  '"$http_user_agent" "$http_x_forwarded_for"';#access_log  logs/access.log  main;sendfile        on;#tcp_nopush     on;#keepalive_timeout  0;keepalive_timeout  65;#include /usr/local/nginx/conf.d/*.config;#gzip  on;upstream mysvr {#weigth参数表示权值，权值越高被分配到的几率越大   #1.down 表示单前的server暂时不参与负载#2.weight 默认为1.weight越大，负载的权重就越大。     #3.backup： 其它所有的非backup机器down或者忙的时候，请求backup机器。所以这台机器压力会最轻。  #server 192.168.1.116  down;#server 192.168.1.116  backup;server 39.108.68.29:8080;}server {listen       80;server_name  39.108.68.29;rewrite ^(.*)$  https://$host$1 permanent; #charset koi8-r;#access_log  logs/host.access.log  main;location / {proxy_pass http://mysvr;proxy_set_header Host $host; proxy_set_header Cookie $http_cookie;proxy_set_header X-Real-IP $remote_addr; proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;proxy_connect_timeout 600;proxy_read_timeout 600;proxy_send_timeout 600; }#error_page  404              /404.html;# redirect server error pages to the static page /50x.html#error_page   500 502 503 504  /50x.html;location = /50x.html {root   html;}# proxy the PHP scripts to Apache listening on 127.0.0.1:80##location ~ \.php$ {#    proxy_pass   http://127.0.0.1;#}# pass the PHP scripts to FastCGI server listening on 127.0.0.1:9000##location ~ \.php$ {#    root           html;#    fastcgi_pass   127.0.0.1:9000;#    fastcgi_index  index.php;#    fastcgi_param  SCRIPT_FILENAME  /scripts$fastcgi_script_name;#    include        fastcgi_params;#}# deny access to .htaccess files, if Apache's document root# concurs with nginx's one##location ~ /\.ht {#    deny  all;#}}#server {# listen 80;# server_name www.yitaobei.cn;# return 301 https://$server_name$request_uri;#}# another virtual host using mix of IP-, name-, and port-based configuration##server {#    listen       8000;#    listen       somename:8080;#    server_name  somename  alias  another.alias;#    location / {#        root   html;#        index  index.html index.htm;#    }#}# HTTPS server#server {listen 443;server_name localhost;ssl on;root html;index index.html index.htm;ssl_certificate   cert/14330112820728.pem;ssl_certificate_key  cert/214330112820728.key;ssl_session_timeout 5m;ssl_ciphers ECDHE-RSA-AES128-GCM-SHA256:ECDHE:ECDH:AES:HIGH:!NULL:!aNULL:!MD5:!ADH:!RC4;ssl_protocols TLSv1 TLSv1.1 TLSv1.2;ssl_prefer_server_ciphers on;location / {root html;index index.html index.htm;proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;proxy_set_header Host $http_host;proxy_set_header X-Forwarded-Proto https;proxy_redirect off;proxy_connect_timeout      240;proxy_send_timeout         240;proxy_read_timeout         240;proxy_pass http://mysvr;}
}}

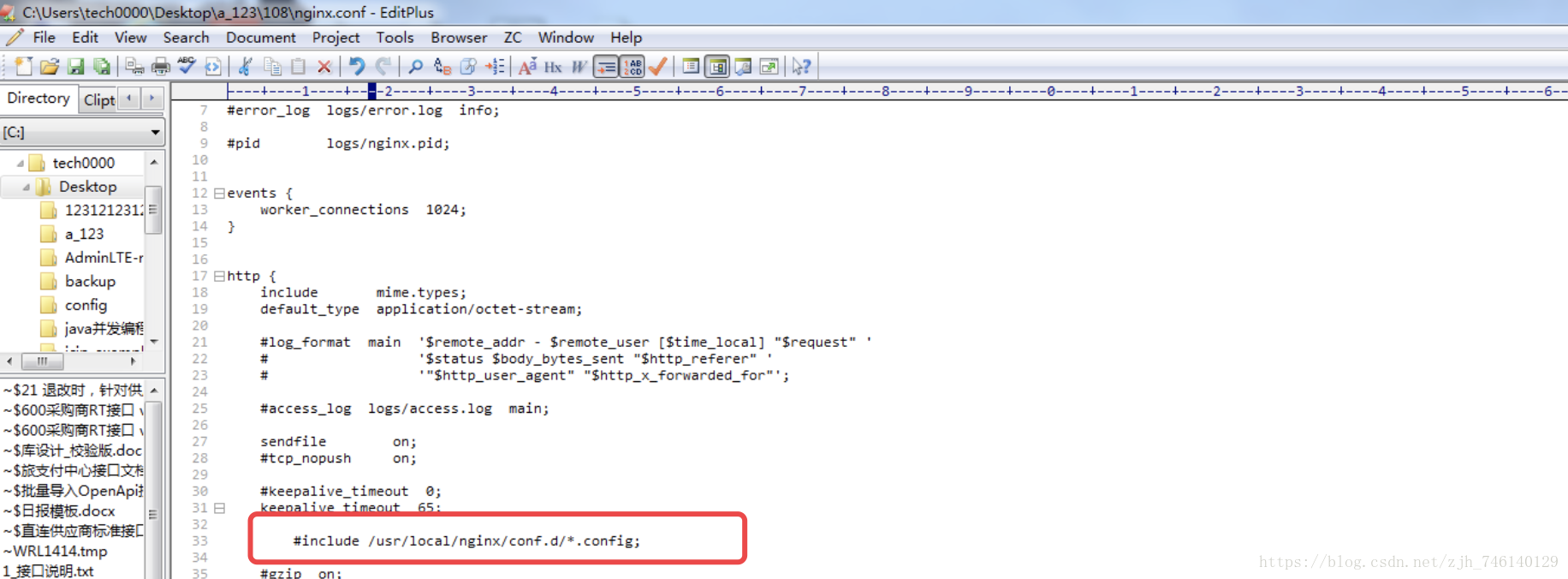

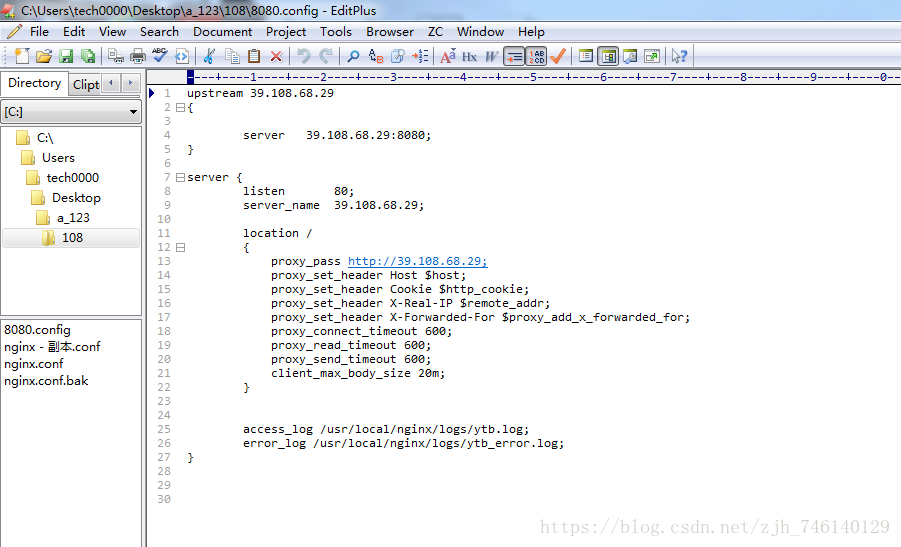

方式二：在nginx的conf文件下的nginx.conf中引用外部文件

upstream 39.108.68.29
{       server   39.108.68.29:8080;
}server {listen       80;server_name  39.108.68.29;location /{proxy_pass http://39.108.68.29;proxy_set_header Host $host;proxy_set_header Cookie $http_cookie; proxy_set_header X-Real-IP $remote_addr; proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;proxy_connect_timeout 600;proxy_read_timeout 600;proxy_send_timeout 600;client_max_body_size 20m; }access_log /usr/local/nginx/logs/ytb.log;error_log /usr/local/nginx/logs/ytb_error.log;
}

详解部分参数含义

listen：表示当前的代理服务器监听的端口，默认的是监听80端口。注意，如果我们配置了多个server，这个listen要配置不一样，不然就不能确定转到哪里去了。

server_name：表示监听到之后需要转到哪里去，这时我们直接转到本地，这时是直接到nginx文件夹内。

location：表示匹配的路径，这时配置了/表示所有请求都被匹配到这里

root：里面配置了root这时表示当匹配这个请求的路径时，将会在这个文件夹内寻找相应的文件，这里对我们之后的静态文件伺服很有用。

index：当没有指定主页时，默认会选择这个指定的文件，它可以有多个，并按顺序来加载，如果第一个不存在，则找第二个，依此类推。
