在PostgreSQL 9.5之前，与数据页面相关的信息同样会被注册到rdatas（上一篇博客中提到的数组），这种实现逻辑不清晰。PostgreSQL 9.5之后改进了日志记录的产生和组织方式，它通过XLogRegisterBuffer函数把受写操作影响的页面注册到registerd_buffers数组中，每个页面在registerd_buffers数组中都占一个槽位。registerd_buffers是由registered_buffer结构体构成的数组。

数据结构

static registered_buffer *registered_buffers;
static int	max_registered_buffers; /* allocated size */
static int	max_registered_block_id = 0;	/* highest block_id + 1 currently registered *//* For each block reference registered with XLogRegisterBuffer, we fill in a registered_buffer struct. */
typedef struct {bool		in_use;			/* is this slot in use? 槽位使用中 */uint8		flags;			/* REGBUF_* flags */RelFileNode rnode;			/* identifies the relation and block 页面对应的物理信息 */ForkNumber	forkno;BlockNumber block;Page		page;			/* page content 页面内容指针 */uint32		rdata_len;		/* total length of data in rdata chain XLogRegisterBufData会注册进来的长度 */XLogRecData *rdata_head;	/* head of the chain of data registered with this block XLogRegisterBufData会注册数据到这个链表 */XLogRecData *rdata_tail;	/* last entry in the chain, or &rdata_head if empty XLogRegisterBufData会注册进来的最后一个 */// 在XLogRecordAssemble函数中不方便再调用XLogRegister*函数，这里设定两个临时变量XLogRecData bkp_rdatas[2];	/* temporary rdatas used to hold references to* backup block data in XLogRecordAssemble() *//* buffer to store a compressed version of backup block image 压缩页面使用的临时空间 */char		compressed_page[PGLZ_MAX_BLCKSZ];
} registered_buffer;

XLogRegisterBuffer

作用：将涉及到的buff注册到wal记录，比如insert语句的目标buff、update语句的目标buff和源buff。

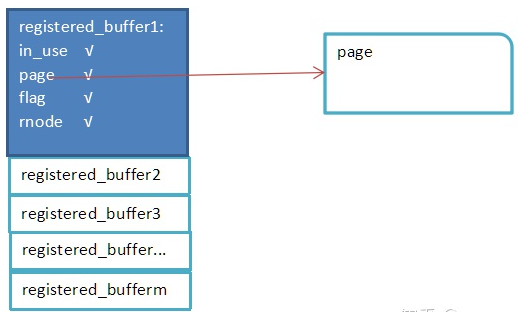

实现过程：找到registered_buffer数组中第一个空的的位置，并将这个位置的数据填充

/* Register a reference to a buffer with the WAL record being constructed. This must be called for every page that the WAL-logged operation modifies. */
void XLogRegisterBuffer(uint8 block_id, Buffer buffer, uint8 flags) {registered_buffer *regbuf;/* NO_IMAGE doesn't make sense with FORCE_IMAGE */Assert(!((flags & REGBUF_FORCE_IMAGE) && (flags & (REGBUF_NO_IMAGE))));Assert(begininsert_called);if (block_id >= max_registered_block_id) { // 检查registered_buffers槽位合法性if (block_id >= max_registered_buffers) elog(ERROR, "too many registered buffers");max_registered_block_id = block_id + 1;}regbuf = &registered_buffers[block_id];BufferGetTag(buffer, &regbuf->rnode, &regbuf->forkno, &regbuf->block);regbuf->page = BufferGetPage(buffer);regbuf->flags = flags;regbuf->rdata_tail = (XLogRecData *) &regbuf->rdata_head; // XLogRegisterBufData会注册进来链表首尾重置regbuf->rdata_len = 0;                                    // XLogRegisterBufData会注册进来链表长度为零regbuf->in_use = true;
}
