前言

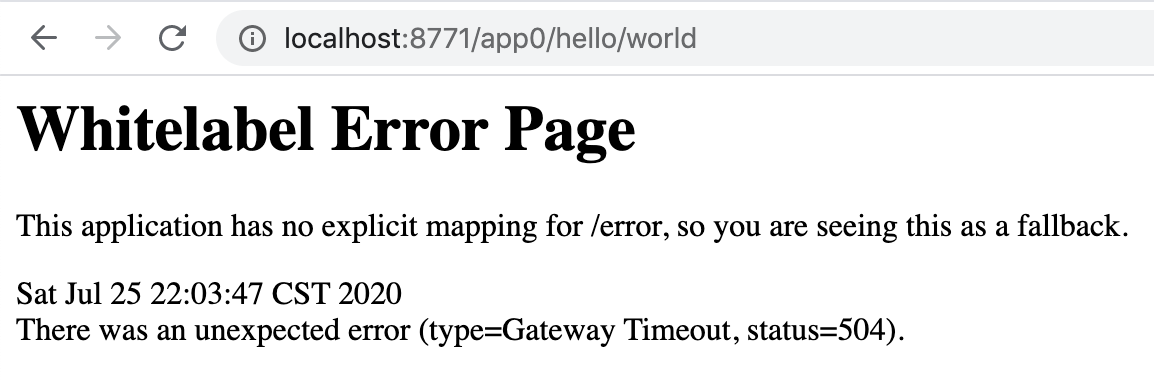

如果你 zuul 发送请求到其他的服务器, 需要一定的时间, 那么 你可能得到的结果是 gateway timeout

呵呵 这里就是围绕这个问题, 展开讨论

以下代码截图, 基于 jdk8 + spring-* 5.2.3.RELEASE + spring-cloud-* 2.2.3.RELEASE

默认的超时时间?

我们来看一下 默认什么都不配置的情况下, 超时时间 是什么, 以及是 如何得到的

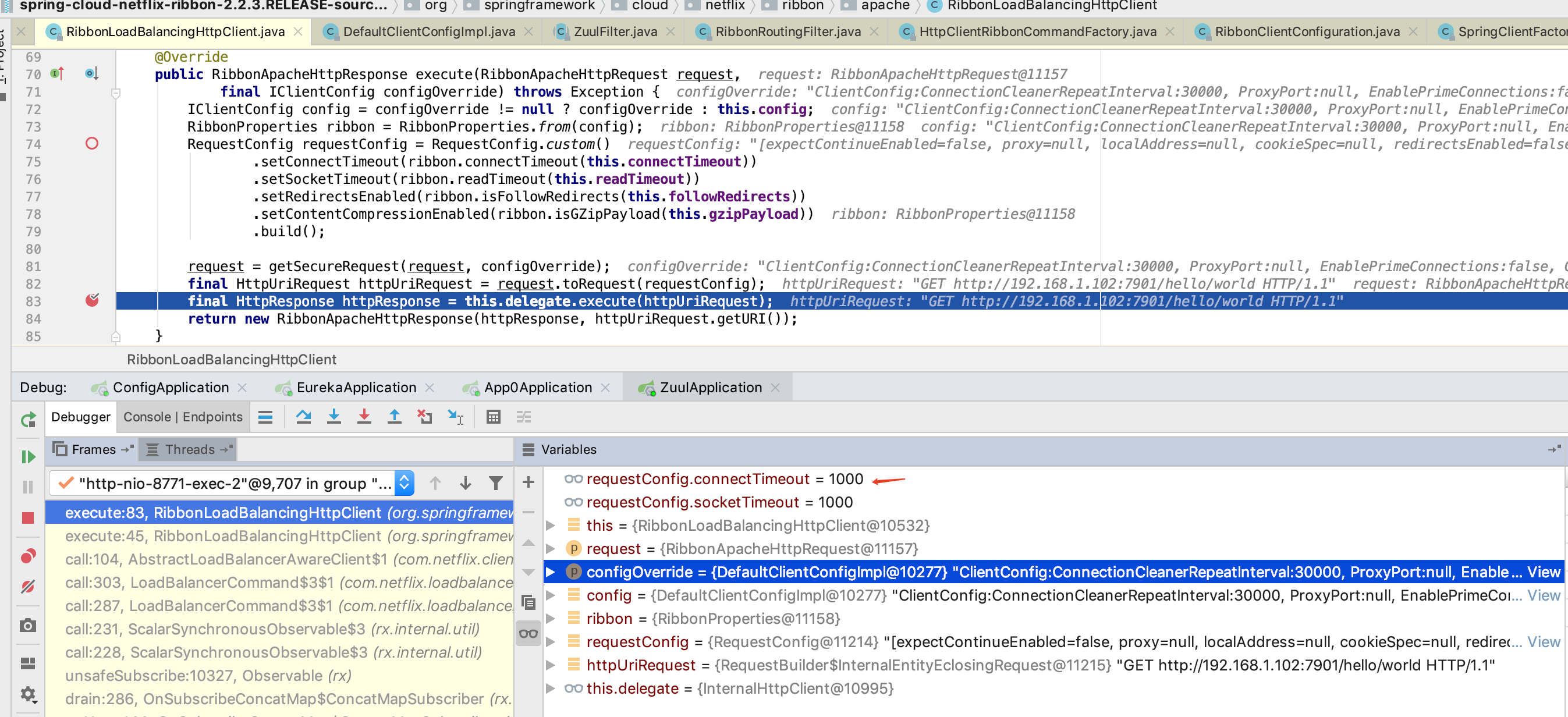

从下图可以知道 默认的超时时间是 1s, 这里传入了一个 IClientConfig, 那么我们继续往上追一下 看一下是哪里构造的呢?

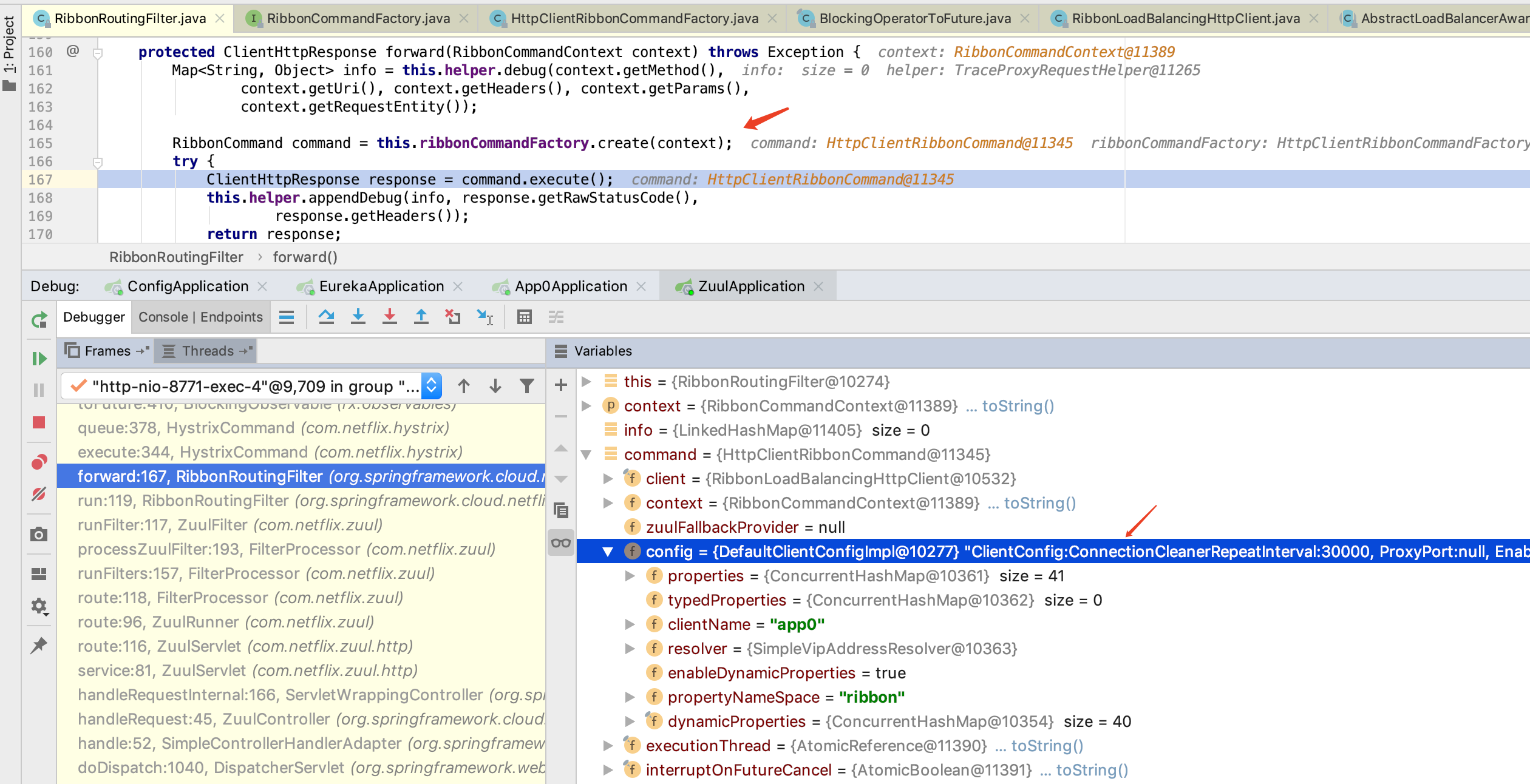

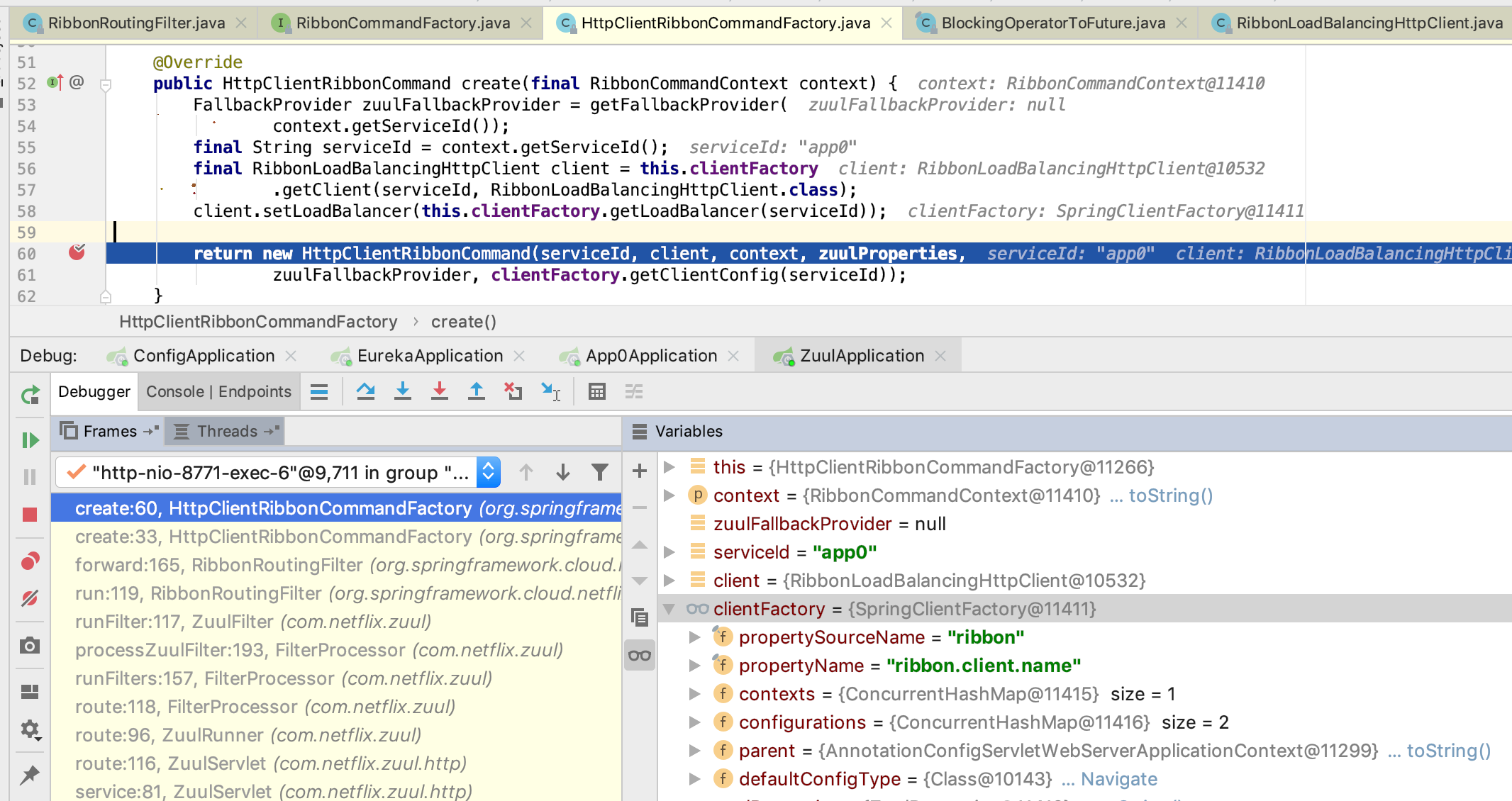

IClientConfig 来自于 这里的 RibbonCommand, RibbonCommand 来自于 ribbonCommandFactory

从这里可以知道 IClientConfig 来自于 clientConfigFactory, 这个 factory 是从 spring 容器中拿 IClientConfig

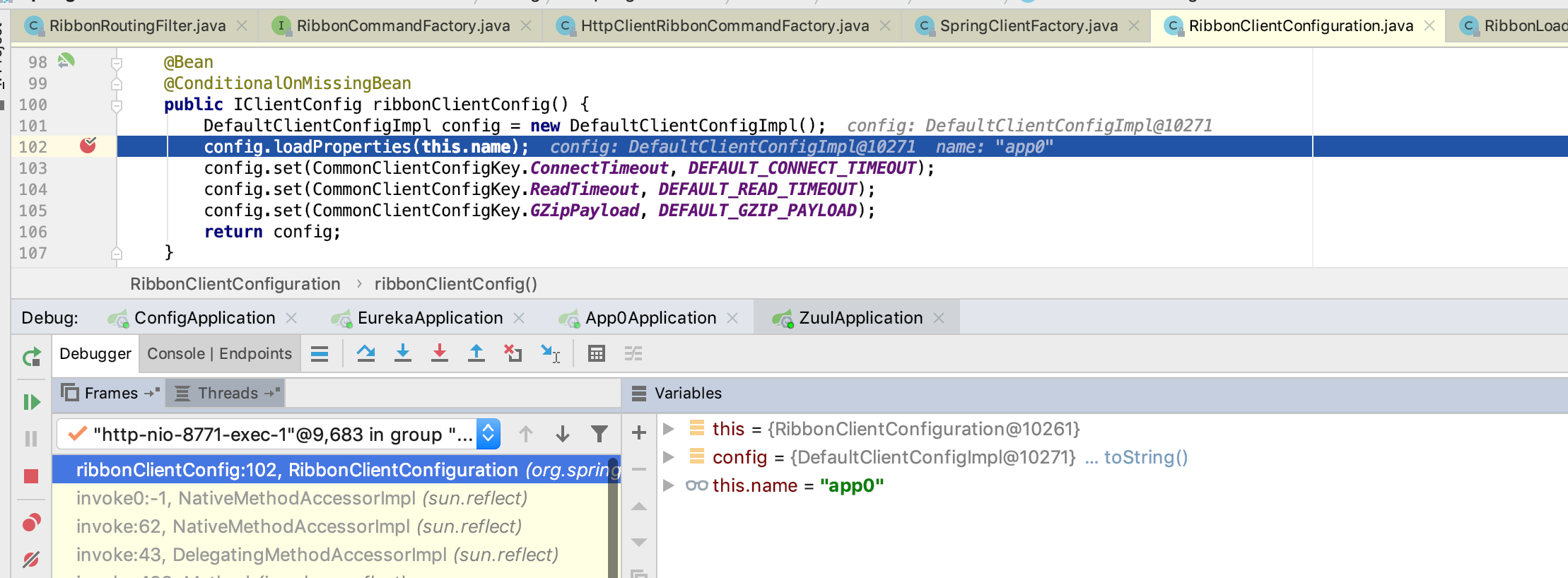

我们再来看一下 spring 容器中 app0 对应的  IClientConfig 创建的地方

这里在业务流程中是在 HttpClientRibbonCommandFactory 创建 RibbonCommand 的时候, 依赖 ribbonPing, 然后 ribbonPing 又依赖于 IClientConfig, 进而创建 app0 对应的 IClientConfig 的实例

当然 从这里也可以看到 这里 config 设置的 默认的 ConnectTimeout, ReadTimeout(常量) 为 1s

然后我们再看一下 发送请求的时候, 从 IClientConfig 中获取配置的这部分的代码的一些细节

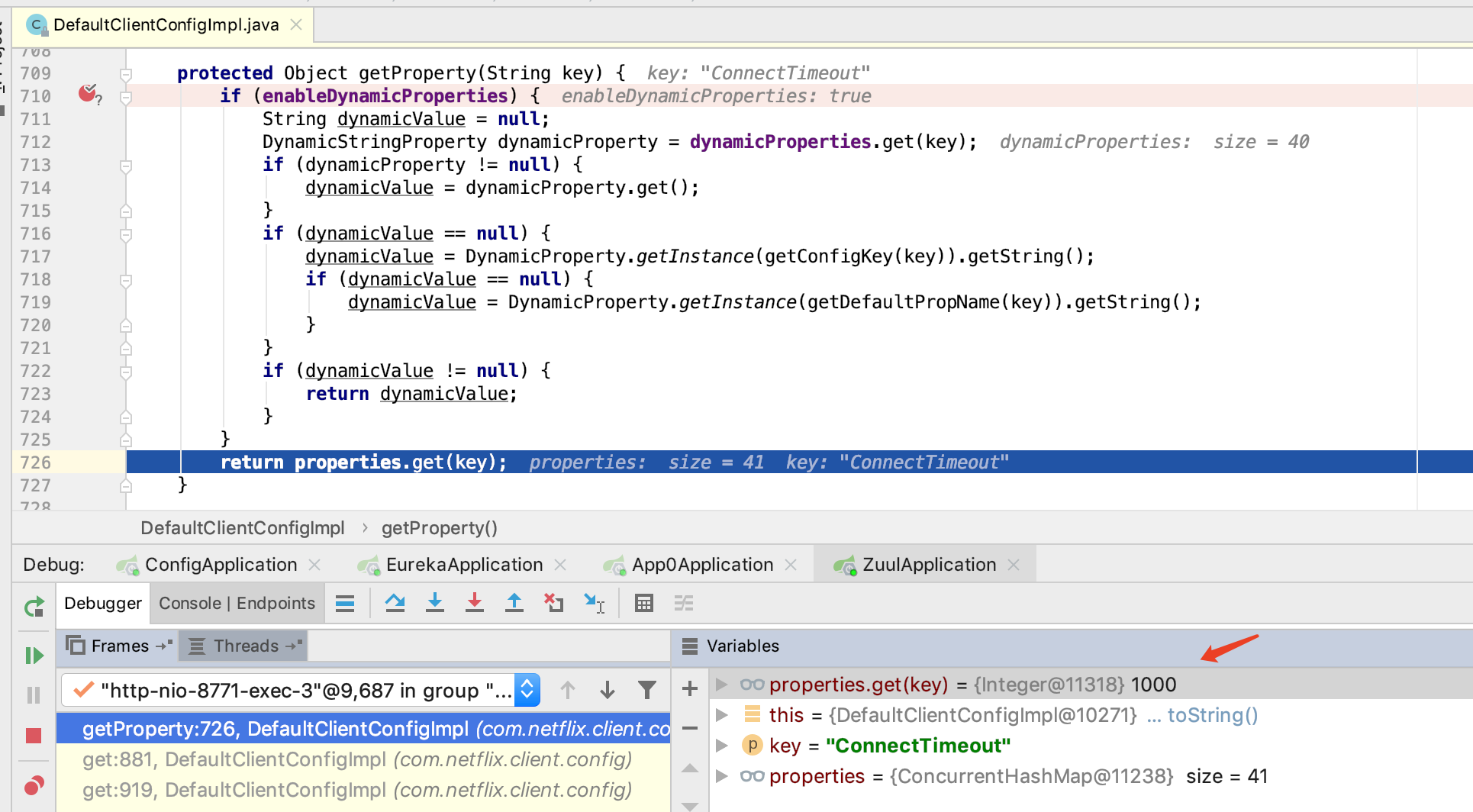

可以看到的是 DefaultClientConfigImpl 先尝试从 称之为 DefaultProperty 的地方取的数据, 这两个地方都没得 ConnectTimeout 的配置, 然后 最后是尝试从 本身的 properties 里面获取配置, 这里获取到的是 填充的默认的 1s

临时处理方式?

看到这里, 我觉得 你应该能够想到一个很直观的解决方式吧

呵呵 那就是自定义 搞一个 IClientConfig 的实现, RibbonClientConfiguration 中 IClientConfig 中配置的是 @ConditionalOnMissingBean

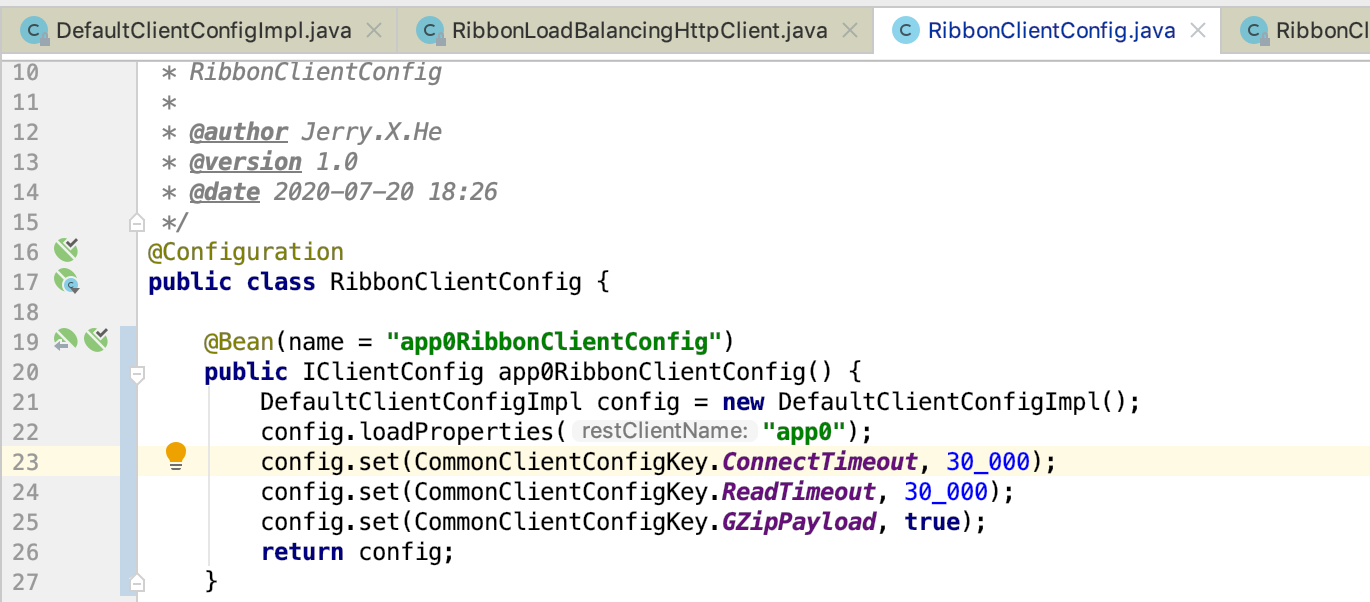

那么 我们只需要 自定义一个 IClientConfig 的实例放到 Spring 容器中就行

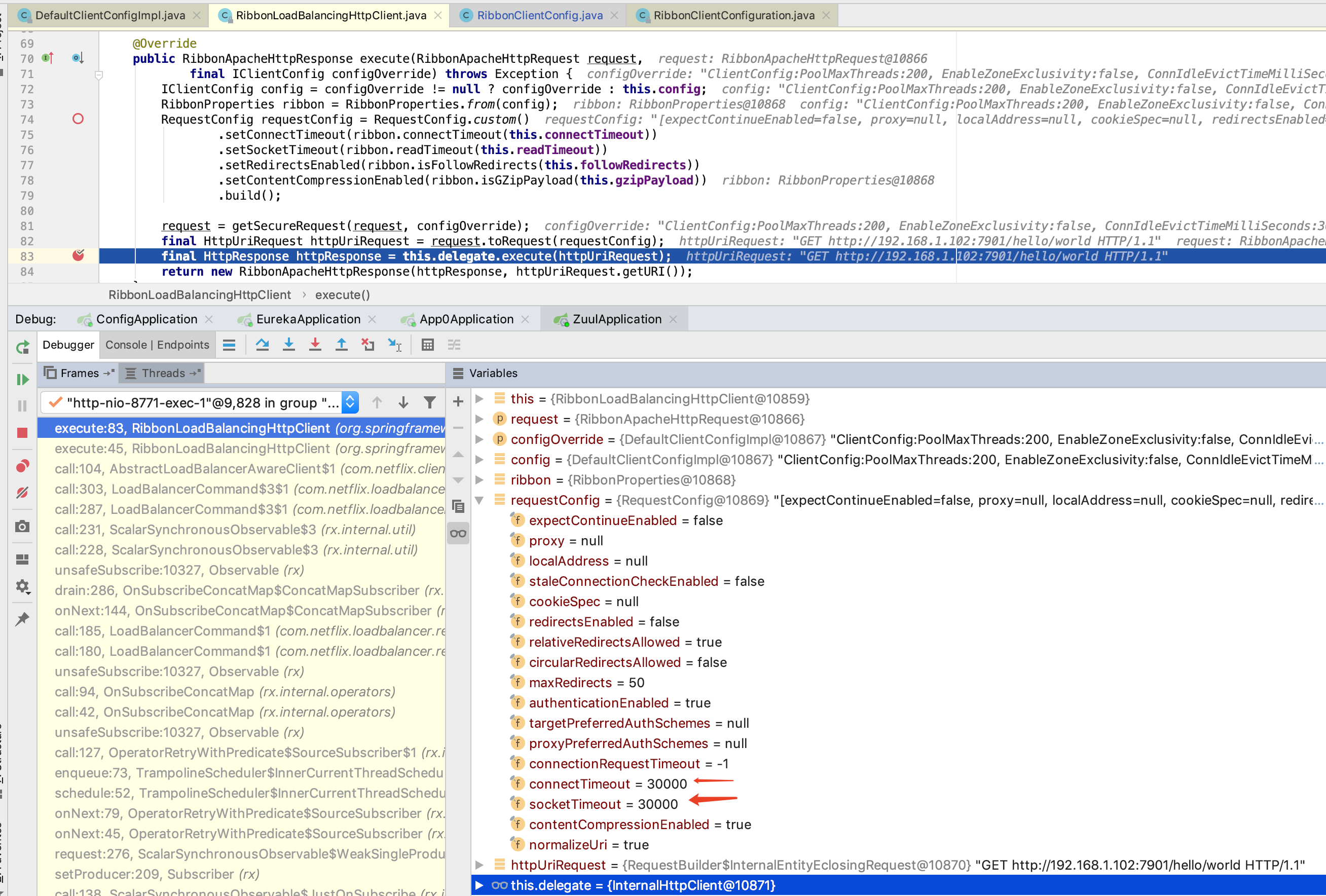

然后看一下 发送请求的时候 拿到的配置, 呵呵 正是这上面配置的 30s

以上这种处理方式是通过 更新 DefaultClientConfigImpl 的 properties 的方式来进行处理的

但是 在比如我们有多个服务的场景下面, 这个方式 就 gg 了

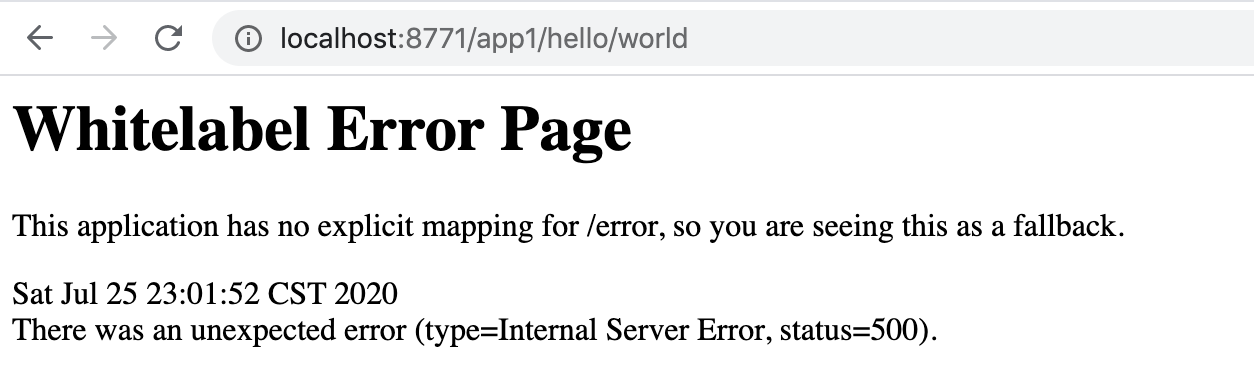

zuul 后台日志错误如下, 可以看到我请求的是 app1, 日志描述的信息 却是 app0 相关

呵呵 至于为何如此 这里暂时不深究

com.netflix.zuul.exception.ZuulException: Filter threw Exceptionat com.netflix.zuul.FilterProcessor.processZuulFilter(FilterProcessor.java:227) ~[zuul-core-1.3.1.jar:1.3.1]at com.netflix.zuul.FilterProcessor.runFilters(FilterProcessor.java:157) ~[zuul-core-1.3.1.jar:1.3.1]at com.netflix.zuul.FilterProcessor.route(FilterProcessor.java:118) ~[zuul-core-1.3.1.jar:1.3.1]at com.netflix.zuul.ZuulRunner.route(ZuulRunner.java:96) ~[zuul-core-1.3.1.jar:1.3.1]at com.netflix.zuul.http.ZuulServlet.route(ZuulServlet.java:116) ~[zuul-core-1.3.1.jar:1.3.1]at com.netflix.zuul.http.ZuulServlet.service(ZuulServlet.java:81) ~[zuul-core-1.3.1.jar:1.3.1]at org.springframework.web.servlet.mvc.ServletWrappingController.handleRequestInternal(ServletWrappingController.java:166) [spring-webmvc-5.2.6.RELEASE.jar:5.2.6.RELEASE]at org.springframework.cloud.netflix.zuul.web.ZuulController.handleRequest(ZuulController.java:45) [spring-cloud-netflix-zuul-2.2.3.RELEASE.jar:2.2.3.RELEASE]at org.springframework.web.servlet.mvc.SimpleControllerHandlerAdapter.handle(SimpleControllerHandlerAdapter.java:52) [spring-webmvc-5.2.6.RELEASE.jar:5.2.6.RELEASE]at org.springframework.web.servlet.DispatcherServlet.doDispatch(DispatcherServlet.java:1040) [spring-webmvc-5.2.6.RELEASE.jar:5.2.6.RELEASE]at org.springframework.web.servlet.DispatcherServlet.doService(DispatcherServlet.java:943) [spring-webmvc-5.2.6.RELEASE.jar:5.2.6.RELEASE]at org.springframework.web.servlet.FrameworkServlet.processRequest(FrameworkServlet.java:1006) [spring-webmvc-5.2.6.RELEASE.jar:5.2.6.RELEASE]at org.springframework.web.servlet.FrameworkServlet.doGet(FrameworkServlet.java:898) [spring-webmvc-5.2.6.RELEASE.jar:5.2.6.RELEASE]at javax.servlet.http.HttpServlet.service(HttpServlet.java:634) [tomcat-embed-core-9.0.35.jar:9.0.35]at org.springframework.web.servlet.FrameworkServlet.service(FrameworkServlet.java:883) [spring-webmvc-5.2.6.RELEASE.jar:5.2.6.RELEASE]at javax.servlet.http.HttpServlet.service(HttpServlet.java:741) [tomcat-embed-core-9.0.35.jar:9.0.35]at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:231) [tomcat-embed-core-9.0.35.jar:9.0.35]at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166) [tomcat-embed-core-9.0.35.jar:9.0.35]at org.apache.tomcat.websocket.server.WsFilter.doFilter(WsFilter.java:53) [tomcat-embed-websocket-9.0.35.jar:9.0.35]at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193) [tomcat-embed-core-9.0.35.jar:9.0.35]at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166) [tomcat-embed-core-9.0.35.jar:9.0.35]at org.springframework.web.filter.RequestContextFilter.doFilterInternal(RequestContextFilter.java:100) [spring-web-5.2.6.RELEASE.jar:5.2.6.RELEASE]at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119) [spring-web-5.2.6.RELEASE.jar:5.2.6.RELEASE]at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193) [tomcat-embed-core-9.0.35.jar:9.0.35]at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166) [tomcat-embed-core-9.0.35.jar:9.0.35]at org.springframework.web.filter.FormContentFilter.doFilterInternal(FormContentFilter.java:93) [spring-web-5.2.6.RELEASE.jar:5.2.6.RELEASE]at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119) [spring-web-5.2.6.RELEASE.jar:5.2.6.RELEASE]at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193) [tomcat-embed-core-9.0.35.jar:9.0.35]at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166) [tomcat-embed-core-9.0.35.jar:9.0.35]at org.springframework.boot.actuate.metrics.web.servlet.WebMvcMetricsFilter.doFilterInternal(WebMvcMetricsFilter.java:93) [spring-boot-actuator-2.3.0.RELEASE.jar:2.3.0.RELEASE]at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119) [spring-web-5.2.6.RELEASE.jar:5.2.6.RELEASE]at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193) [tomcat-embed-core-9.0.35.jar:9.0.35]at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166) [tomcat-embed-core-9.0.35.jar:9.0.35]at org.springframework.web.filter.CharacterEncodingFilter.doFilterInternal(CharacterEncodingFilter.java:201) [spring-web-5.2.6.RELEASE.jar:5.2.6.RELEASE]at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119) [spring-web-5.2.6.RELEASE.jar:5.2.6.RELEASE]at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193) [tomcat-embed-core-9.0.35.jar:9.0.35]at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166) [tomcat-embed-core-9.0.35.jar:9.0.35]at org.apache.catalina.core.StandardWrapperValve.invoke(StandardWrapperValve.java:202) [tomcat-embed-core-9.0.35.jar:9.0.35]at org.apache.catalina.core.StandardContextValve.invoke(StandardContextValve.java:96) [tomcat-embed-core-9.0.35.jar:9.0.35]at org.apache.catalina.authenticator.AuthenticatorBase.invoke(AuthenticatorBase.java:541) [tomcat-embed-core-9.0.35.jar:9.0.35]at org.apache.catalina.core.StandardHostValve.invoke(StandardHostValve.java:139) [tomcat-embed-core-9.0.35.jar:9.0.35]at org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:92) [tomcat-embed-core-9.0.35.jar:9.0.35]at org.apache.catalina.core.StandardEngineValve.invoke(StandardEngineValve.java:74) [tomcat-embed-core-9.0.35.jar:9.0.35]at org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:343) [tomcat-embed-core-9.0.35.jar:9.0.35]at org.apache.coyote.http11.Http11Processor.service(Http11Processor.java:373) [tomcat-embed-core-9.0.35.jar:9.0.35]at org.apache.coyote.AbstractProcessorLight.process(AbstractProcessorLight.java:65) [tomcat-embed-core-9.0.35.jar:9.0.35]at org.apache.coyote.AbstractProtocol$ConnectionHandler.process(AbstractProtocol.java:868) [tomcat-embed-core-9.0.35.jar:9.0.35]at org.apache.tomcat.util.net.NioEndpoint$SocketProcessor.doRun(NioEndpoint.java:1590) [tomcat-embed-core-9.0.35.jar:9.0.35]at org.apache.tomcat.util.net.SocketProcessorBase.run(SocketProcessorBase.java:49) [tomcat-embed-core-9.0.35.jar:9.0.35]at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149) [na:1.8.0_211]at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624) [na:1.8.0_211]at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61) [tomcat-embed-core-9.0.35.jar:9.0.35]at java.lang.Thread.run(Thread.java:748) [na:1.8.0_211]
Caused by: org.springframework.cloud.netflix.zuul.util.ZuulRuntimeException: org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'ribbonServerList' defined in org.springframework.cloud.netflix.ribbon.eureka.EurekaRibbonClientConfiguration: Bean instantiation via factory method failed; nested exception is org.springframework.beans.BeanInstantiationException: Failed to instantiate [com.netflix.loadbalancer.ServerList]: Factory method 'ribbonServerList' threw exception; nested exception is java.lang.NullPointerException: VIP address for client app0 is nullat org.springframework.cloud.netflix.zuul.filters.route.RibbonRoutingFilter.run(RibbonRoutingFilter.java:127) ~[spring-cloud-netflix-zuul-2.2.3.RELEASE.jar:2.2.3.RELEASE]at com.netflix.zuul.ZuulFilter.runFilter(ZuulFilter.java:117) ~[zuul-core-1.3.1.jar:1.3.1]at com.netflix.zuul.FilterProcessor.processZuulFilter(FilterProcessor.java:193) ~[zuul-core-1.3.1.jar:1.3.1]... 52 common frames omitted
Caused by: org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'ribbonServerList' defined in org.springframework.cloud.netflix.ribbon.eureka.EurekaRibbonClientConfiguration: Bean instantiation via factory method failed; nested exception is org.springframework.beans.BeanInstantiationException: Failed to instantiate [com.netflix.loadbalancer.ServerList]: Factory method 'ribbonServerList' threw exception; nested exception is java.lang.NullPointerException: VIP address for client app0 is nullat org.springframework.beans.factory.support.ConstructorResolver.instantiate(ConstructorResolver.java:656) ~[spring-beans-5.2.6.RELEASE.jar:5.2.6.RELEASE]at org.springframework.beans.factory.support.ConstructorResolver.instantiateUsingFactoryMethod(ConstructorResolver.java:636) ~[spring-beans-5.2.6.RELEASE.jar:5.2.6.RELEASE]at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.instantiateUsingFactoryMethod(AbstractAutowireCapableBeanFactory.java:1338) ~[spring-beans-5.2.6.RELEASE.jar:5.2.6.RELEASE]at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBeanInstance(AbstractAutowireCapableBeanFactory.java:1177) ~[spring-beans-5.2.6.RELEASE.jar:5.2.6.RELEASE]at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:557) ~[spring-beans-5.2.6.RELEASE.jar:5.2.6.RELEASE]at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBean(AbstractAutowireCapableBeanFactory.java:517) ~[spring-beans-5.2.6.RELEASE.jar:5.2.6.RELEASE]at org.springframework.beans.factory.support.AbstractBeanFactory.lambda$doGetBean$0(AbstractBeanFactory.java:323) ~[spring-beans-5.2.6.RELEASE.jar:5.2.6.RELEASE]at org.springframework.beans.factory.support.DefaultSingletonBeanRegistry.getSingleton(DefaultSingletonBeanRegistry.java:226) ~[spring-beans-5.2.6.RELEASE.jar:5.2.6.RELEASE]at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:321) ~[spring-beans-5.2.6.RELEASE.jar:5.2.6.RELEASE]at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:202) ~[spring-beans-5.2.6.RELEASE.jar:5.2.6.RELEASE]at org.springframework.beans.factory.support.DefaultListableBeanFactory.preInstantiateSingletons(DefaultListableBeanFactory.java:895) ~[spring-beans-5.2.6.RELEASE.jar:5.2.6.RELEASE]at org.springframework.context.support.AbstractApplicationContext.finishBeanFactoryInitialization(AbstractApplicationContext.java:878) ~[spring-context-5.2.6.RELEASE.jar:5.2.6.RELEASE]at org.springframework.context.support.AbstractApplicationContext.refresh(AbstractApplicationContext.java:550) ~[spring-context-5.2.6.RELEASE.jar:5.2.6.RELEASE]at org.springframework.cloud.context.named.NamedContextFactory.createContext(NamedContextFactory.java:136) ~[spring-cloud-context-2.2.3.RELEASE.jar:2.2.3.RELEASE]at org.springframework.cloud.context.named.NamedContextFactory.getContext(NamedContextFactory.java:101) ~[spring-cloud-context-2.2.3.RELEASE.jar:2.2.3.RELEASE]at org.springframework.cloud.netflix.ribbon.SpringClientFactory.getContext(SpringClientFactory.java:131) ~[spring-cloud-netflix-ribbon-2.2.3.RELEASE.jar:2.2.3.RELEASE]at org.springframework.cloud.context.named.NamedContextFactory.getInstance(NamedContextFactory.java:145) ~[spring-cloud-context-2.2.3.RELEASE.jar:2.2.3.RELEASE]at org.springframework.cloud.netflix.ribbon.SpringClientFactory.getInstance(SpringClientFactory.java:121) ~[spring-cloud-netflix-ribbon-2.2.3.RELEASE.jar:2.2.3.RELEASE]at org.springframework.cloud.netflix.ribbon.SpringClientFactory.getClient(SpringClientFactory.java:55) ~[spring-cloud-netflix-ribbon-2.2.3.RELEASE.jar:2.2.3.RELEASE]at org.springframework.cloud.netflix.zuul.filters.route.apache.HttpClientRibbonCommandFactory.create(HttpClientRibbonCommandFactory.java:57) ~[spring-cloud-netflix-zuul-2.2.3.RELEASE.jar:2.2.3.RELEASE]at org.springframework.cloud.netflix.zuul.filters.route.apache.HttpClientRibbonCommandFactory.create(HttpClientRibbonCommandFactory.java:33) ~[spring-cloud-netflix-zuul-2.2.3.RELEASE.jar:2.2.3.RELEASE]at org.springframework.cloud.netflix.zuul.filters.route.RibbonRoutingFilter.forward(RibbonRoutingFilter.java:165) ~[spring-cloud-netflix-zuul-2.2.3.RELEASE.jar:2.2.3.RELEASE]at org.springframework.cloud.netflix.zuul.filters.route.RibbonRoutingFilter.run(RibbonRoutingFilter.java:119) ~[spring-cloud-netflix-zuul-2.2.3.RELEASE.jar:2.2.3.RELEASE]... 54 common frames omitted
Caused by: org.springframework.beans.BeanInstantiationException: Failed to instantiate [com.netflix.loadbalancer.ServerList]: Factory method 'ribbonServerList' threw exception; nested exception is java.lang.NullPointerException: VIP address for client app0 is nullat org.springframework.beans.factory.support.SimpleInstantiationStrategy.instantiate(SimpleInstantiationStrategy.java:185) ~[spring-beans-5.2.6.RELEASE.jar:5.2.6.RELEASE]at org.springframework.beans.factory.support.ConstructorResolver.instantiate(ConstructorResolver.java:651) ~[spring-beans-5.2.6.RELEASE.jar:5.2.6.RELEASE]... 76 common frames omitted
Caused by: java.lang.NullPointerException: VIP address for client app0 is nullat com.netflix.niws.loadbalancer.DiscoveryEnabledNIWSServerList.initWithNiwsConfig(DiscoveryEnabledNIWSServerList.java:109) ~[ribbon-eureka-2.3.0.jar:2.3.0]at com.netflix.niws.loadbalancer.DiscoveryEnabledNIWSServerList.<init>(DiscoveryEnabledNIWSServerList.java:100) ~[ribbon-eureka-2.3.0.jar:2.3.0]at org.springframework.cloud.netflix.ribbon.eureka.EurekaRibbonClientConfiguration.ribbonServerList(EurekaRibbonClientConfiguration.java:106) ~[spring-cloud-netflix-eureka-client-2.2.3.RELEASE.jar:2.2.3.RELEASE]at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method) ~[na:1.8.0_211]at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62) ~[na:1.8.0_211]at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43) ~[na:1.8.0_211]at java.lang.reflect.Method.invoke(Method.java:498) ~[na:1.8.0_211]at org.springframework.beans.factory.support.SimpleInstantiationStrategy.instantiate(SimpleInstantiationStrategy.java:154) ~[spring-beans-5.2.6.RELEASE.jar:5.2.6.RELEASE]... 77 common frames omitted

通过 DefaultProperty 来处理超时问题

首先我们来看一下 配置的方式, 以及实际请求的时候的 效果

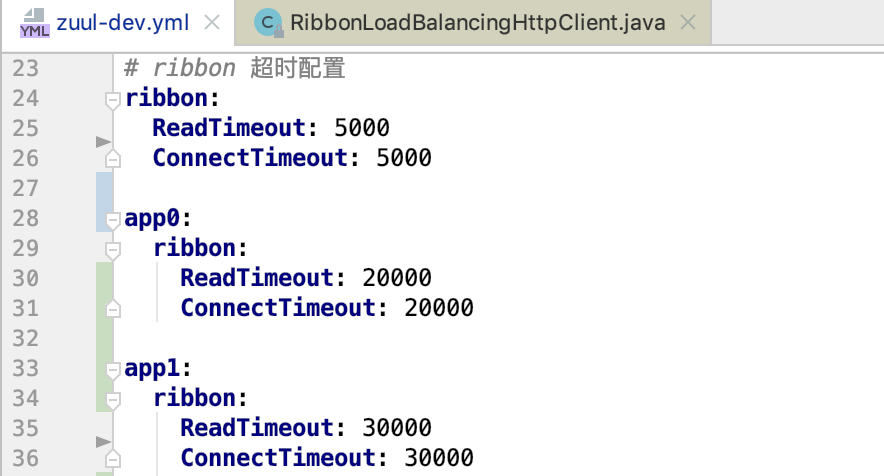

配置如下, 可以 ribbon 全局配置, 也可以根据每一个 服务进行配置

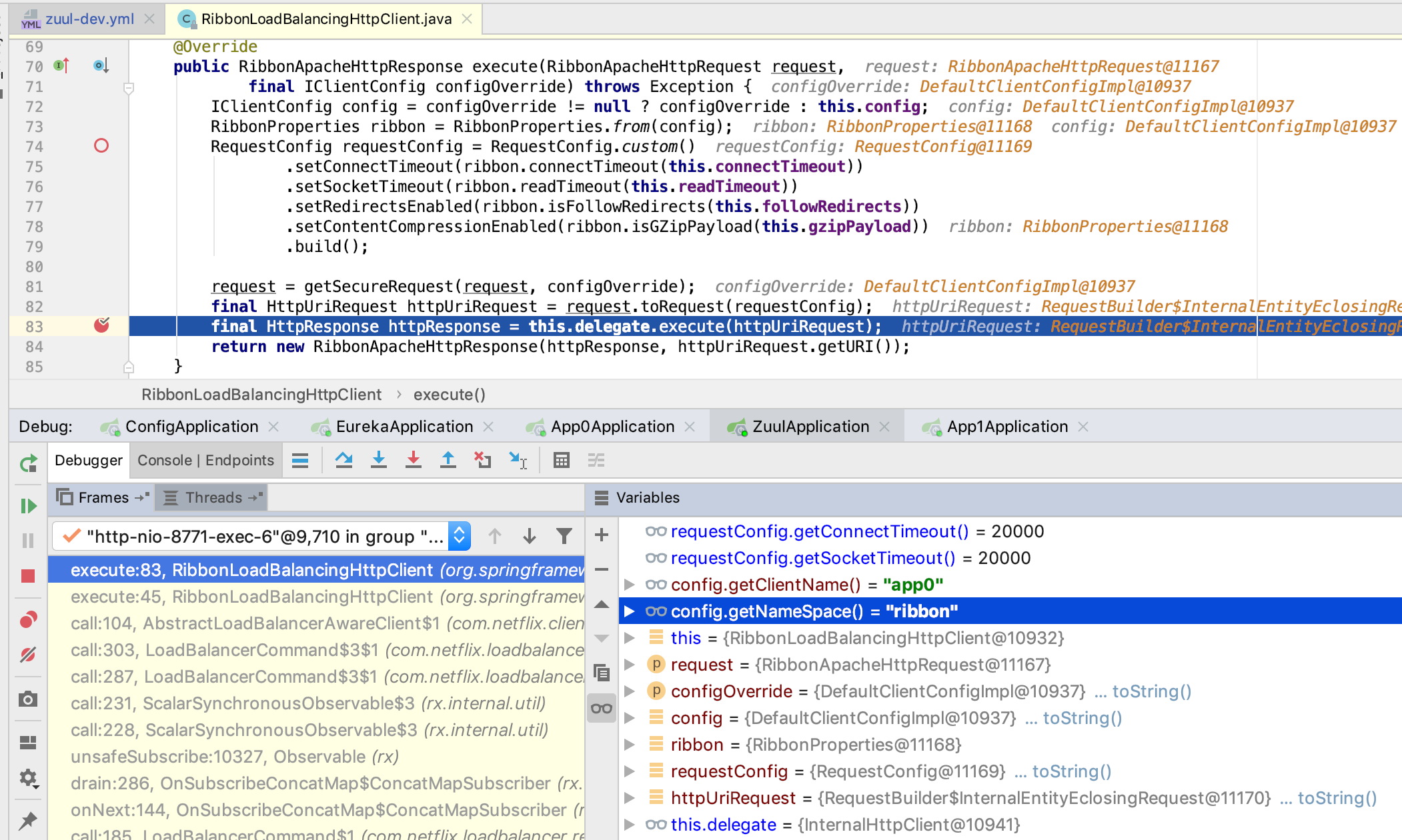

访问 app0 相关服务

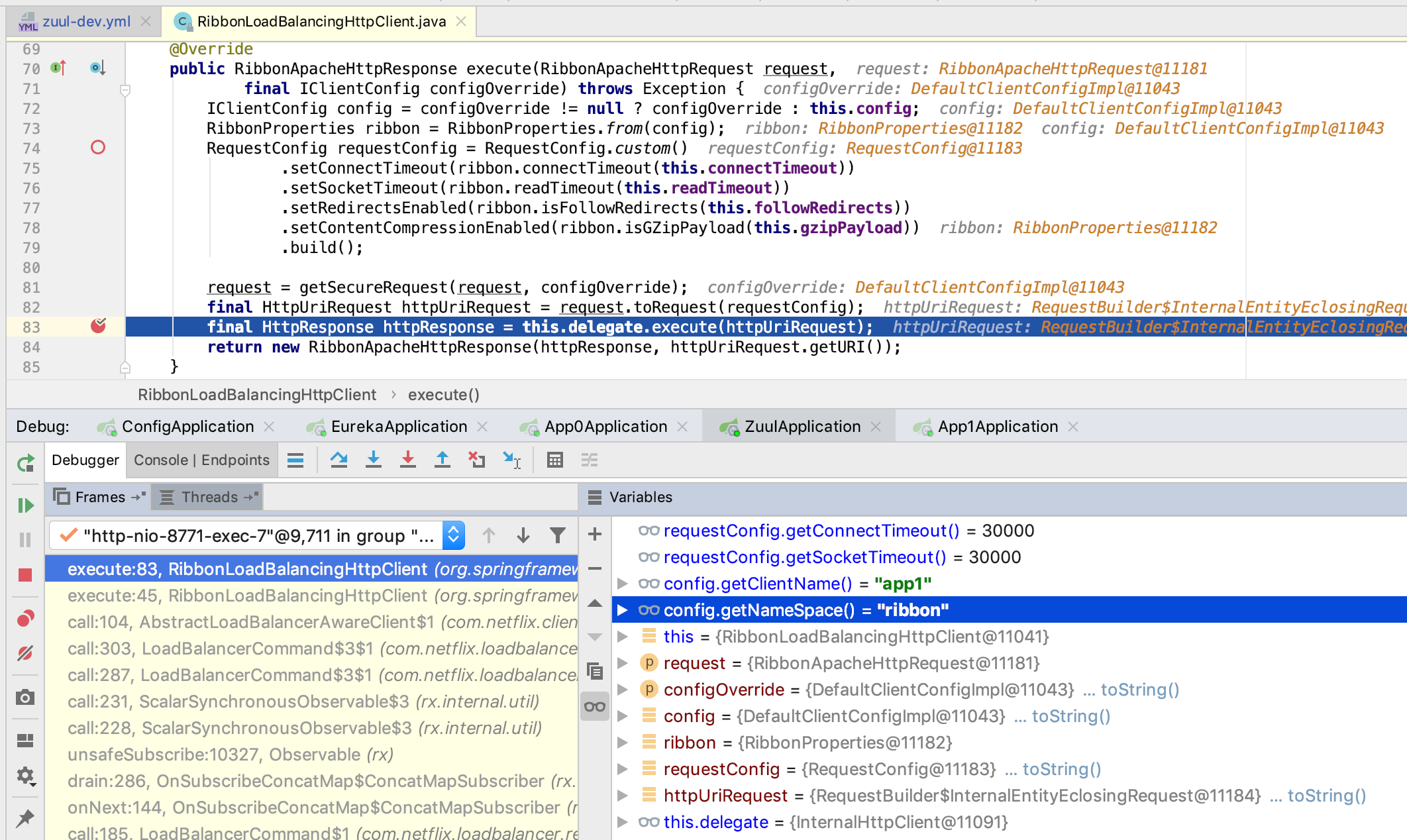

访问 app1 相关服务

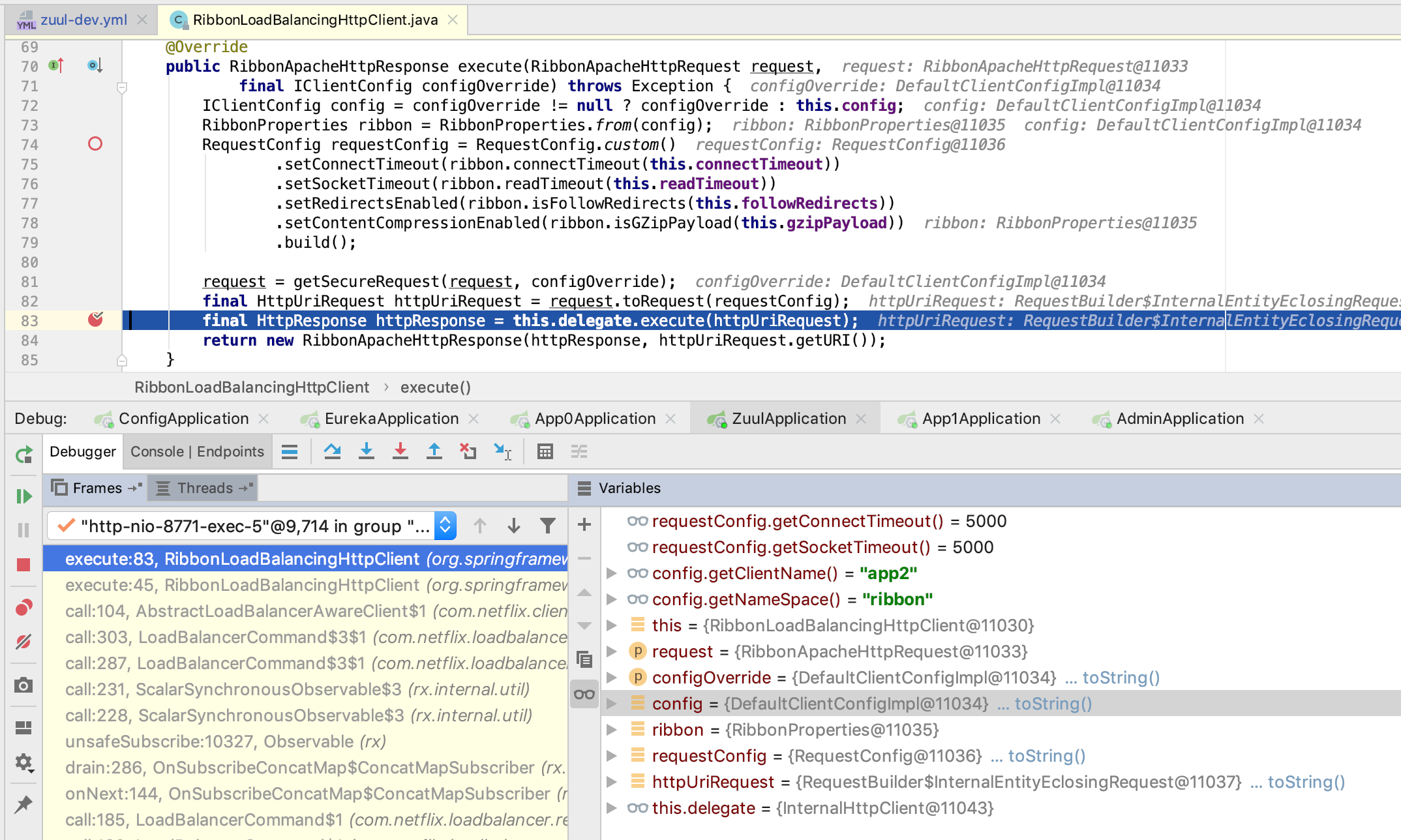

访问其他服务

接下来我们具体的看一下 代码中的处理

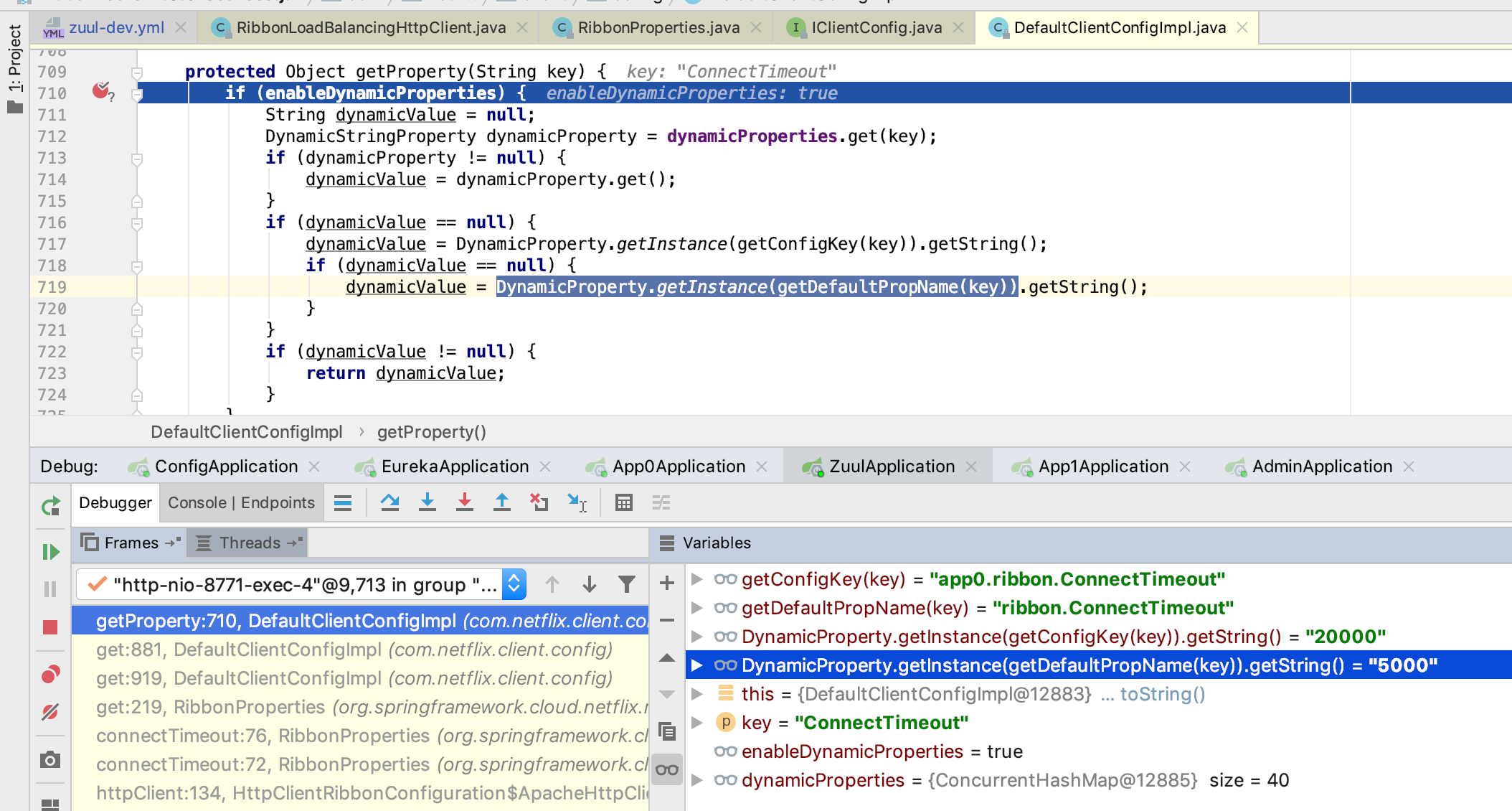

可以看到 优先获取的是 服务的 ribbon 这个名称空间下的配置, 如果获取不到 获取全局的 ribbon 这个名称空间下的配置

如果 DefaultProperty 获取不到配置, 则尝试从 properties 中获取配置

那么配置信息从哪里来呢?

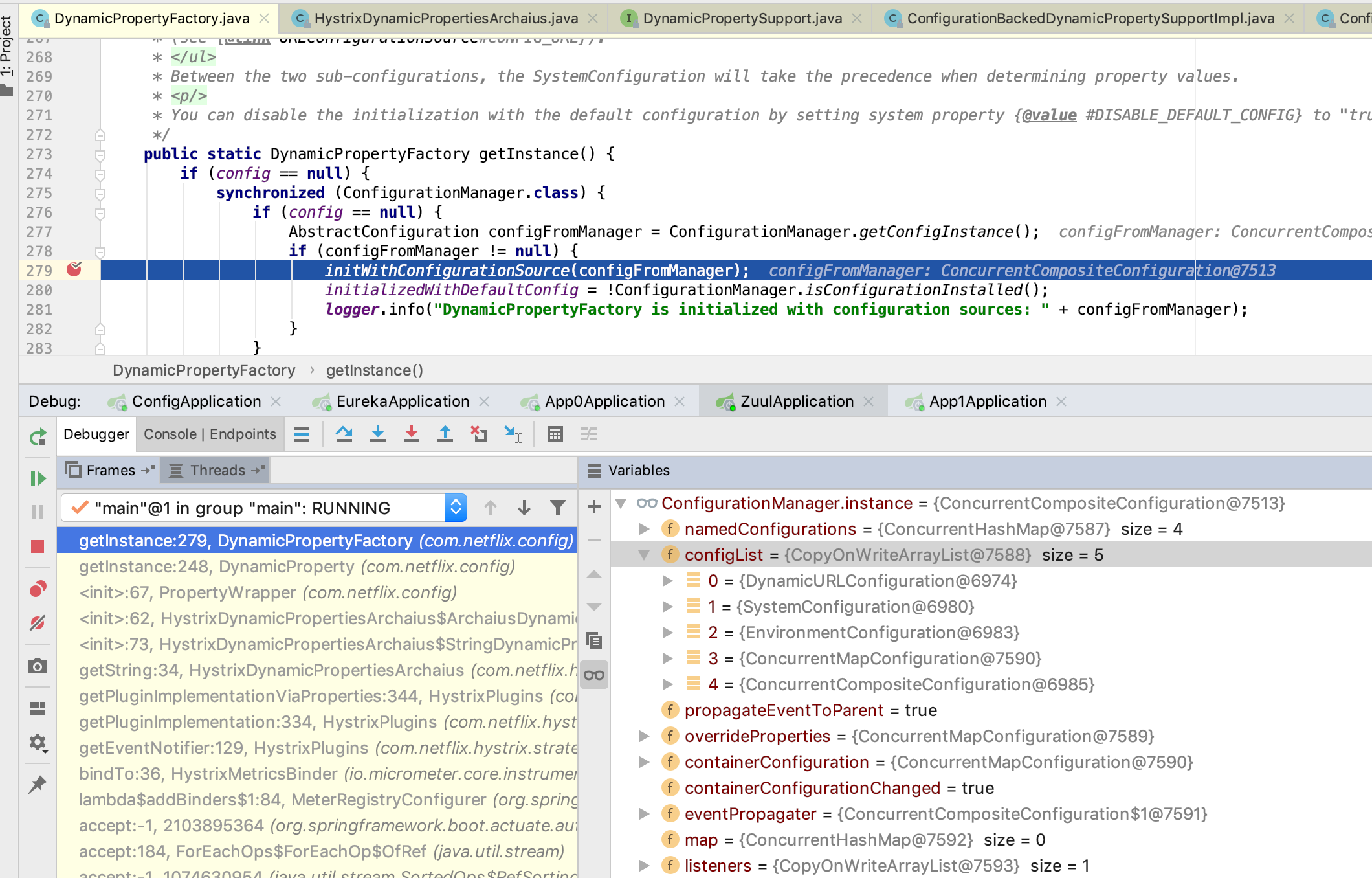

在获取 hystrix.plugin.HystrixEventNotifier.implementation 配置的时候,  使用 ConfigurationManager 中的配置 初始化了 dynamicPropertySupportImpl, 后面的业务代码 获取配置是从 dynamicPropertySupportImpl 中获取数据

因此配置信息来自于 ConfigurationManager

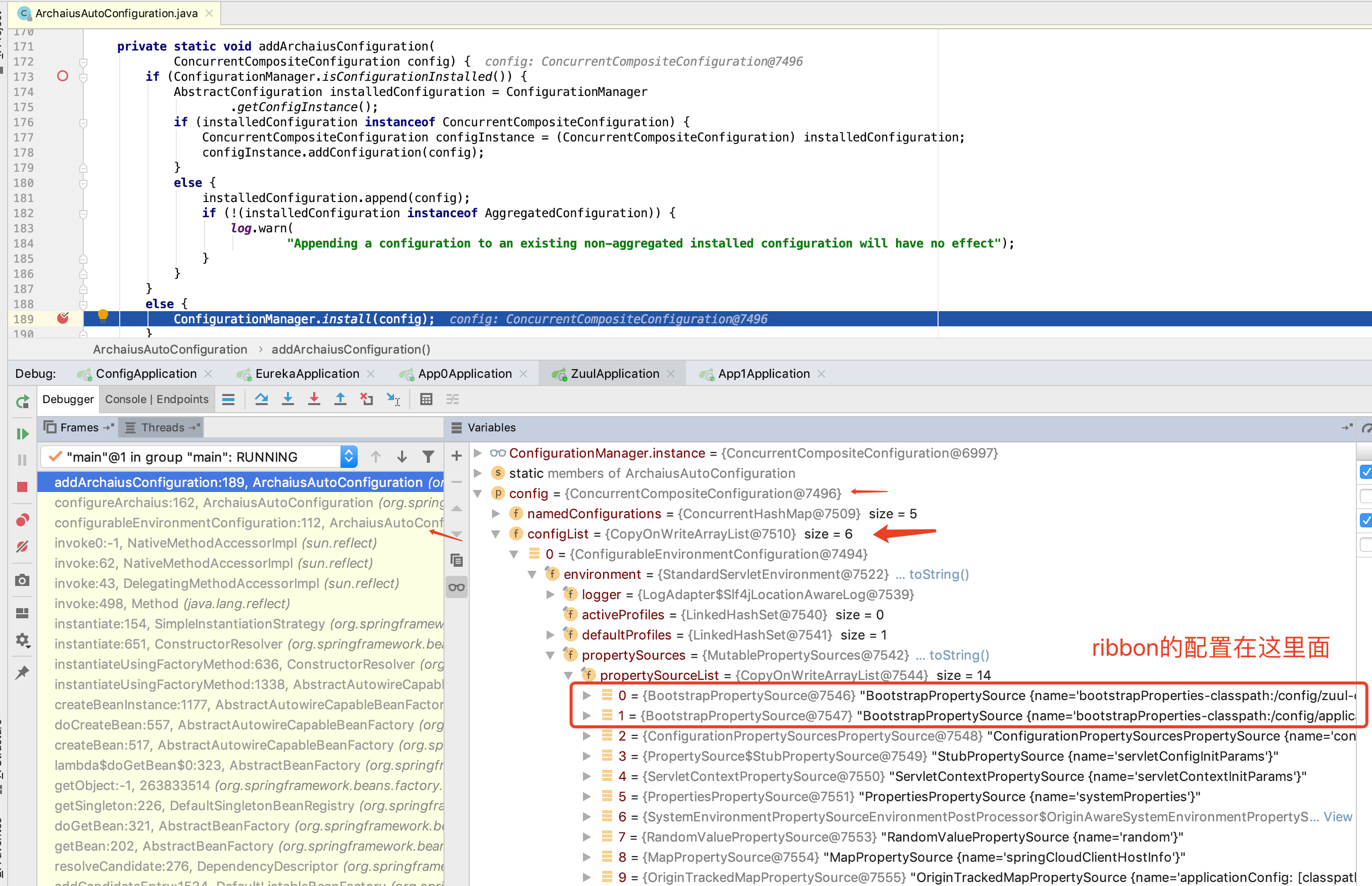

接着之后 在实例化 ConfigurableEnvironmentConfiguration 的时候, 安装了新的 Configuration 到 ConfigurationManager

ribbon.xxxTimeout 的配置, 这里是来自于 远程的配置服务器, 也可以配置在 zuul 的 配置文件里面

完
