背景

之前使用nginx都是代理http协议的接口，最近有个交易类项目上线，此项目和银行使用socket通信，所以整理下如何使用nginx进行socket端口的代理。

配置

nginx配置ngx_stream_core_module模块

主要是--with-stream，因为之前有其他模块所以重新编译，使用命令如下：

./configure --prefix=/usr/local/nginx --with-stream --with-http_stub_status_module --with-http_ssl_module --add-module=/usr/local/fastdfs-nginx-module/srcmake && make install

配置conf/nginx.conf文件

添加和events语句块平级的stream语句块。

stream {upstream socket_server {server 127.0.0.1:8001;server 127.0.0.1:8002;}# 监听socket端口server {listen 8888;proxy_pass socket_server;}
}

测试

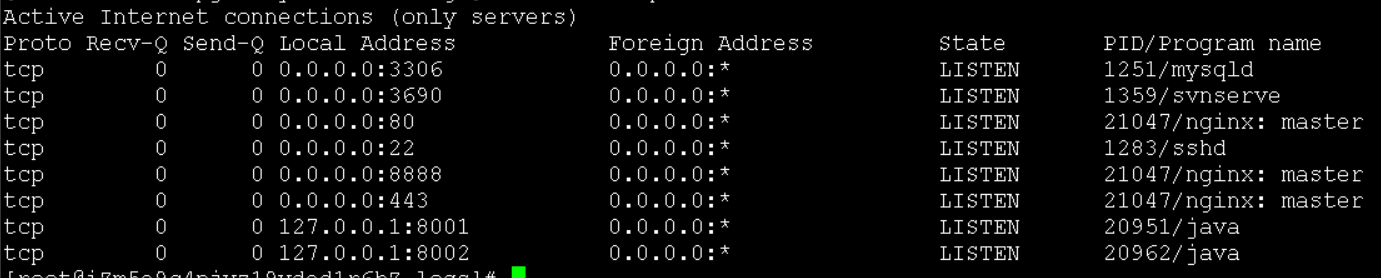

1. 云上部署两个netty服务端程序，端口分别是8001和8002，并启动。此时服务器端口如下：
2. 启动nginx，端口如下：
3. 在本地启动两个命令行，使用telnet IP 8888测试，可以看见云服务器上8001和8002两个进程交替响应。

 附：代码

服务端

NettyServer.java

package com.ll.netty;import io.netty.bootstrap.ServerBootstrap;
import io.netty.channel.ChannelFuture;
import io.netty.channel.EventLoopGroup;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.nio.NioServerSocketChannel;import org.slf4j.Logger;
import org.slf4j.LoggerFactory;public class NettyServer {private static final Logger log = LoggerFactory.getLogger(NettyServer.class);private final String ip = "127.0.0.1";private final String port = "8001";public void start() throws InterruptedException{EventLoopGroup bossGroup = new NioEventLoopGroup(1);EventLoopGroup workerGroup = new NioEventLoopGroup();try {ServerBootstrap sb = new ServerBootstrap();sb.group(bossGroup, workerGroup);sb.channel(NioServerSocketChannel.class);sb.childHandler(new ServerInitializer());ChannelFuture f = sb.bind(ip, Integer.parseInt(port)).sync();log.info("Netty Server 启动成功! Ip： " + f.channel().localAddress().toString() + " ! ");f.channel().closeFuture().sync();}catch (Exception e) {e.printStackTrace();} finally {bossGroup.shutdownGracefully();workerGroup.shutdownGracefully();}}public void destory(){}
}

ServerInitializer.java

package com.ll.netty;import java.nio.charset.Charset;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;import io.netty.buffer.Unpooled;
import io.netty.channel.ChannelInitializer;
import io.netty.channel.ChannelPipeline;
import io.netty.channel.socket.SocketChannel;
import io.netty.handler.codec.DelimiterBasedFrameDecoder;
import io.netty.handler.codec.string.StringDecoder;
import io.netty.handler.codec.string.StringEncoder;
import io.netty.handler.logging.LogLevel;
import io.netty.handler.logging.LoggingHandler;
import io.netty.util.concurrent.DefaultEventExecutorGroup;
import io.netty.util.concurrent.EventExecutorGroup;public class ServerInitializer extends ChannelInitializer<SocketChannel> {private static final Logger log = LoggerFactory.getLogger(ServerInitializer.class);static final EventExecutorGroup bussGroup = new DefaultEventExecutorGroup(16);@Overrideprotected void initChannel(SocketChannel ch) {ChannelPipeline pipeline = ch.pipeline();pipeline.addLast(new LoggingHandler(LogLevel.INFO));pipeline.addLast(new DelimiterBasedFrameDecoder(Integer.MAX_VALUE, Unpooled.wrappedBuffer(new byte[] { '~' })));pipeline.addLast(new StringDecoder(Charset.forName("utf-8")));pipeline.addLast(new StringEncoder(Charset.forName("utf-8")));pipeline.addLast(bussGroup, "handler", new ServerHandler());}}

 ServerHandler.java

package com.ll.netty;import org.slf4j.Logger;
import org.slf4j.LoggerFactory;import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.ChannelInboundHandlerAdapter;public class ServerHandler extends ChannelInboundHandlerAdapter {private static final Logger log = LoggerFactory.getLogger(ServerHandler.class);………………………………@Overridepublic void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {ctx.write("hi, " + msg.toString());}@Overridepublic void channelReadComplete(ChannelHandlerContext ctx) throws Exception {ctx.flush();}………………………………}

客户端

 CLient.java

import io.netty.bootstrap.Bootstrap;
import io.netty.buffer.Unpooled;
import io.netty.channel.ChannelFuture;
import io.netty.channel.ChannelInitializer;
import io.netty.channel.EventLoopGroup;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.nio.NioSocketChannel;
import io.netty.handler.codec.DelimiterBasedFrameDecoder;
import io.netty.handler.codec.string.StringDecoder;
import io.netty.handler.codec.string.StringEncoder;
import io.netty.handler.logging.LogLevel;
import io.netty.handler.logging.LoggingHandler;public class CLient {public static void main(String[] args) throws InterruptedException {Bootstrap client = new Bootstrap();EventLoopGroup group = new NioEventLoopGroup();client.group(group);client.channel(NioSocketChannel.class);client.handler(new ChannelInitializer<NioSocketChannel>() {@Overrideprotected void initChannel(NioSocketChannel ch) throws Exception {ch.pipeline().addLast(new LoggingHandler(LogLevel.INFO));ch.pipeline().addLast(new StringEncoder());ch.pipeline().addLast(new DelimiterBasedFrameDecoder(   Integer.MAX_VALUE, Unpooled.wrappedBuffer(new byte[] { '~' }))); ch.pipeline().addLast(new StringDecoder());}});ChannelFuture future = client.connect("47.1.5.8", 8888).sync();for(int i=0;i<100;i++){String msg = "l"+i+"~";future.channel().writeAndFlush(msg);}future.channel().closeFuture().sync();}}
