文章目录
- 1、安装底层版本要求
- 2、安装Harbor
- 2.1 校验文件
- 2.2 创建私钥文件、证书请求文件、证书文件
- 2.3 修改Harbor配置文件

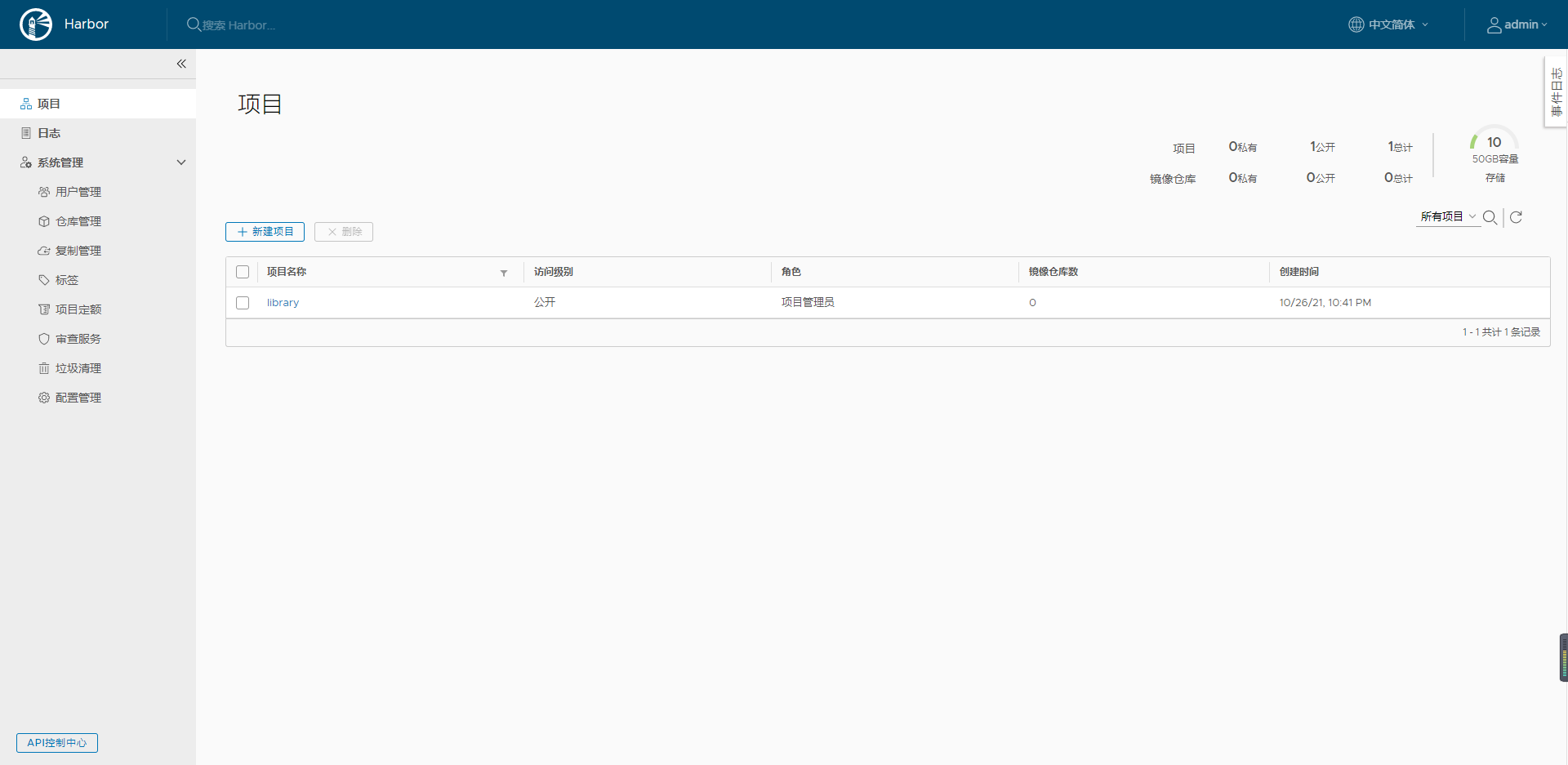

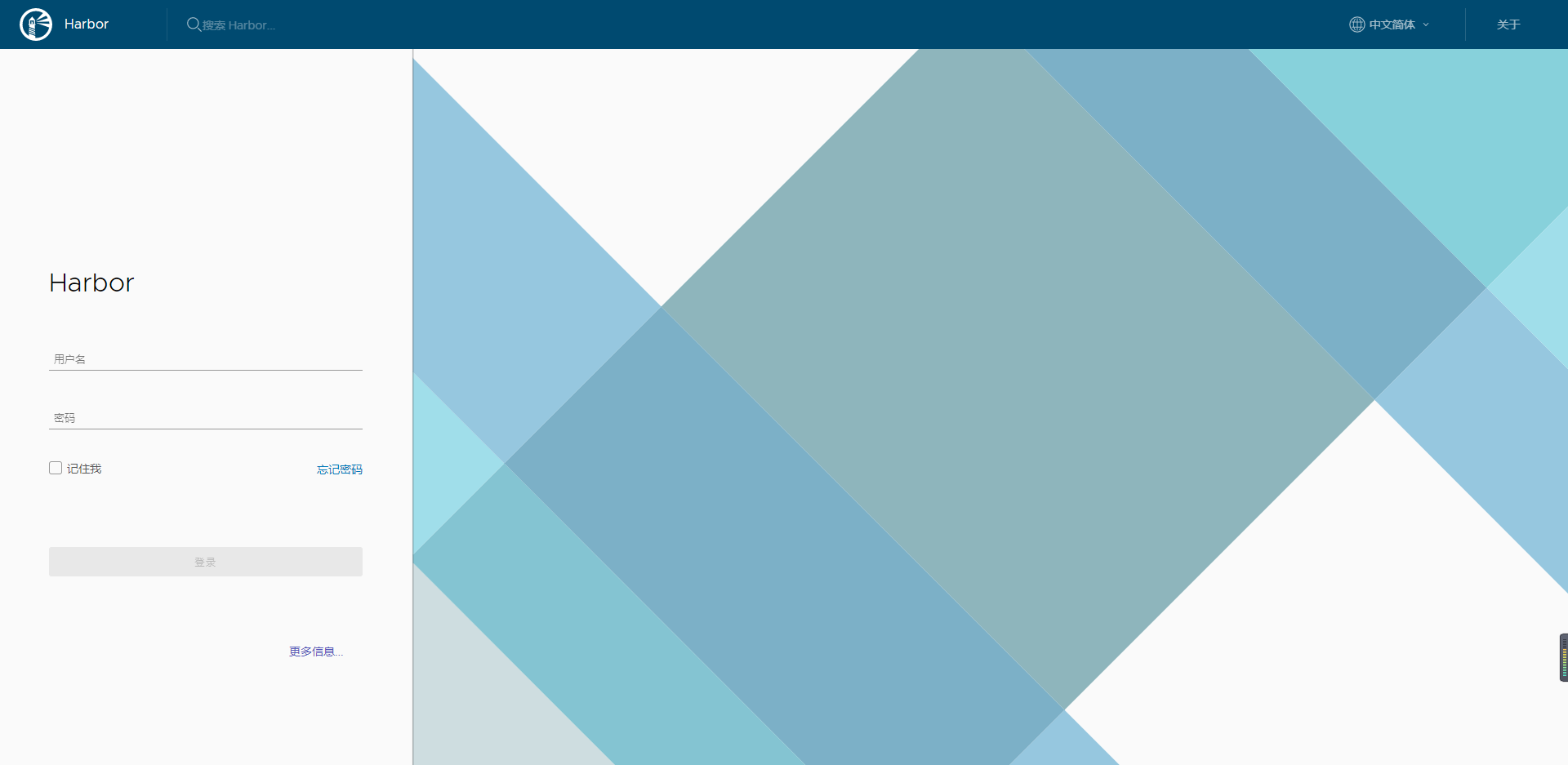

- 2.4 使用浏览器访问站点

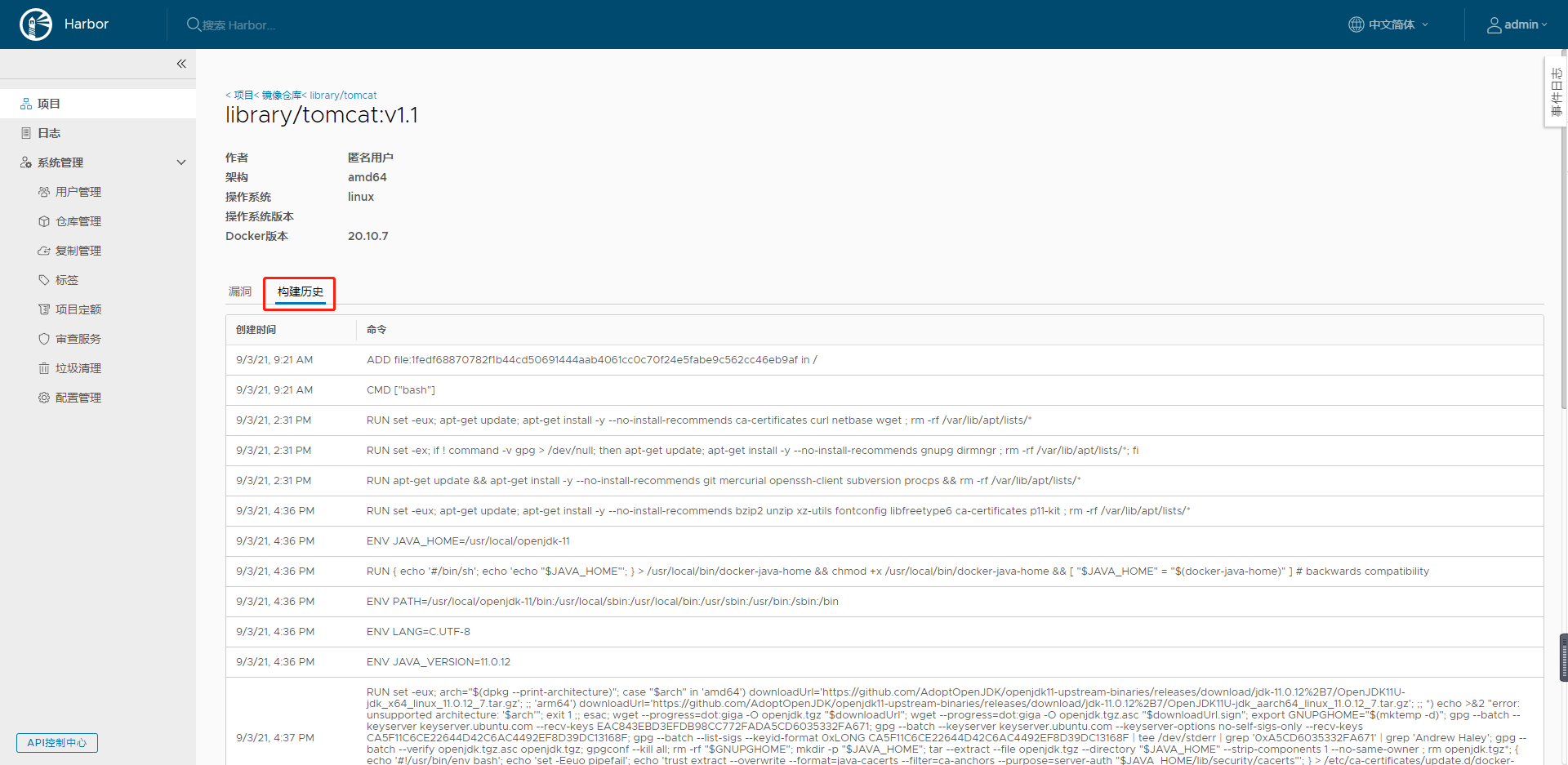

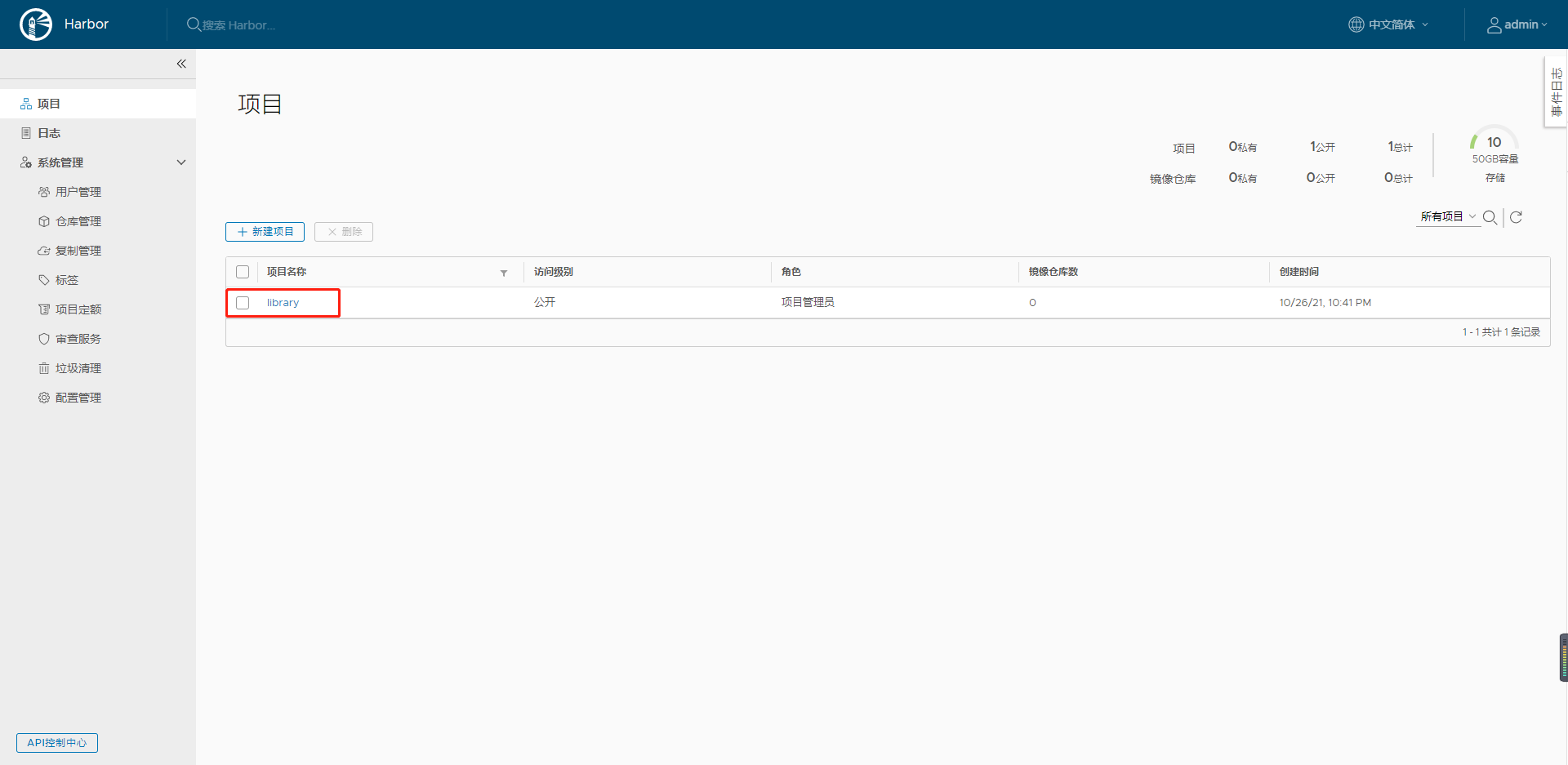

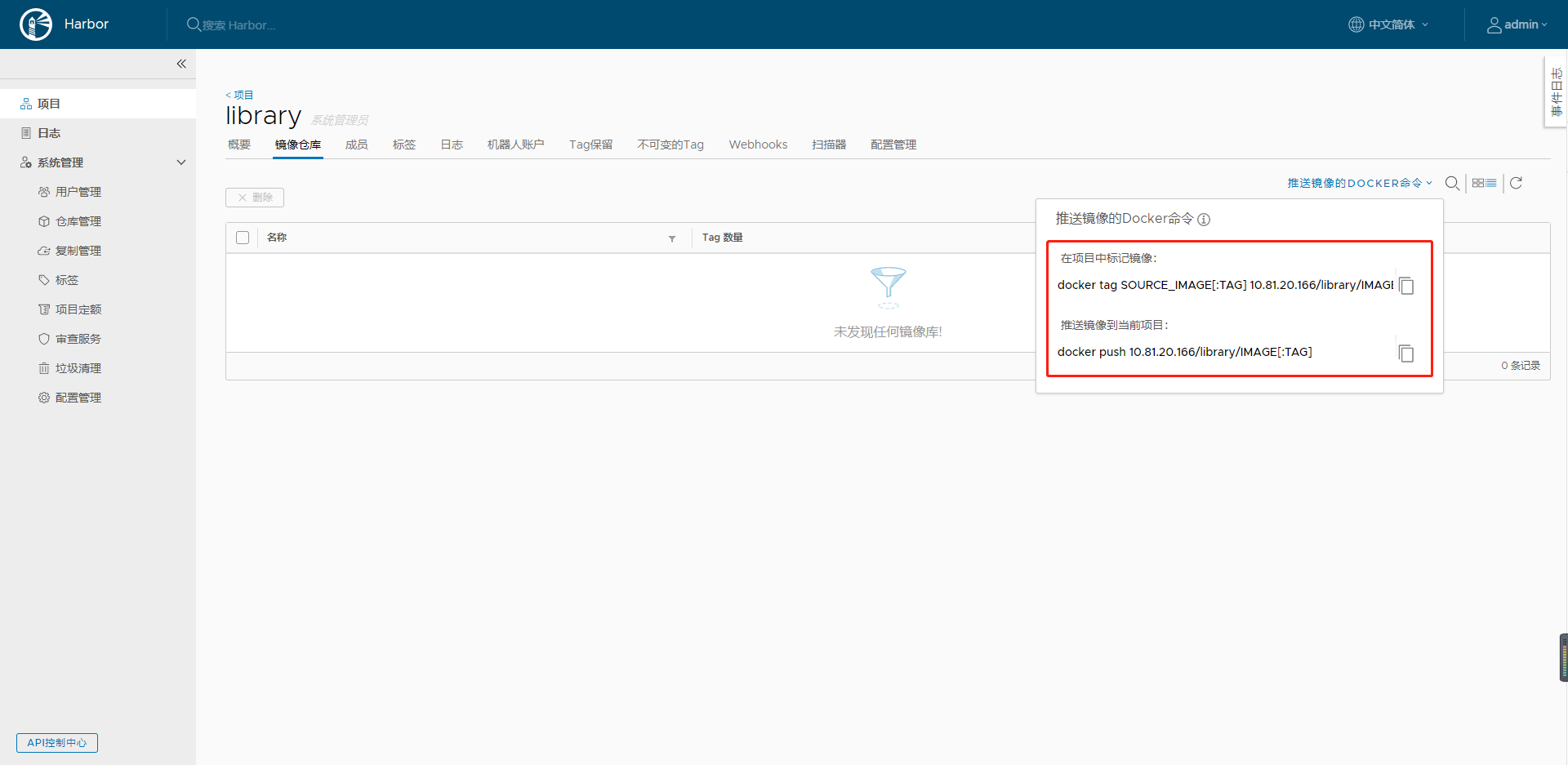

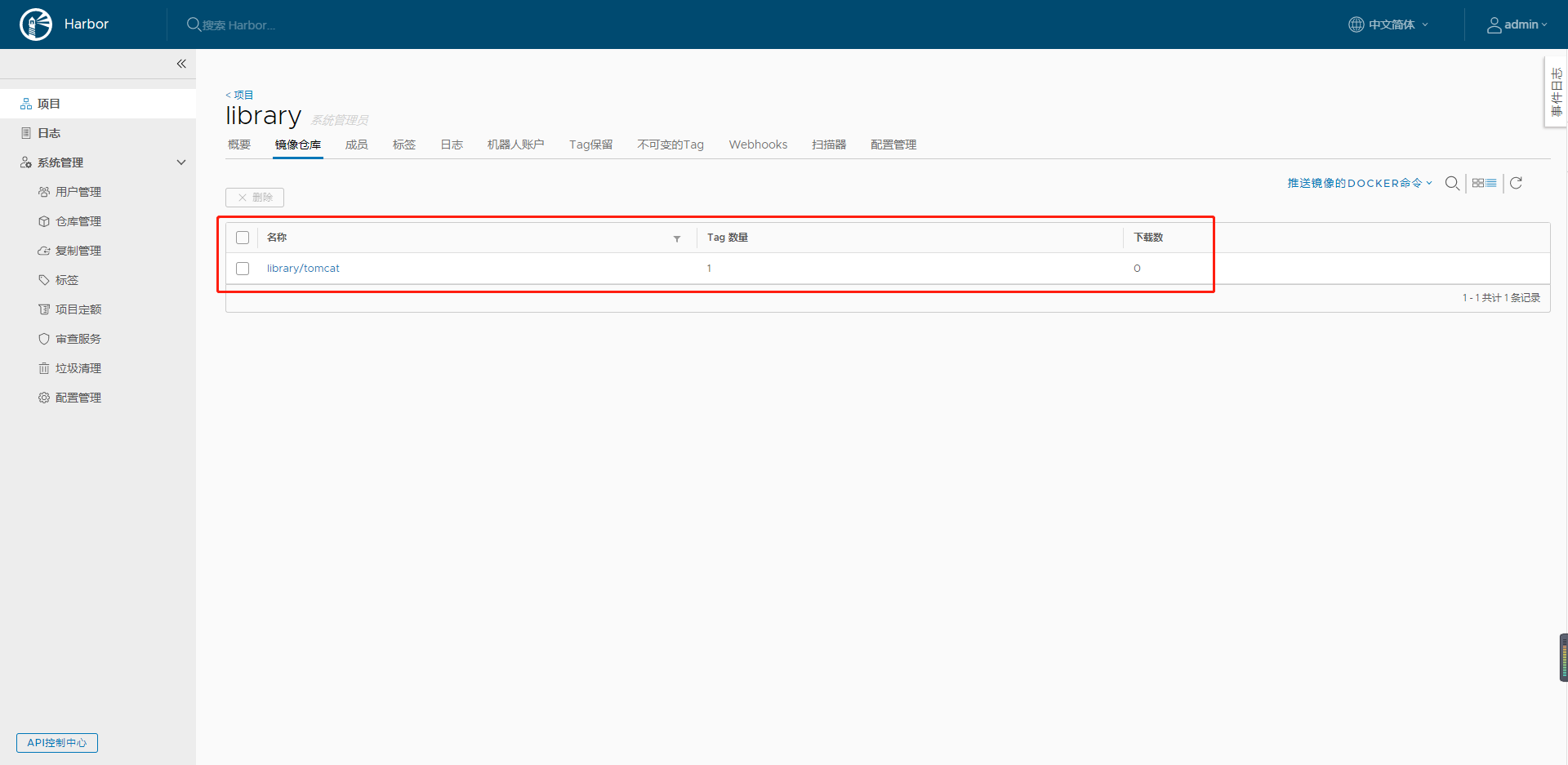

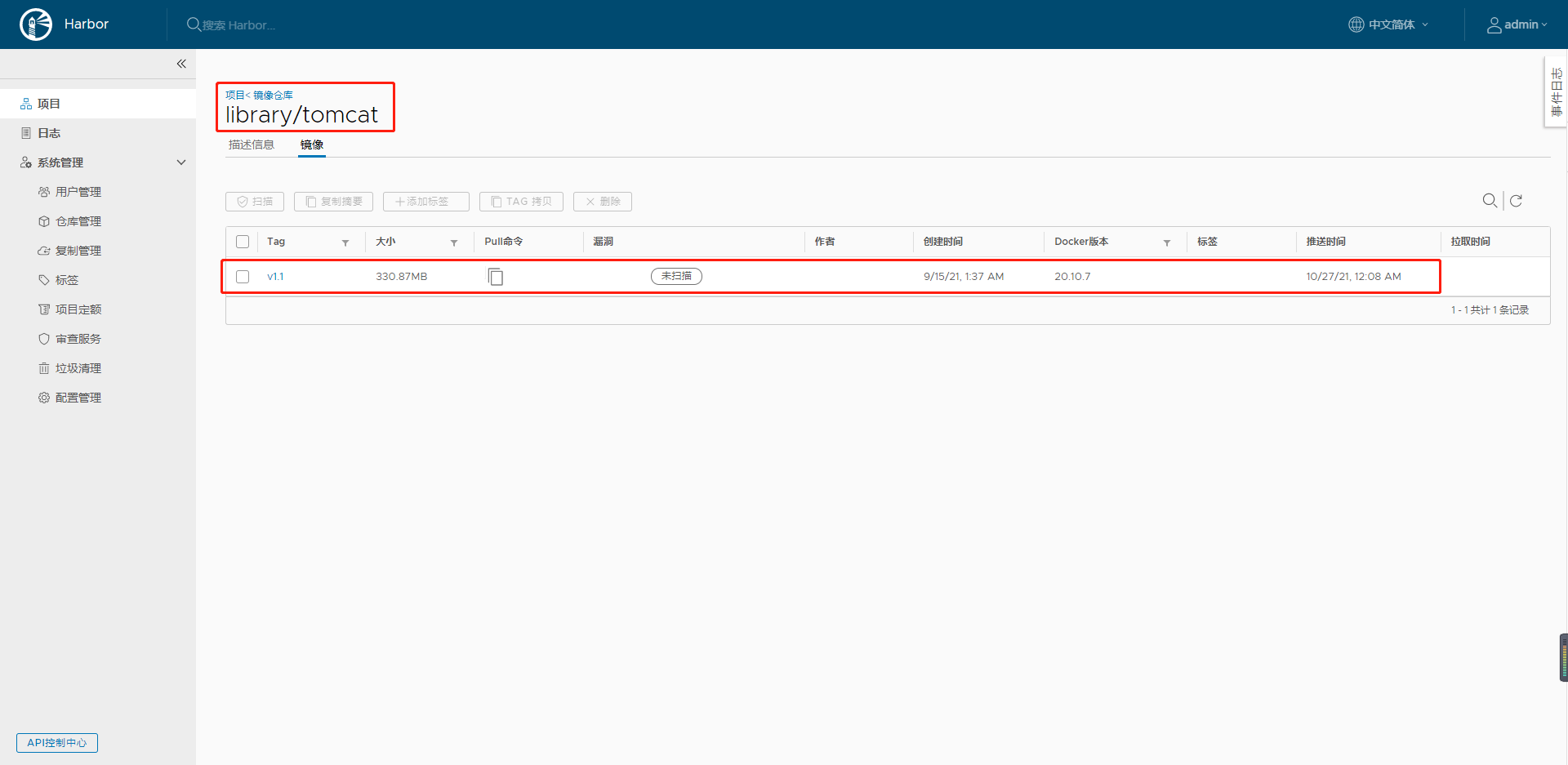

- 2.5 上传镜像至Harbor
1、安装底层版本要求
Python 2.7或更高版本
Docker 1.10或更高版本
Docker Compose 1.6.0或更高版本
Docker Compose下载URL：https://github.com/docker/compose/releases/
[root@localhost ~]# curl -L https://github.com/docker/compose/releases/download/1.24.1/docker-compose-$(uname -s)-$(uname -m) -o /usr/local/bin/docker-compose
[root@localhost ~]# chmod +x /usr/local/bin/docker-compose
检查部署底层要求版本是否符合
[root@localhost ~]# python3 --version
Python 3.6.8
[root@localhost ~]# docker --version
Docker version 20.10.8, build 3967b7d
[root@localhost ~]# docker-compose --version
docker-compose version 1.24.1, build 4667896b
2、安装Harbor
Harbor下载URL：https://github.com/goharbor/harbor/releases
2.1 校验文件
[root@localhost ~]# md5sum harbor-offline-installer-v1.10.1.tgz
e9ccca33e9a25b6b64425943c06f5fe6 harbor-offline-installer-v1.10.1.tgz
2.2 创建私钥文件、证书请求文件、证书文件
使用算法3DES生成大小为2048的秘钥文件KEY
[root@localhost harbor]# openssl genrsa -des
-des -des3
[root@localhost ~]# openssl genrsa -des3 -out server.key 2048
Generating RSA private key, 2048 bit long modulus (2 primes)
.....................................................................................................+++++
...............+++++
e is 65537 (0x010001)
Enter pass phrase for server.key:redhat
Verifying - Enter pass phrase for server.key:redhat
生成根证书请求文件CSR
[root@localhost ~]# openssl req -new -key server.key -out server.csr
Enter pass phrase for server.key:
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [XX]:CN
State or Province Name (full name) []:BJ
Locality Name (eg, city) [Default City]:BJ
Organization Name (eg, company) [Default Company Ltd]:AAA
Organizational Unit Name (eg, section) []:BBB
Common Name (eg, your name or your server's hostname) []:CCC
Email Address []:qq.comPlease enter the following 'extra' attributes
to be sent with your certificate request
A challenge password []:nsfocus #不需要修改密码，此处直接回车即可；
An optional company name []:nsfocus #不需要修改密码，此处直接回车即可；
备份私钥文件
[root@localhost ~]# cp server.key server.key.org
[root@localhost ~]# openssl rsa -in server.key.org -out server.key
Enter pass phrase for server.key.org:nsfocus
writing RSA key
生成根证书CA
[root@localhost ~]# openssl x509 -req -days 365 -in server.csr -signkey server.key -out server.crt
Signature ok
subject=C = CN, ST = BJ, L = BJ, O = AAA, OU = BBB, CN = CCC, emailAddress = qq.com
Getting Private key
参数详解：
- -new：表示生成一个新的证书签署请求；
- -x509：专用于生成CA自签证书；
- -key：指定生成证书用到的私钥文件；
- -out FILNAME：指定生成的证书的保存路径；
- -days：指定证书的有效期限，单位为day，默认是365天；
查看证书信息
[root@localhost harbor]# openssl x509 -in /data/cert/server.crt -noout -serial -dates -subject
serial=18C7ED02FEEEE804C2557DEA151EE2EE7748DA68
notBefore=Oct 26 13:57:09 2021 GMT
notAfter=Oct 26 13:57:09 2022 GMT
subject=C = CN, ST = BJ, L = BJ, O = AAA, OU = BBB, CN = CCC, emailAddress = qq.com
创建证书存放目录与修改权限
[root@localhost ~]# mkdir /data/cert -pv
[root@localhost ~]# mv server.* /data/cert/
[root@localhost ~]# chmod -R 777 /data/cert/
[root@localhost ~]# cd /data/cert/
[root@localhost cert]# ll
total 16
-rwxrwxrwx. 1 root root 1220 Oct 26 21:57 server.crt
-rwxrwxrwx. 1 root root 1005 Oct 26 21:52 server.csr
-rwxrwxrwx. 1 root root 1679 Oct 26 21:55 server.key
-rwxrwxrwx. 1 root root 1751 Oct 26 21:54 server.key.org
2.3 修改Harbor配置文件
[root@localhost cert]# cd harbor/
[root@localhost harbor]# ll
total 662128
drwxr-xr-x. 3 root root 20 Oct 26 22:36 common
-rw-r--r--. 1 root root 3398 Feb 10 2020 common.sh
-rw-r--r--. 1 root root 5346 Oct 26 22:50 docker-compose.yml
-rw-r--r--. 1 root root 677974489 Feb 10 2020 harbor.v1.10.1.tar.gz
-rw-r--r--. 1 root root 5878 Oct 26 22:50 harbor.yml
-rwxr-xr-x. 1 root root 2284 Feb 10 2020 install.sh
-rw-r--r--. 1 root root 11347 Feb 10 2020 LICENSE
-rwxr-xr-x. 1 root root 1749 Feb 10 2020 prepare
Harbor配置文件参数详解：
[root@localhost harbor]# vim harbor.yml
# Configuration file of Harbor
# Harbor的配置文件# The IP address or hostname to access admin UI and registry service.
# 配置访问管理UI和注册表服务的IP地址或主机名
# DO NOT use localhost or 127.0.0.1, because Harbor needs to be accessed by external clients.
# 不要使用localhost或127.0.0.1，因为Harbor需要被外部客户端访问
hostname: 10.81.20.166-----------------------------------------------------------------------
# http related config
# http相关配置
http:# port for http, default is 80. If https enabled, this port will redirect to https port# 若https端口开启，此端口重定向至https端口port: 80-----------------------------------------------------------------------
# https related config
# https相关配置
https:# https port for harbor, default is 443port: 443# The path of cert and key files for nginx# nginx的cert和key文件路径certificate: /data/cert/server.crtprivate_key: /data/cert/server.key# Uncomment external_url if you want to enable external proxy
# 取消注释external_url，如果你想启用外部代理
# And when it enabled the hostname will no longer used
# 当它启用时，主机名将不再使用
# external_url: https://reg.mydomain.com:8433# The initial password of Harbor admin
# Harbour admin的初始密码
# It only works in first time to install harbor
# 只有在第一次安装时有效
# Remember Change the admin password from UI after launching Harbor.
# 请记住在启动Harbor UI后更改admin登录密码
harbor_admin_password: Harbor12345-----------------------------------------------------------------------
# Harbor DB configuration
# Harbor数据库配置
database:# The password for the root user of Harbor DB. Change this before any production use.password: root123# The maximum number of connections in the idle connection pool. If it <=0, no idle connections are retained.max_idle_conns: 50# The maximum number of open connections to the database. If it <= 0, then there is no limit on the number of open connections.# Note: the default number of connections is 100 for postgres.max_open_conns: 100# The default data volume
# 默认数据卷路径
data_volume: /data# Harbor Storage settings by default is using /data dir on local filesystem
# Uncomment storage_service setting If you want to using external storage
# 设置外部存储则取消下面配置注释
# storage_service:# # ca_bundle is the path to the custom root ca certificate, which will be injected into the truststore
# 自定义CA根证书的路径
# # of registry's and chart repository's containers. This is usually needed when the user hosts a internal storage with self signed certificate.
# ca_bundle:# # storage backend, default is filesystem, options include filesystem, azure, gcs, s3, swift and oss
# 存储后端的文件系统选项有azure, gcs, s3, swift, oss
# # for more info about this configuration please refer
https://docs.docker.com/registry/configuration/
# filesystem:
# maxthreads: 100
# # set disable to true when you want to disable registry redirect
# 禁用注册表重定向需要将下面修改为true
# redirect:
# disabled: false-----------------------------------------------------------------------
# Clair configuration
clair:# The interval of clair updaters, the unit is hour, set to 0 to disable the updaters.# clair更新时间间隔，单位为小时，0表示禁用updaters_interval: 12jobservice:# Maximum number of job workers in job service# 最大工作连接数max_job_workers: 10notification:# Maximum retry count for webhook job# 最大重试次数webhook_job_max_retry: 10chart:# Change the value of absolute_url to enabled can enable absolute url in chart# 将absolute_url的值更改为enabled可以在图表中启用绝对urlabsolute_url: disabled-----------------------------------------------------------------------
# Log configurations
# 日志配置
log:# options are debug, info, warning, error, fatal# 选项有:调试、信息、警告、错误、致命level: info# configs for logs in local storage # 配置本地存储的日志local:# Log files are rotated log_rotate_count times before being removed. If count is 0, old versions are removed rather than rotated.# 日志文件在被删除之前会被旋转log_rotate_count次。如果count为0，则删除旧版本，而不是旋转旧版本。rotate_count: 50# Log files are rotated only if they grow bigger than log_rotate_size bytes. If size is followed by k, the size is assumed to be in kilobytes.# If the M is used, the size is in megabytes, and if G is used, the size is in gigabytes. So size 100, size 100k, size 100M and size 100G# are all valid.rotate_size: 200M# The directory on your host that store log# 存储日志的主机上的目录location: /var/log/harbor# Uncomment following lines to enable external syslog endpoint.# 取消注释以下行以启用外部syslog端点。# external_endpoint:# # protocol used to transmit log to external endpoint, options is tcp or udp# 用于向外部终端发送日志的协议，选项为TCP或udp# protocol: tcp# # The host of external endpoint# 外部端点的主机# host: localhost# # Port of external endpoint# 外部端点的端口# port: 5140#This attribute is for migrator to detect the version of the .cfg file, DO NOT MODIFY!
#这个属性是用来检测。cfg文件的版本的，不要修改!
_version: 1.10.0# Uncomment external_database if using external database.
# 如果使用外部数据库，取消注释external_database。
# external_database:
# harbor:
# host: harbor_db_host
# port: harbor_db_port
# db_name: harbor_db_name
# username: harbor_db_username
# password: harbor_db_password
# ssl_mode: disable
# max_idle_conns: 2
# max_open_conns: 0
# clair:
# host: clair_db_host
# port: clair_db_port
# db_name: clair_db_name
# username: clair_db_username
# password: clair_db_password
# ssl_mode: disable
# notary_signer:
# host: notary_signer_db_host
# port: notary_signer_db_port
# db_name: notary_signer_db_name
# username: notary_signer_db_username
# password: notary_signer_db_password
# ssl_mode: disable
# notary_server:
# host: notary_server_db_host
# port: notary_server_db_port
# db_name: notary_server_db_name
# username: notary_server_db_username
# password: notary_server_db_password
# ssl_mode: disable# Uncomment external_redis if using external Redis server
# 如果使用外部Redis服务器，取消注释external_redis
# external_redis:
# host: redis
# port: 6379
# password:
# # db_index 0 is for core, it's unchangeable
# registry_db_index: 1
# jobservice_db_index: 2
# chartmuseum_db_index: 3
# clair_db_index: 4# Uncomment uaa for trusting the certificate of uaa instance that is hosted via self-signed cert.
# 取消对uaa的注释，因为它信任通过自签名证书托管的uaa实例的证书。
# uaa:
# ca_file: /path/to/ca# Global proxy
# 全球代理
# Config http proxy for components, e.g. http://my.proxy.com:3128
# Components doesn't need to connect to each others via http proxy.
# Remove component from `components` array if want disable proxy
# for it. If you want use proxy for replication, MUST enable proxy
# for core and jobservice, and set `http_proxy` and `https_proxy`.
# Add domain to the `no_proxy` field, when you want disable proxy
# for some special registry.
proxy:http_proxy:https_proxy:# no_proxy endpoints will appended to 127.0.0.1,localhost,.local,.internal,log,db,redis,nginx,core,portal,postgresql,jobservice,registry,registryctl,clair,chartmuseum,notary-serverno_proxy:components:- core- jobservice- clair
执行安装
[root@localhost harbor]# ./install.sh [Step 0]: checking if docker is installed ...Note: docker version: 20.10.8[Step 1]: checking docker-compose is installed ...Note: docker-compose version: 1.24.1[Step 2]: loading Harbor images ...
Loaded image: goharbor/clair-adapter-photon:v1.0.1-v1.10.1
Loaded image: goharbor/harbor-jobservice:v1.10.1
Loaded image: goharbor/redis-photon:v1.10.1
Loaded image: goharbor/notary-server-photon:v0.6.1-v1.10.1
Loaded image: goharbor/clair-photon:v2.1.1-v1.10.1
Loaded image: goharbor/harbor-log:v1.10.1
Loaded image: goharbor/registry-photon:v2.7.1-patch-2819-2553-v1.10.1
Loaded image: goharbor/notary-signer-photon:v0.6.1-v1.10.1
Loaded image: goharbor/chartmuseum-photon:v0.9.0-v1.10.1
Loaded image: goharbor/harbor-registryctl:v1.10.1
Loaded image: goharbor/nginx-photon:v1.10.1
Loaded image: goharbor/harbor-migrator:v1.10.1
Loaded image: goharbor/prepare:v1.10.1
Loaded image: goharbor/harbor-portal:v1.10.1
Loaded image: goharbor/harbor-core:v1.10.1
Loaded image: goharbor/harbor-db:v1.10.1[Step 3]: preparing environment ...[Step 4]: preparing harbor configs ...
prepare base dir is set to /root/harbor
Clearing the configuration file: /config/log/logrotate.conf
Clearing the configuration file: /config/log/rsyslog_docker.conf
Clearing the configuration file: /config/nginx/nginx.conf
Clearing the configuration file: /config/core/env
Clearing the configuration file: /config/core/app.conf
Clearing the configuration file: /config/registry/config.yml
Clearing the configuration file: /config/registry/root.crt
Clearing the configuration file: /config/registryctl/env
Clearing the configuration file: /config/registryctl/config.yml
Clearing the configuration file: /config/db/env
Clearing the configuration file: /config/jobservice/env
Clearing the configuration file: /config/jobservice/config.yml
Generated configuration file: /config/log/logrotate.conf
Generated configuration file: /config/log/rsyslog_docker.conf
Generated configuration file: /config/nginx/nginx.conf
Generated configuration file: /config/core/env
Generated configuration file: /config/core/app.conf
Generated configuration file: /config/registry/config.yml
Generated configuration file: /config/registryctl/env
Generated configuration file: /config/db/env
Generated configuration file: /config/jobservice/env
Generated configuration file: /config/jobservice/config.yml
loaded secret from file: /secret/keys/secretkey
Generated configuration file: /compose_location/docker-compose.yml
Clean up the input dirNote: stopping existing Harbor instance ...
Stopping harbor-jobservice ... done
Stopping harbor-log ... done
Removing harbor-jobservice ... done
Removing nginx ... done
Removing harbor-core ... done
Removing registry ... done
Removing registryctl ... done
Removing harbor-db ... done
Removing harbor-portal ... done
Removing redis ... done
Removing harbor-log ... done
Removing network harbor_harbor[Step 5]: starting Harbor ...
Creating network "harbor_harbor" with the default driver
Creating harbor-log ... done
Creating redis ... done
Creating harbor-portal ... done
Creating registryctl ... done
Creating harbor-db ... done
Creating registry ... done
Creating harbor-core ... done
Creating nginx ... done
Creating harbor-jobservice ... done
✔ ----Harbor has been installed and started successfully.----
检测安装结果
[root@localhost harbor]# docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
2de6fb4348a2 goharbor/harbor-jobservice:v1.10.1 "/harbor/harbor_jobs…" 46 minutes ago Up 46 minutes (healthy) harbor-jobservice
3d39a150124f goharbor/nginx-photon:v1.10.1 "nginx -g 'daemon of…" 46 minutes ago Up 46 minutes (healthy) 0.0.0.0:8003->8080/tcp, :::8003->8080/tcp, 0.0.0.0:443->8443/tcp, :::443->8443/tcp nginx
c4cb2d9fc8c8 goharbor/harbor-core:v1.10.1 "/harbor/harbor_core" 46 minutes ago Up 46 minutes (healthy) harbor-core
ab1601c5b8a9 goharbor/registry-photon:v2.7.1-patch-2819-2553-v1.10.1 "/home/harbor/entryp…" 46 minutes ago Up 46 minutes (healthy) 5000/tcp registry
b86b53dbe902 goharbor/harbor-registryctl:v1.10.1 "/home/harbor/start.…" 46 minutes ago Up 46 minutes (healthy) registryctl
5aaa8801f32d goharbor/harbor-db:v1.10.1 "/docker-entrypoint.…" 46 minutes ago Up 46 minutes (healthy) 5432/tcp harbor-db
7b906e109223 goharbor/harbor-portal:v1.10.1 "nginx -g 'daemon of…" 46 minutes ago Up 46 minutes (healthy) 8080/tcp harbor-portal
cd729f5779c5 goharbor/redis-photon:v1.10.1 "redis-server /etc/r…" 46 minutes ago Up 46 minutes (healthy) 6379/tcp redis
0e0c6c2cb8d0 goharbor/harbor-log:v1.10.1 "/bin/sh -c /usr/loc…" 46 minutes ago Up 46 minutes (healthy) 127.0.0.1:1514->10514/tcp harbor-log
2.4 使用浏览器访问站点
bashhttps://10.81.20.166
登录账户：admin/Harbor12345（若配置文件修改则使用自定义密码登录）
登录成功界面如下：
2.5 上传镜像至Harbor
点击某个需要上传的项目名称
点击[镜像仓库]，可以查看到“推送镜像的docker命令”
可以直接复制并修改此两条命令即可
指定镜像仓库地址
[root@localhost harbor]# cat /etc/docker/daemon.json
{"insecure-registries": ["10.81.20.166"]
}#重启docker服务
[root@localhost harbor]# systemctl restart docker
确保下面的容器是否开启成功，部分容器重启服务不会自启动，导致服务端口不可达
[root@localhost harbor]# docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
78db75f19def goharbor/harbor-jobservice:v1.10.1 "/harbor/harbor_jobs…" 4 minutes ago Up 4 minutes (healthy) harbor-jobservice
5c7a0713fcba goharbor/nginx-photon:v1.10.1 "nginx -g 'daemon of…" 4 minutes ago Up 4 minutes (healthy) 0.0.0.0:8003->8080/tcp, :::8003->8080/tcp, 0.0.0.0:443->8443/tcp, :::443->8443/tcp nginx
38f93397e143 goharbor/harbor-core:v1.10.1 "/harbor/harbor_core" 4 minutes ago Up 4 minutes (healthy) harbor-core
b74d02970546 goharbor/registry-photon:v2.7.1-patch-2819-2553-v1.10.1 "/home/harbor/entryp…" 4 minutes ago Up 4 minutes (healthy) 5000/tcp registry
245f015d8c91 goharbor/harbor-db:v1.10.1 "/docker-entrypoint.…" 4 minutes ago Up 4 minutes (healthy) 5432/tcp harbor-db
46bbe79a972e goharbor/harbor-registryctl:v1.10.1 "/home/harbor/start.…" 4 minutes ago Up 4 minutes (healthy) registryctl
a61ec9d2dcd7 goharbor/redis-photon:v1.10.1 "redis-server /etc/r…" 4 minutes ago Up 4 minutes (healthy) 6379/tcp redis
6982dc6079c2 goharbor/harbor-portal:v1.10.1 "nginx -g 'daemon of…" 4 minutes ago Up 4 minutes (healthy) 8080/tcp harbor-portal
0e52d040fff9 goharbor/harbor-log:v1.10.1 "/bin/sh -c /usr/loc…" 4 minutes ago Up 4 minutes (healthy) 127.0.0.1:1514->10514/tcp
未验证账户进行推送，产生报错
[root@localhost harbor]# docker push 10.81.20.166/library/tomcat:v1.1
The push refers to repository [10.81.20.166/library/tomcat]
4831bcd1167f: Preparing
977cfcbcf0fa: Preparing
4e4de253c94d: Preparing
3891808a925b: Preparing
d402f4f1b906: Preparing
00ef5416d927: Waiting
8555e663f65b: Waiting
d00da3cd7763: Waiting
4e61e63529c2: Waiting
799760671c38: Waiting
denied: requested access to the resource is denied
验证登录账户
[root@localhost harbor]# docker login 10.81.20.166
Username: admin
Password: Harbor12345
WARNING! Your password will be stored unencrypted in /root/.docker/config.json.
Configure a credential helper to remove this warning. See
https://docs.docker.com/engine/reference/commandline/login/#credentials-storeLogin Succeeded
验证成功后重新推送镜像文件
[root@localhost harbor]# docker push 10.81.20.166/library/tomcat:v1.1
The push refers to repository [10.81.20.166/library/tomcat]
4831bcd1167f: Pushed
977cfcbcf0fa: Pushed
4e4de253c94d: Pushed
3891808a925b: Pushed
d402f4f1b906: Pushed
00ef5416d927: Pushed
8555e663f65b: Pushed
d00da3cd7763: Pushed
4e61e63529c2: Pushed
799760671c38: Pushed
v1.1: digest: sha256:709c112a87273828f4df9caa99540a1d4f59891455cdfff7ec0ec99edc49f59b size: 2422
查看镜像推送结果
打开镜像具体信息
查看对应的DockerFile
