前言

Redis 6.0 中一个重大的改变就是引入了多线程IO。我们都知道 Redis 基于内存操作，几乎不存在 CPU 成为瓶颈的情况， 它主要受限于内存和网络。从 Redis 自身角度来说，读写网络的 read/write 系统调用占用了 Redis 执行期间大部分 CPU 时间，瓶颈其实主要在于网络的 IO 消耗。基于这种情况，Redis 优化的方向在于提高网络 IO 性能，而一个简单有效的方法就是使用多线程任务分摊 Redis 同步 IO 读写的负荷

1. Redis 多线程模型

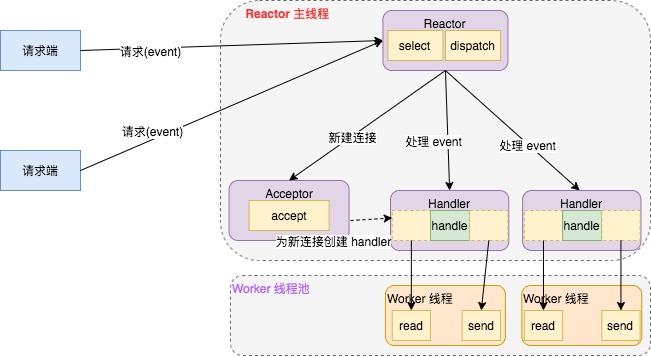

Redis 6.0 版本以前的线程模型为典型的 单 Reactor 单线程 ，但是其多线程模型却与标准的 单 Reactor 多线程 不太相同，区别在于 Redis 多线程模型不是把业务逻辑处理交给子线程，而是把对网络数据的读写交给子线程处理，业务逻辑仍然由主线程完成

2. Redis 多线程源码分析

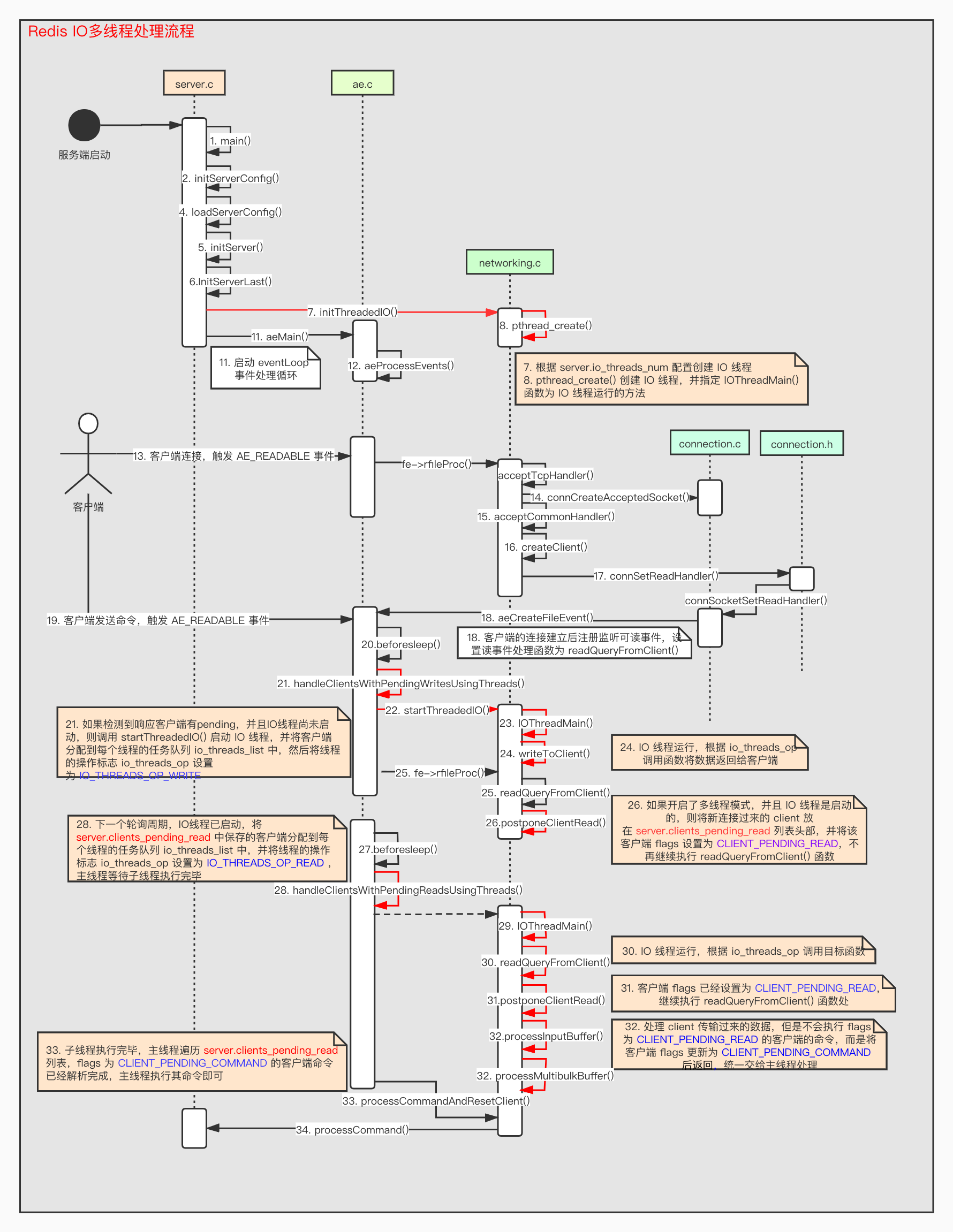

上图为 Redis 多线程相关的流程图，该图根据 Redis 6.0 源码阅读笔记(1)-Redis 服务端启动及命令执行 示意图适当增减而来，读者如有不理解的地方可以前往查看原文。以下为 Redis 多线程的源码分析

2.1 IO 线程的初始化

1. Redis 服务端启动的时候会有 IO 线程的初始化步骤，其触发函数为 server.c#InitServerLast()

   void InitServerLast() {bioInit();initThreadedIO();set_jemalloc_bg_thread(server.jemalloc_bg_thread);server.initial_memory_usage = zmalloc_used_memory();
   }


2. networking.c#initThreadedIO() 函数负责初始化 IO 线程的数据结构，是整个 IO 线程初始化的核心，其涉及的重要属性及步骤如下

   重要属性：

   1. io_threads_active 标志 IO 线程的激活状态，默认为 0 ，也就是非激活态
   2. server.io_threads_num 配置文件中配置的 IO 线程数量，为 1 则只有主线程处理 IO ，不需要再创建线程，大于 IO_THREADS_MAX_NUM（128）则认为配置异常，退出程序
   3. io_threads_list 数组，数组元素为 list 列表，每个 IO 线程需要处理的 client 都放在数组对应下标的 list 中
   4. io_threads_pending 数组，记录每个 IO 线程待处理的 client 数量

   处理步骤：

   1. 调用函数 listCreate() 为每个 IO 线程创建任务列表
   2. 初始化 IO 线程互斥对象，初始化 IO 线程当前未处理的任务数量为 0
   3. pthread_create() 函数设置 IO 线程运行时处理的函数为 IOThreadMain()

   #define IO_THREADS_MAX_NUM 128
   list *io_threads_list[IO_THREADS_MAX_NUM];void initThreadedIO(void) {io_threads_active = 0; /* We start with threads not active. *//* Don't spawn any thread if the user selected a single thread:* we'll handle I/O directly from the main thread. */if (server.io_threads_num == 1) return;if (server.io_threads_num > IO_THREADS_MAX_NUM) {serverLog(LL_WARNING,"Fatal: too many I/O threads configured. ""The maximum number is %d.", IO_THREADS_MAX_NUM);exit(1);}/* Spawn and initialize the I/O threads. */for (int i = 0; i < server.io_threads_num; i++) {/* Things we do for all the threads including the main thread. */io_threads_list[i] = listCreate();if (i == 0) continue; /* Thread 0 is the main thread. *//* Things we do only for the additional threads. */pthread_t tid;pthread_mutex_init(&io_threads_mutex[i],NULL);io_threads_pending[i] = 0;pthread_mutex_lock(&io_threads_mutex[i]); /* Thread will be stopped. */if (pthread_create(&tid,NULL,IOThreadMain,(void*)(long)i) != 0) {serverLog(LL_WARNING,"Fatal: Can't initialize IO thread.");exit(1);}io_threads[i] = tid;}
   }


2.2 IO 线程的启动

1. 即便用户配置了 IO 多线程，Redis 在实际的处理中也不一定就会启用多线程处理网络 IO，而是根据系统状态动态地调整。上文已经提到 io_threads_active 标志 IO 线程的激活状态，默认 IO 线程为未激活的状态，追踪该变量即可知道 IO 线程启动的位置。我们先看看 server.c#beforeSleep() 函数， 在 Redis 6.0 源码阅读笔记(1)-Redis 服务端启动及命令执行 一文中已经提到 beforeSleep() 函数实际是在每次事件处理之前调用的函数，其内部处理的逻辑比较多，本文关注的主要有以下几个

   1. handleClientsWithPendingReadsUsingThreads() 函数使用 IO 线程处理等待读取数据的客户端
   2. handleClientsWithPendingWritesUsingThreads() 函数使用 IO 线程处理等待响应的客户端

   void beforeSleep(struct aeEventLoop *eventLoop) {UNUSED(eventLoop);/* Just call a subset of vital functions in case we are re-entering* the event loop from processEventsWhileBlocked(). Note that in this* case we keep track of the number of events we are processing, since* processEventsWhileBlocked() wants to stop ASAP if there are no longer* events to handle. */if (ProcessingEventsWhileBlocked) {uint64_t processed = 0;processed += handleClientsWithPendingReadsUsingThreads();processed += tlsProcessPendingData();processed += handleClientsWithPendingWrites();processed += freeClientsInAsyncFreeQueue();server.events_processed_while_blocked += processed;return;}/* Handle precise timeouts of blocked clients. */handleBlockedClientsTimeout();/* We should handle pending reads clients ASAP after event loop. */handleClientsWithPendingReadsUsingThreads();/* Handle TLS pending data. (must be done before flushAppendOnlyFile) */tlsProcessPendingData();/* If tls still has pending unread data don't sleep at all. */aeSetDontWait(server.el, tlsHasPendingData());/* Call the Redis Cluster before sleep function. Note that this function* may change the state of Redis Cluster (from ok to fail or vice versa),* so it's a good idea to call it before serving the unblocked clients* later in this function. */if (server.cluster_enabled) clusterBeforeSleep();/* Run a fast expire cycle (the called function will return* ASAP if a fast cycle is not needed). */if (server.active_expire_enabled && server.masterhost == NULL)activeExpireCycle(ACTIVE_EXPIRE_CYCLE_FAST);/* Unblock all the clients blocked for synchronous replication* in WAIT. */if (listLength(server.clients_waiting_acks))processClientsWaitingReplicas();/* Check if there are clients unblocked by modules that implement* blocking commands. */if (moduleCount()) moduleHandleBlockedClients();/* Try to process pending commands for clients that were just unblocked. */if (listLength(server.unblocked_clients))processUnblockedClients();/* Send all the slaves an ACK request if at least one client blocked* during the previous event loop iteration. Note that we do this after* processUnblockedClients(), so if there are multiple pipelined WAITs* and the just unblocked WAIT gets blocked again, we don't have to wait* a server cron cycle in absence of other event loop events. See #6623. */if (server.get_ack_from_slaves) {robj *argv[3];argv[0] = createStringObject("REPLCONF",8);argv[1] = createStringObject("GETACK",6);argv[2] = createStringObject("*",1); /* Not used argument. */replicationFeedSlaves(server.slaves, server.slaveseldb, argv, 3);decrRefCount(argv[0]);decrRefCount(argv[1]);decrRefCount(argv[2]);server.get_ack_from_slaves = 0;}/* Send the invalidation messages to clients participating to the* client side caching protocol in broadcasting (BCAST) mode. */trackingBroadcastInvalidationMessages();/* Write the AOF buffer on disk */flushAppendOnlyFile(0);/* Handle writes with pending output buffers. */handleClientsWithPendingWritesUsingThreads();/* Close clients that need to be closed asynchronous */freeClientsInAsyncFreeQueue();/* Before we are going to sleep, let the threads access the dataset by* releasing the GIL. Redis main thread will not touch anything at this* time. */if (moduleCount()) moduleReleaseGIL();
   }


2. networking.c#handleClientsWithPendingWritesUsingThreads() 函数源码如下，其处理流程较为重要

   1. 首先查看数组 server.clients_pending_write 长度是否为 0，为 0 则没有在等待响应的客户端，不需要使用 IO 线程处理。 Redis 使用了server.clients_pending_write 全局数组来存放等待响应的客户端，另一个数组 server.clients_pending_read 则存放等待读取数据的客户端
   2. server.io_threads_num 配置的线程数为 1 或者 stopThreadedIOIfNeeded() 函数返回 true，说明用户没有配置多线程 IO 或者系统动态判断当前不需要使用多线程 IO，则直接调用 handleClientsWithPendingWrites() 函数完成客户端响应
   3. 接下来判断 io_threads_active 全局变量不为 1，说明 IO 线程还没有激活，则调用 startThreadedIO() 函数启动 IO 线程
   4. 将数组 server.clients_pending_write 中存放的待响应客户端按照server.io_threads_num 取余分配到各个 IO 线程的任务列表 io_threads_list[target_id] 中
   5. 设置 io_threads_op 全局 IO 操作标志为 IO_THREADS_OP_WRITE，则 IO 线程都处理写任务，并更新io_threads_pending 数组。这部分暂不展开，下文详细分析
   6. 主线程空循环，等待 IO 线程处理任务完毕。这部分逻辑主要靠io_threads_pending 数组记录每个 IO 线程待处理的 client 数量来判断，如果各个 IO 线程待处理的 client 数量相加为 0，则任务处理完毕，主线程跳出循环
   7. 最后如果还有待处理的客户端则继续处理，处理完毕清空 server.clients_pending_write 数组

   int handleClientsWithPendingWritesUsingThreads(void) {int processed = listLength(server.clients_pending_write);if (processed == 0) return 0; /* Return ASAP if there are no clients. *//* If I/O threads are disabled or we have few clients to serve, don't* use I/O threads, but thejboring synchronous code. */if (server.io_threads_num == 1 || stopThreadedIOIfNeeded()) {return handleClientsWithPendingWrites();}/* Start threads if needed. */if (!io_threads_active) startThreadedIO();if (tio_debug) printf("%d TOTAL WRITE pending clients\n", processed);/* Distribute the clients across N different lists. */listIter li;listNode *ln;listRewind(server.clients_pending_write,&li);int item_id = 0;while((ln = listNext(&li))) {client *c = listNodeValue(ln);c->flags &= ~CLIENT_PENDING_WRITE;int target_id = item_id % server.io_threads_num;listAddNodeTail(io_threads_list[target_id],c);item_id++;}/* Give the start condition to the waiting threads, by setting the* start condition atomic var. */io_threads_op = IO_THREADS_OP_WRITE;for (int j = 1; j < server.io_threads_num; j++) {int count = listLength(io_threads_list[j]);io_threads_pending[j] = count;}/* Also use the main thread to process a slice of clients. */listRewind(io_threads_list[0],&li);while((ln = listNext(&li))) {client *c = listNodeValue(ln);writeToClient(c,0);}listEmpty(io_threads_list[0]);/* Wait for all the other threads to end their work. */while(1) {unsigned long pending = 0;for (int j = 1; j < server.io_threads_num; j++)pending += io_threads_pending[j];if (pending == 0) break;}if (tio_debug) printf("I/O WRITE All threads finshed\n");/* Run the list of clients again to install the write handler where* needed. */listRewind(server.clients_pending_write,&li);while((ln = listNext(&li))) {client *c = listNodeValue(ln);/* Install the write handler if there are pending writes in some* of the clients. */if (clientHasPendingReplies(c) &&connSetWriteHandler(c->conn, sendReplyToClient) == AE_ERR){freeClientAsync(c);}}listEmpty(server.clients_pending_write);return processed;
   }


3. networking.c#startThreadedIO() 函数较为简单，可以看到其逻辑主要为以下几步：

   1. 首先将创建 IO 线程时锁住的互斥对象解锁，也就是使 IO 线程得以运行
   2. 将全局变量io_threads_active 赋值为 1 ，标志 IO 线程已经激活

   void startThreadedIO(void) {if (tio_debug) { printf("S"); fflush(stdout); }if (tio_debug) printf("--- STARTING THREADED IO ---\n");serverAssert(io_threads_active == 0);for (int j = 1; j < server.io_threads_num; j++)pthread_mutex_unlock(&io_threads_mutex[j]);io_threads_active = 1;
   }


2.3 IO 线程处理读任务的流程

1. IO 线程处理网络读取的主要流程在 networking.c#readQueryFromClient()函数中，该函数在 Redis 6.0 源码阅读笔记(1)-Redis 服务端启动及命令执行 一文中已经提到过，主要负责解析客户端传输过来的命令及参数，其和多线程 IO 相关的部分为调用 networking.c#postponeClientRead() 函数将客户端放入等待队列中。需注意如果客户端成功入队，则 readQueryFromClient() 函数不再继续执行，直接 return 了

   void readQueryFromClient(connection *conn) {client *c = connGetPrivateData(conn);int nread, readlen;size_t qblen;/* Check if we want to read from the client later when exiting from* the event loop. This is the case if threaded I/O is enabled. */if (postponeClientRead(c)) return;......
   }

2. networking.c#postponeClientRead() 函数需要判断多种条件才能决定客户端是否能入队，具体如下：

   1. io_threads_active 必须为 1 ，也就是 IO 线程必须是激活状态
   2. server.io_threads_do_reads 用户配置必须是运行使用 IO 线程读取数据
   3. 客户端的标志位 flags 必须不是 CLIENT_MASTER、CLIENT_SLAVE、CLIENT_PENDING_READ
   4. 以上条件都满足，则将客户端的 flags 标志位设置为CLIENT_PENDING_READ，并将其入队到 server.clients_pending_read 数组

   int postponeClientRead(client *c) {if (io_threads_active &&server.io_threads_do_reads &&!ProcessingEventsWhileBlocked &&!(c->flags & (CLIENT_MASTER|CLIENT_SLAVE|CLIENT_PENDING_READ))){c->flags |= CLIENT_PENDING_READ;listAddNodeHead(server.clients_pending_read,c);return 1;} else {return 0;}
   }


3. 至此客户端任务已经入队，其处理则由beforeSleep() 函数调用networking.c#handleClientsWithPendingReadsUsingThreads() 完成，可以看到这里的处理与多线程 IO 写数据响应客户端是类似的

   1. 先判断 IO 线程激活状态和用户配置是否允许使用 IO线程处理读数据操作
   2. 再判断server.clients_pending_read数组中待处理的客户端数量是否为 0
   3. 取出server.clients_pending_read数组中的客户端，取余分配到各个 IO 线程的任务列表 io_threads_list[target_id]
   4. 将全局的线程操作标志 io_threads_op 设置为IO_THREADS_OP_READ，也就是 IO 线程都处理读任务，并更新io_threads_pending 数组
   5. 主线程自己也处理 IO 读任务，完成后开启空循环等待 IO 线程处理任务完毕
   6. 最后再次处理server.clients_pending_read数组中的客户端，如果客户端 flags 标志位为 CLIENT_PENDING_COMMAND（也就是 IO 线程把客户端的命令及参数解析完成），则调用 processCommandAndResetClient() 函数直接执行命令，否则调用 processInputBuffer() 函数继续解析客户端的命令

   int handleClientsWithPendingReadsUsingThreads(void) {if (!io_threads_active || !server.io_threads_do_reads) return 0;int processed = listLength(server.clients_pending_read);if (processed == 0) return 0;if (tio_debug) printf("%d TOTAL READ pending clients\n", processed);/* Distribute the clients across N different lists. */listIter li;listNode *ln;listRewind(server.clients_pending_read,&li);int item_id = 0;while((ln = listNext(&li))) {client *c = listNodeValue(ln);int target_id = item_id % server.io_threads_num;listAddNodeTail(io_threads_list[target_id],c);item_id++;}/* Give the start condition to the waiting threads, by setting the* start condition atomic var. */io_threads_op = IO_THREADS_OP_READ;for (int j = 1; j < server.io_threads_num; j++) {int count = listLength(io_threads_list[j]);io_threads_pending[j] = count;}/* Also use the main thread to process a slice of clients. */listRewind(io_threads_list[0],&li);while((ln = listNext(&li))) {client *c = listNodeValue(ln);readQueryFromClient(c->conn);}listEmpty(io_threads_list[0]);/* Wait for all the other threads to end their work. */while(1) {unsigned long pending = 0;for (int j = 1; j < server.io_threads_num; j++)pending += io_threads_pending[j];if (pending == 0) break;}if (tio_debug) printf("I/O READ All threads finshed\n");/* Run the list of clients again to process the new buffers. */while(listLength(server.clients_pending_read)) {ln = listFirst(server.clients_pending_read);client *c = listNodeValue(ln);c->flags &= ~CLIENT_PENDING_READ;listDelNode(server.clients_pending_read,ln);if (c->flags & CLIENT_PENDING_COMMAND) {c->flags &= ~CLIENT_PENDING_COMMAND;if (processCommandAndResetClient(c) == C_ERR) {/* If the client is no longer valid, we avoid* processing the client later. So we just go* to the next. */continue;}}processInputBuffer(c);}return processed;
   }


4. IO 线程处理读写的核心在其初始化时设置的 IOThreadMain() 函数，其处理主要分为以下几个步骤

   1. 开启空循环扫描 io_threads_pending 数组，如果找到属于当前线程的那个下标在数组中的值不为 0 则跳出扫描
   2. 再次检查当前线程待处理客户端的数量，如果为 0 ，则当前线程停止运行
   3. 从 io_threads_list 列表数组中取出当前线程待处理的 client 的列表，根据 io_threads_op 全局标志位决定对这些 client 做对应的处理，比如 IO_THREADS_OP_READ 读操作则调用 readQueryFromClient() 函数继续处理
   4. 处理完毕后，清空 io_threads_list 列表数组中当前线程待处理的 client 的列表，并将 io_threads_pending 对应下标值置为 0，主线程利用该数组即可知道 IO 线程是否执行完所有读写任务

   void *IOThreadMain(void *myid) {/* The ID is the thread number (from 0 to server.iothreads_num-1), and is* used by the thread to just manipulate a single sub-array of clients. */long id = (unsigned long)myid;char thdname[16];snprintf(thdname, sizeof(thdname), "io_thd_%ld", id);redis_set_thread_title(thdname);redisSetCpuAffinity(server.server_cpulist);while(1) {/* Wait for start */for (int j = 0; j < 1000000; j++) {if (io_threads_pending[id] != 0) break;}/* Give the main thread a chance to stop this thread. */if (io_threads_pending[id] == 0) {pthread_mutex_lock(&io_threads_mutex[id]);pthread_mutex_unlock(&io_threads_mutex[id]);continue;}serverAssert(io_threads_pending[id] != 0);if (tio_debug) printf("[%ld] %d to handle\n", id, (int)listLength(io_threads_list[id]));/* Process: note that the main thread will never touch our list* before we drop the pending count to 0. */listIter li;listNode *ln;listRewind(io_threads_list[id],&li);while((ln = listNext(&li))) {client *c = listNodeValue(ln);if (io_threads_op == IO_THREADS_OP_WRITE) {writeToClient(c,0);} else if (io_threads_op == IO_THREADS_OP_READ) {readQueryFromClient(c->conn);} else {serverPanic("io_threads_op value is unknown");}}listEmpty(io_threads_list[id]);io_threads_pending[id] = 0;if (tio_debug) printf("[%ld] Done\n", id);}
   }


5. 可以看到处理客户端命令的函数 networking.c#readQueryFromClient()再次被调用，不过这次客户端不会再被 networking.c#postponeClientRead() 函数入队，因为客户端在第一次入队的时候 flags 标志位就已经变为了 CLIENT_PENDING_READ，故 readQueryFromClient() 函数可继续向下执行，直到执行networking.c#processInputBuffer()函数

   这个函数在上一篇文章中已经分析过，此处不再赘述，只是需要注意当 IO 线程将客户端的命令解析完毕后不会立即执行，因为客户端的 flags 是 CLIENT_PENDING_READ，此处的处理只是将客户端的 flags 标志位更新为 CLIENT_PENDING_COMMAND 并返回，命令的执行由主线程完成，也就是本节步骤3的最后一个处理动作
