前言

在学习MySQL的时候遇到了B+树，MySQL通过B+树来提升SQL语句的查询效率。接下来我们就来分析一下B+树的原理和写一个demo模拟B+树的实现。

B+树原理

1. 什么是B+树

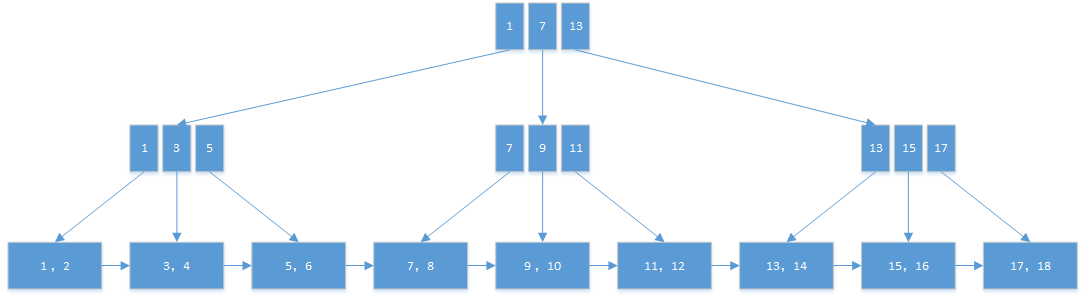

B+树是一种B树的变形，看看B+树结构

根据图我们可以看出B+树存在重复元素的存储。物理存储空间要比一般的树暂用的多，不过多的空间并不多。

上图是一个简图，实际一个三层B+树可以存储很多数据，我们按照MySQL的逻辑计算一下一个3层B+树可以存多少数据，

MySQL 中一页是16KB, 一个主键bigint字段暂用空间（8+6）个字节，8是bigint的大小，6是指针大小，假设每一行数据大小为1K。公式如下：

可以存储的数据 = (161024/(8+6)) * (161024/(8+6)) * 16K/1K = 21902400。 两千多万条数据。

2. B+树的作用

在实现B+树之前，我们先看看这个B+树结构的好处。

上面已经将一个3层B+树就可以存下如此多的数据，那么这个结果我们该如何找到我们需要的数据呢。

假设我们找到数字10.

第一种方式是：从左往右找

第10次才能找到数据，如果数据真的是千万，那这查询需要千万次计算，性能消耗太大。 这种找法一般适合找的数据很多，但是整体数据不多的情况下使用，

例如你找10条记录中需要找9条记录。

第二种方式是：从根节点开始查找

从下到下找，1，7，13 找三次找到他们子节点7，9，11，然后再找三次找到子节点9，10 ，再找一次就找到了，找了6次。

如果我们将数据扩大了2千万，我们第一层需要找最多 (16*1024/(8+6)) = 1170 次，第二层也是1170次，第三层还是1170次，最多最多我们只需要3千多次就冲2千万的数据中找到

我们需要的数据。极大的提升了查询效率。

查询效率提升的同时插入效率就会下降。

我们假设在上面这个树的基础上，插入一个数据19，每一层的数据都需要变动，如果我们一个空间只能存3个数据，那树还需要加高一层。插入变得复杂了一些。

同理，删除一样。

总结一下：B+树的特点

1、非叶子节点的子树指针与关键字个数相同；
2、非叶子节点的子树指针p[i],指向关键字值属于[k[i],k[i+1]]的子树.(B树是开区间,也就是说B树不允许关键字重复,B+树允许重复)；
3、为所有叶子节点增加一个链指针；
4、所有关键字都在叶子节点出现(稠密索引). (且链表中的关键字恰好是有序的)；
5、非叶子节点相当于是叶子节点的索引(稀疏索引),叶子节点相当于是存储(关键字)数据的数据层；

实现

import java.util.AbstractMap;
import java.util.ArrayList;
import java.util.List;
import java.util.Map;@SuppressWarnings("all")
public class BPlusNode<K extends Comparable<K>, V> {// 是否为叶子节点protected boolean isLeaf;// 是否存在根节点protected boolean isRoot;// 父节点protected BPlusNode<K, V> parent;// 叶节点的前节点protected BPlusNode<K, V> previous;// 叶节点的后节点protected BPlusNode<K, V> next;// 节点的关键字列表protected List<Map.Entry<K, V>> entries;// 子节点列表protected List<BPlusNode<K, V>> children;public BPlusNode(boolean isLeaf) {this.isLeaf = isLeaf;entries = new ArrayList();if (!isLeaf) {children = new ArrayList();}}public BPlusNode(boolean isLeaf, boolean isRoot) {this(isLeaf);this.isRoot = isRoot;}public V get(K key) {//如果是叶子节点if (isLeaf) {int low = 0, high = entries.size() - 1, mid;int comp;while (low <= high) {mid = (low + high) / 2;comp = entries.get(mid).getKey().compareTo(key);if (comp == 0) {return entries.get(mid).getValue();} else if (comp < 0) {low = mid + 1;} else {high = mid - 1;}}//未找到所要查询的对象return null;}//如果不是叶子节点//如果key小于节点最左边的key，沿第一个子节点继续搜索if (key.compareTo(entries.get(0).getKey()) < 0) {return children.get(0).get(key);//如果key大于等于节点最右边的key，沿最后一个子节点继续搜索} else if (key.compareTo(entries.get(entries.size() - 1).getKey()) >= 0) {return children.get(children.size() - 1).get(key);//否则沿比key大的前一个子节点继续搜索} else {int low = 0, high = entries.size() - 1, mid = 0;int comp;while (low <= high) {mid = (low + high) / 2;comp = entries.get(mid).getKey().compareTo(key);if (comp == 0) {return children.get(mid + 1).get(key);} else if (comp < 0) {low = mid + 1;} else {high = mid - 1;}}return children.get(low).get(key);}}//需要获取资料的朋友请加Q君样：290194256*public void insertOrUpdate(K key, V value, BPlusTree<K, V> tree) {//如果是叶子节点if (isLeaf) {//不需要分裂，直接插入或更新if (contains(key) != -1 || entries.size() < tree.getOrder()) {insertOrUpdate(key, value);if (tree.getHeight() == 0) {tree.setHeight(1);}return;}//需要分裂//分裂成左右两个节点BPlusNode<K, V> left = new BPlusNode<K, V>(true);BPlusNode<K, V> right = new BPlusNode<K, V>(true);//设置链接if (previous != null) {previous.next = left;left.previous = previous;}if (next != null) {next.previous = right;right.next = next;}if (previous == null) {tree.setHead(left);}left.next = right;right.previous = left;previous = null;next = null;//复制原节点关键字到分裂出来的新节点copy2Nodes(key, value, left, right, tree);//如果不是根节点if (parent != null) {//调整父子节点关系int index = parent.children.indexOf(this);parent.children.remove(this);left.parent = parent;right.parent = parent;parent.children.add(index, left);parent.children.add(index + 1, right);parent.entries.add(index, right.entries.get(0));entries = null; //删除当前节点的关键字信息children = null; //删除当前节点的孩子节点引用//父节点插入或更新关键字parent.updateInsert(tree);parent = null; //删除当前节点的父节点引用//如果是根节点} else {isRoot = false;BPlusNode<K, V> parent = new BPlusNode<K, V>(false, true);tree.setRoot(parent);left.parent = parent;right.parent = parent;parent.children.add(left);parent.children.add(right);parent.entries.add(right.entries.get(0));entries = null;children = null;}return;}//如果不是叶子节点//如果key小于等于节点最左边的key，沿第一个子节点继续搜索if (key.compareTo(entries.get(0).getKey()) < 0) {children.get(0).insertOrUpdate(key, value, tree);//如果key大于节点最右边的key，沿最后一个子节点继续搜索} else if (key.compareTo(entries.get(entries.size() - 1).getKey()) >= 0) {children.get(children.size() - 1).insertOrUpdate(key, value, tree);//否则沿比key大的前一个子节点继续搜索} else {int low = 0, high = entries.size() - 1, mid = 0;int comp;while (low <= high) {mid = (low + high) / 2;comp = entries.get(mid).getKey().compareTo(key);if (comp == 0) {children.get(mid + 1).insertOrUpdate(key, value, tree);break;} else if (comp < 0) {low = mid + 1;} else {high = mid - 1;}}//需要获取资料的朋友请加Q君样：290194256*if (low > high) {children.get(low).insertOrUpdate(key, value, tree);}}}private void copy2Nodes(K key, V value, BPlusNode<K, V> left,BPlusNode<K, V> right, BPlusTree<K, V> tree) {//左右两个节点关键字长度int leftSize = (tree.getOrder() + 1) / 2 + (tree.getOrder() + 1) % 2;boolean b = false;//用于记录新元素是否已经被插入for (int i = 0; i < entries.size(); i++) {if (leftSize != 0) {leftSize--;if (!b && entries.get(i).getKey().compareTo(key) > 0) {left.entries.add(new AbstractMap.SimpleEntry<K, V>(key, value));b = true;i--;} else {left.entries.add(entries.get(i));}} else {if (!b && entries.get(i).getKey().compareTo(key) > 0) {right.entries.add(new AbstractMap.SimpleEntry<K, V>(key, value));b = true;i--;} else {right.entries.add(entries.get(i));}}}if (!b) {right.entries.add(new AbstractMap.SimpleEntry<K, V>(key, value));}}/*** 插入节点后中间节点的更新*/protected void updateInsert(BPlusTree<K, V> tree) {//如果子节点数超出阶数，则需要分裂该节点if (children.size() > tree.getOrder()) {//分裂成左右两个节点BPlusNode<K, V> left = new BPlusNode<K, V>(false);BPlusNode<K, V> right = new BPlusNode<K, V>(false);//左右两个节点子节点的长度int leftSize = (tree.getOrder() + 1) / 2 + (tree.getOrder() + 1) % 2;int rightSize = (tree.getOrder() + 1) / 2;//复制子节点到分裂出来的新节点，并更新关键字for (int i = 0; i < leftSize; i++) {left.children.add(children.get(i));children.get(i).parent = left;}for (int i = 0; i < rightSize; i++) {right.children.add(children.get(leftSize + i));children.get(leftSize + i).parent = right;}for (int i = 0; i < leftSize - 1; i++) {left.entries.add(entries.get(i));}//需要获取资料的朋友请加Q君样：290194256*for (int i = 0; i < rightSize - 1; i++) {right.entries.add(entries.get(leftSize + i));}//如果不是根节点if (parent != null) {//调整父子节点关系int index = parent.children.indexOf(this);parent.children.remove(this);left.parent = parent;right.parent = parent;parent.children.add(index, left);parent.children.add(index + 1, right);parent.entries.add(index, entries.get(leftSize - 1));entries = null;children = null;//父节点更新关键字parent.updateInsert(tree);parent = null;//如果是根节点} else {isRoot = false;BPlusNode<K, V> parent = new BPlusNode<K, V>(false, true);tree.setRoot(parent);tree.setHeight(tree.getHeight() + 1);left.parent = parent;right.parent = parent;parent.children.add(left);parent.children.add(right);parent.entries.add(entries.get(leftSize - 1));entries = null;children = null;}}}/*** 删除节点后中间节点的更新*/protected void updateRemove(BPlusTree<K, V> tree) {// 如果子节点数小于M / 2或者小于2，则需要合并节点if (children.size() < tree.getOrder() / 2 || children.size() < 2) {if (isRoot) {// 如果是根节点并且子节点数大于等于2，OKif (children.size() >= 2) return;// 否则与子节点合并BPlusNode<K, V> root = children.get(0);tree.setRoot(root);tree.setHeight(tree.getHeight() - 1);root.parent = null;root.isRoot = true;entries = null;children = null;return;}//计算前后节点int currIdx = parent.children.indexOf(this);int prevIdx = currIdx - 1;int nextIdx = currIdx + 1;BPlusNode<K, V> previous = null, next = null;if (prevIdx >= 0) {previous = parent.children.get(prevIdx);}if (nextIdx < parent.children.size()) {next = parent.children.get(nextIdx);}// 如果前节点子节点数大于M / 2并且大于2，则从其处借补if (previous != null&& previous.children.size() > tree.getOrder() / 2&& previous.children.size() > 2) {//前叶子节点末尾节点添加到首位int idx = previous.children.size() - 1;BPlusNode<K, V> borrow = previous.children.get(idx);previous.children.remove(idx);borrow.parent = this;children.add(0, borrow);int preIndex = parent.children.indexOf(previous);entries.add(0, parent.entries.get(preIndex));parent.entries.set(preIndex, previous.entries.remove(idx - 1));return;}// 如果后节点子节点数大于M / 2并且大于2，则从其处借补if (next != null&& next.children.size() > tree.getOrder() / 2&& next.children.size() > 2) {//后叶子节点首位添加到末尾BPlusNode<K, V> borrow = next.children.get(0);next.children.remove(0);borrow.parent = this;children.add(borrow);int preIndex = parent.children.indexOf(this);entries.add(parent.entries.get(preIndex));parent.entries.set(preIndex, next.entries.remove(0));return;}// 同前面节点合并if (previous != null&& (previous.children.size() <= tree.getOrder() / 2|| previous.children.size() <= 2)) {for (int i = 0; i < children.size(); i++) {previous.children.add(children.get(i));}for (int i = 0; i < previous.children.size(); i++) {previous.children.get(i).parent = this;}int indexPre = parent.children.indexOf(previous);previous.entries.add(parent.entries.get(indexPre));for (int i = 0; i < entries.size(); i++) {previous.entries.add(entries.get(i));}//需要获取资料的朋友请加Q君样：290194256*children = previous.children;entries = previous.entries;//更新父节点的关键字列表parent.children.remove(previous);previous.parent = null;previous.children = null;previous.entries = null;parent.entries.remove(parent.children.indexOf(this));if ((!parent.isRoot&& (parent.children.size() >= tree.getOrder() / 2&& parent.children.size() >= 2))|| parent.isRoot && parent.children.size() >= 2) {return;}parent.updateRemove(tree);return;}// 同后面节点合并if (next != null&& (next.children.size() <= tree.getOrder() / 2|| next.children.size() <= 2)) {for (int i = 0; i < next.children.size(); i++) {BPlusNode<K, V> child = next.children.get(i);children.add(child);child.parent = this;}int index = parent.children.indexOf(this);entries.add(parent.entries.get(index));for (int i = 0; i < next.entries.size(); i++) {entries.add(next.entries.get(i));}parent.children.remove(next);next.parent = null;next.children = null;next.entries = null;parent.entries.remove(parent.children.indexOf(this));if ((!parent.isRoot && (parent.children.size() >= tree.getOrder() / 2&& parent.children.size() >= 2))|| parent.isRoot && parent.children.size() >= 2) {return;}parent.updateRemove(tree);return;}}}public V remove(K key, BPlusTree<K, V> tree) {//如果是叶子节点if (isLeaf) {//如果不包含该关键字，则直接返回if (contains(key) == -1) {return null;}//如果既是叶子节点又是根节点，直接删除if (isRoot) {if (entries.size() == 1) {tree.setHeight(0);}return remove(key);}//如果关键字数大于M / 2，直接删除if (entries.size() > tree.getOrder() / 2 && entries.size() > 2) {return remove(key);}//如果自身关键字数小于M / 2，并且前节点关键字数大于M / 2，则从其处借补if (previous != null &&previous.parent == parent&& previous.entries.size() > tree.getOrder() / 2&& previous.entries.size() > 2) {//添加到首位int size = previous.entries.size();entries.add(0, previous.entries.remove(size - 1));int index = parent.children.indexOf(previous);parent.entries.set(index, entries.get(0));return remove(key);}//如果自身关键字数小于M / 2，并且后节点关键字数大于M / 2，则从其处借补if (next != null&& next.parent == parent&& next.entries.size() > tree.getOrder() / 2&& next.entries.size() > 2) {entries.add(next.entries.remove(0));int index = parent.children.indexOf(this);parent.entries.set(index, next.entries.get(0));return remove(key);}//需要获取资料的朋友请加Q君样：290194256*//同前面节点合并if (previous != null&& previous.parent == parent&& (previous.entries.size() <= tree.getOrder() / 2|| previous.entries.size() <= 2)) {V returnValue = remove(key);for (int i = 0; i < entries.size(); i++) {//将当前节点的关键字添加到前节点的末尾previous.entries.add(entries.get(i));}entries = previous.entries;parent.children.remove(previous);previous.parent = null;previous.entries = null;//更新链表if (previous.previous != null) {BPlusNode<K, V> temp = previous;temp.previous.next = this;previous = temp.previous;temp.previous = null;temp.next = null;} else {tree.setHead(this);previous.next = null;previous = null;}parent.entries.remove(parent.children.indexOf(this));if ((!parent.isRoot && (parent.children.size() >= tree.getOrder() / 2&& parent.children.size() >= 2))|| parent.isRoot && parent.children.size() >= 2) {return returnValue;}parent.updateRemove(tree);return returnValue;}//同后面节点合并if (next != null&& next.parent == parent&& (next.entries.size() <= tree.getOrder() / 2|| next.entries.size() <= 2)) {V returnValue = remove(key);for (int i = 0; i < next.entries.size(); i++) {//从首位开始添加到末尾entries.add(next.entries.get(i));}next.parent = null;next.entries = null;parent.children.remove(next);//更新链表if (next.next != null) {BPlusNode<K, V> temp = next;temp.next.previous = this;next = temp.next;temp.previous = null;temp.next = null;} else {next.previous = null;next = null;}//更新父节点的关键字列表parent.entries.remove(parent.children.indexOf(this));if ((!parent.isRoot && (parent.children.size() >= tree.getOrder() / 2&& parent.children.size() >= 2))|| parent.isRoot && parent.children.size() >= 2) {return returnValue;}parent.updateRemove(tree);return returnValue;}}//需要获取资料的朋友请加Q君样：290194256*/*如果不是叶子节点*///如果key小于等于节点最左边的key，沿第一个子节点继续搜索if (key.compareTo(entries.get(0).getKey()) < 0) {return children.get(0).remove(key, tree);//如果key大于节点最右边的key，沿最后一个子节点继续搜索} else if (key.compareTo(entries.get(entries.size() - 1).getKey()) >= 0) {return children.get(children.size() - 1).remove(key, tree);//否则沿比key大的前一个子节点继续搜索} else {int low = 0, high = entries.size() - 1, mid = 0;int comp;while (low <= high) {mid = (low + high) / 2;comp = entries.get(mid).getKey().compareTo(key);if (comp == 0) {return children.get(mid + 1).remove(key, tree);} else if (comp < 0) {low = mid + 1;} else {high = mid - 1;}}return children.get(low).remove(key, tree);}}// 判断当前节点是否包含该关键字protected int contains(K key) {int low = 0, high = entries.size() - 1, mid;int comp;while (low <= high) {mid = (low + high) / 2;comp = entries.get(mid).getKey().compareTo(key);if (comp == 0) {return mid;} else if (comp < 0) {low = mid + 1;} else {high = mid - 1;}}return -1;}// 插入到当前节点的关键字中protected void insertOrUpdate(K key, V value) {//二叉查找，插入int low = 0, high = entries.size() - 1, mid;int comp;while (low <= high) {mid = (low + high) / 2;comp = entries.get(mid).getKey().compareTo(key);if (comp == 0) {entries.get(mid).setValue(value);break;} else if (comp < 0) {low = mid + 1;} else {high = mid - 1;}}if (low > high) {entries.add(low, new AbstractMap.SimpleEntry<K, V>(key, value));}}// 删除节点protected V remove(K key) {int low = 0, high = entries.size() - 1, mid;int comp;while (low <= high) {mid = (low + high) / 2;comp = entries.get(mid).getKey().compareTo(key);if (comp == 0) {return entries.remove(mid).getValue();} else if (comp < 0) {low = mid + 1;} else {high = mid - 1;}}return null;}public String toString() {StringBuilder sb = new StringBuilder();sb.append("isRoot: ");sb.append(isRoot);sb.append(", ");sb.append("isLeaf: ");sb.append(isLeaf);sb.append(", ");sb.append("keys: ");for (Map.Entry<K, V> entry : entries) {sb.append(entry.getKey());sb.append(", ");}sb.append(", ");return sb.toString();}public void printBPlusTree(int index) {if (this.isLeaf) {System.out.print("层级：" + index + ",叶子节点，keys为: ");for (int i = 0; i < entries.size(); ++i)System.out.print(entries.get(i) + " ");System.out.println();} else {System.out.print("层级：" + index + ",非叶子节点，keys为: ");for (int i = 0; i < entries.size(); ++i)System.out.print(entries.get(i) + " ");System.out.println();for (int i = 0; i < children.size(); ++i)children.get(i).printBPlusTree(index + 1);}//需要获取资料的朋友请加Q君样：290194256*}
}

/*** B+树的定义：* 1.任意非叶子结点最多有M个子节点；且M>2；M为B+树的阶数* 2.除根结点以外的非叶子结点至少有 (M+1)/2个子节点；* 3.根结点至少有2个子节点；* 4.除根节点外每个结点存放至少（M-1）/2和至多M-1个关键字；（至少1个关键字）* 5.非叶子结点的子树指针比关键字多1个；* 6.非叶子节点的所有key按升序存放，假设节点的关键字分别为K[0], K[1] … K[M-2],指向子女的指针分别为P[0], P[1]…P[M-1]。则有：* 　　　P[0] < K[0] <= P[1] < K[1] …..< K[M-2] <= P[M-1]* 7.所有叶子结点位于同一层；* 8.为所有叶子结点增加一个链指针；* 9.所有关键字都在叶子结点出现*/@SuppressWarnings("all")
public class BPlusTree<K extends Comparable<K>, V> {// 根节点protected BPlusNode<K, V> root;// 每个空间最多可以存多少数据protected int order;// 叶子节点的链表头protected BPlusNode<K, V> head;// 树高protected int height = 0;public BPlusNode<K, V> getHead() {return head;}public void setHead(BPlusNode<K, V> head) {this.head = head;}public BPlusNode<K, V> getRoot() {return root;}public void setRoot(BPlusNode<K, V> root) {this.root = root;}public int getOrder() {return order;}public void setOrder(int order) {this.order = order;}public void setHeight(int height) {this.height = height;}public int getHeight() {return height;}public V get(K key) {return root.get(key);}//需要获取资料的朋友请加Q君样：290194256*public V remove(K key) {return root.remove(key, this);}public void insertOrUpdate(K key, V value) {root.insertOrUpdate(key, value, this);}public BPlusTree(int order) {if (order < 3) {System.out.print("order must be greater than 2");System.exit(0);}this.order = order;root = new BPlusNode<K, V>(true, true);head = root;}public void printBPlusTree() {this.root.printBPlusTree(0);}
}

import java.util.ArrayList;
import java.util.List;
import java.util.Random;public class BPlusTreeTest {// 测试public static void main(String[] args) {int size = 10;int order = 3;testRandomInsert(size, order);testRandomSearch(size, order);testRandomRemove(size, order);}private static void testRandomRemove(int size, int order) {BPlusTree<Integer, Integer> tree = new BPlusTree<Integer, Integer>(order);System.out.println("\nTest random remove " + size + " datas, of order:"+ order);Random random = new Random();boolean[] a = new boolean[size + 10];List<Integer> list = new ArrayList<Integer>();int randomNumber = 0;System.out.println("Begin random insert...");for (int i = 0; i < size; i++) {randomNumber = random.nextInt(size);a[randomNumber] = true;list.add(randomNumber);tree.insertOrUpdate(randomNumber, randomNumber);}tree.printBPlusTree();System.out.println("Begin random remove...");long current = System.currentTimeMillis();for (int j = 0; j < size; j++) {randomNumber = list.get(j);if (a[randomNumber]) {if (tree.remove(randomNumber) == null) {System.err.println("得不到数据:" + randomNumber);break;} else {a[randomNumber] = false;}}}long duration = System.currentTimeMillis() - current;System.out.println("time elpsed for duration: " + duration);tree.printBPlusTree();System.out.println("树高："+tree.getHeight());}private static void testRandomSearch(int size, int order) {BPlusTree<Integer, Integer> tree = new BPlusTree<Integer, Integer>(order);System.out.println("\nTest random search " + size + " datas, of order:"+ order);Random random = new Random();boolean[] a = new boolean[size + 10];int randomNumber = 0;System.out.println("Begin random insert...");for (int i = 0; i < size; i++) {randomNumber = random.nextInt(size);a[randomNumber] = true;tree.insertOrUpdate(randomNumber, randomNumber);}tree.printBPlusTree();System.out.println("Begin random search...");long current = System.currentTimeMillis();for (int j = 0; j < size; j++) {randomNumber = random.nextInt(size);if (a[randomNumber]) {if (tree.get(randomNumber) == null) {System.err.println("得不到数据:" + randomNumber);break;}}}//需要获取资料的朋友请加Q君样：290194256*long duration = System.currentTimeMillis() - current;System.out.println("time elpsed for duration: " + duration);}private static void testRandomInsert(int size, int order) {BPlusTree<Integer, Integer> tree = new BPlusTree<Integer, Integer>(order);System.out.println("\nTest random insert " + size + " datas, of order:"+ order);Random random = new Random();int randomNumber = 0;long current = System.currentTimeMillis();for (int i = 0; i < size; i++) {randomNumber = random.nextInt(size * 10);System.out.print(randomNumber + " ");tree.insertOrUpdate(randomNumber, randomNumber);}long duration = System.currentTimeMillis() - current;System.out.println("time elpsed for duration: " + duration);tree.printBPlusTree();System.out.println("树高："+tree.getHeight());}
}

运行结果：（部分）

理解B+树的原理对学习MySQL有至关重要的作用。
