电商离线数仓项目实战 【下】

---

---

第一部分 电商分析之–核心交易

第1节 业务需求

本主题是电商系统业务中最关键的业务，电商的运营活动都是围绕这个主题展开。
选取的指标包括：订单数、商品数、支付金额。对这些指标按销售区域、商品类型进
行分析。

第2节 业务数据库表结构

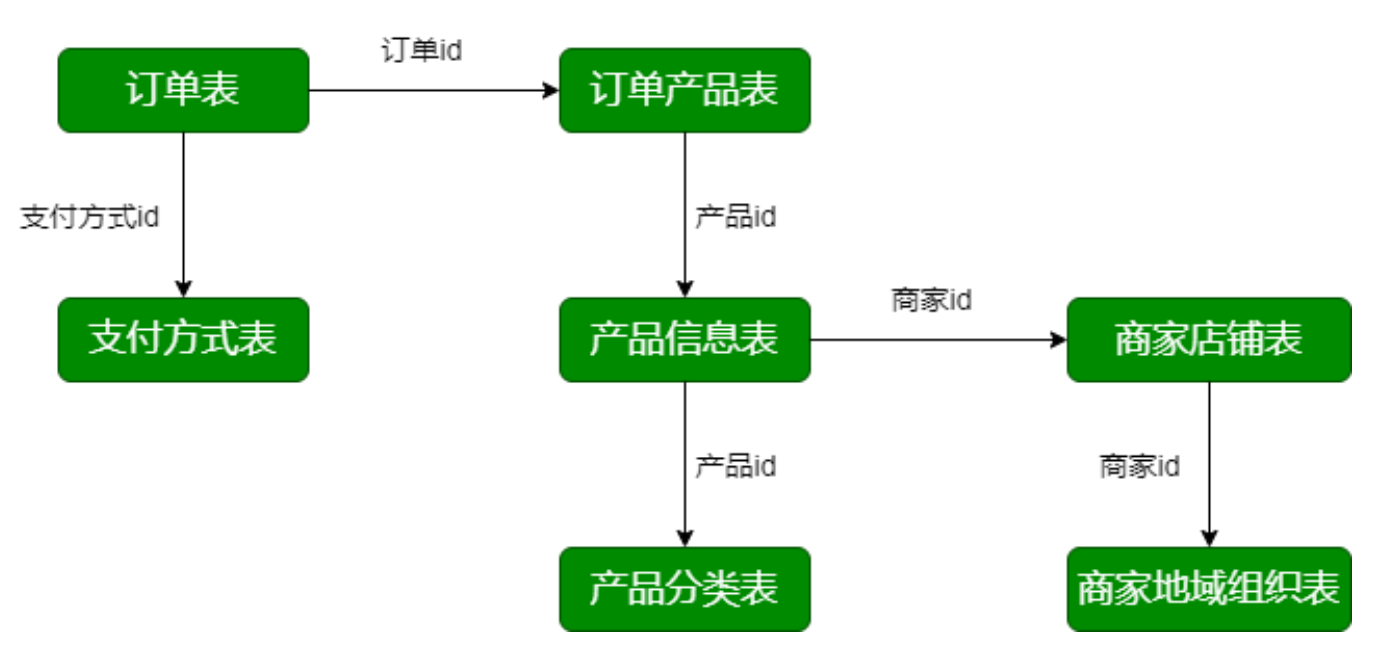

业务数据库：数据源

• 交易订单表（trade_orders）
• 订单产品表（order_product）
• 产品信息表（product_info）
• 产品分类表（product_category）
• 商家店铺表（shops）
• 商家地域组织表（shop_admin_org）
• 支付方式表（payments）

交易订单表

CREATE TABLE `lagou_trade_orders` (`orderId` bigint(11) NOT NULL AUTO_INCREMENT COMMENT '订单 id',`orderNo` varchar(20) NOT NULL COMMENT '订单编号',`userId` bigint(11) NOT NULL COMMENT '用户id',`status` tinyint(4) NOT NULL DEFAULT '-2' COMMENT '订单状态 -3:用户拒收 -2:未付款的订单 -1：用户取消 0:待发货 1:配送中 2:用户确认收 货',`productMoney` decimal(11, 2) NOT NULL COMMENT '商品金额',`totalMoney` decimal(11, 2) NOT NULL COMMENT '订单金额（包括运 费）',`payMethod` tinyint(4) NOT NULL DEFAULT '0' COMMENT '支付方 式,0:未知;1:支付宝，2：微信;3、现金；4、其他',`isPay` tinyint(4) NOT NULL DEFAULT '0' COMMENT '是否支付 0:未 支付 1:已支付',`areaId` int(11) NOT NULL COMMENT '区域最低一级',`tradeSrc` tinyint(4) NOT NULL DEFAULT '0' COMMENT '订单来源 0:商城 1:微信 2:手机版 3:安卓App 4:苹果App',`tradeType` int(11) DEFAULT '0' COMMENT '订单类型',`isRefund` tinyint(4) NOT NULL DEFAULT '0' COMMENT '是否退款 0:否 1：是',`dataFlag` tinyint(4) NOT NULL DEFAULT '1' COMMENT '订单有效标 志 -1：删除 1:有效',`createTime` varchar(25) NOT NULL COMMENT '下单时间',`payTime` varchar(25) DEFAULT NULL COMMENT '支付时间',`modifiedTime` timestamp NOT NULL DEFAULT '0000-00-00 00:00:00' COMMENT '订单更新时间',PRIMARY KEY (`orderId`)
) ENGINE = InnoDB AUTO_INCREMENT = 355 CHARSET = utf8;

备注：

• 记录订单的信息
• status。订单状态
• createTime、payTime、modifiedTime。创建时间、支付时间、修改时间]

订单产品表

CREATE TABLE `lagou_order_product` (`id` bigint(11) NOT NULL AUTO_INCREMENT,`orderId` bigint(11) NOT NULL COMMENT '订单id',`productId` bigint(11) NOT NULL COMMENT '商品id',`productNum` bigint(11) NOT NULL DEFAULT '0' COMMENT '商品数 量',`productPrice` decimal(11, 2) NOT NULL DEFAULT '0.00' COMMENT '商品价格',`money` decimal(11, 2) DEFAULT '0.00' COMMENT '付款金额',`extra` text COMMENT '额外信息',`createTime` varchar(25) DEFAULT NULL COMMENT '创建时间',PRIMARY KEY (`id`),KEY `orderId` (`orderId`),KEY `goodsId` (`productId`)
) ENGINE = InnoDB AUTO_INCREMENT = 1260 CHARSET = utf8;

备注：

• 记录订单中购买产品的信息，包括产品的数量、单价等

产品信息表

CREATE TABLE `lagou_product_info` (`productId` bigint(11) NOT NULL AUTO_INCREMENT COMMENT '商品 id',`productName` varchar(200) NOT NULL COMMENT '商品名称',`shopId` bigint(11) NOT NULL COMMENT '门店ID',`price` decimal(11, 2) NOT NULL DEFAULT '0.00' COMMENT '门店 价',`isSale` tinyint(4) NOT NULL DEFAULT '1' COMMENT '是否上架 0:不上架 1:上架',`status` tinyint(4) NOT NULL DEFAULT '0' COMMENT '是否新品 0:否 1:是',`categoryId` int(11) NOT NULL COMMENT 'goodsCatId 最后一级商品 分类ID',`createTime` varchar(25) NOT NULL,`modifyTime` datetime DEFAULT NULL ON UPDATE CURRENT_TIMESTAMP COMMENT '修改时间',PRIMARY KEY (`productId`),KEY `shopId` USING BTREE (`shopId`),KEY `goodsStatus` (`isSale`)
) ENGINE = InnoDB AUTO_INCREMENT = 115909 CHARSET = utf8;

备注：

• 记录产品的详细信息，对应商家ID、商品属性（是否新品、是否上架）
• createTime、modifyTime。创建时间和修改时间

产品分类表

CREATE TABLE `lagou_product_category` (`catId` int(11) NOT NULL AUTO_INCREMENT COMMENT '品类ID',`parentId` int(11) NOT NULL COMMENT '父ID',`catName` varchar(20) NOT NULL COMMENT '分类名称',`isShow` tinyint(4) NOT NULL DEFAULT '1' COMMENT '是否显示 0:隐藏 1:显示',`sortNum` int(11) NOT NULL DEFAULT '0' COMMENT '排序号',`isDel` tinyint(4) NOT NULL DEFAULT '1' COMMENT '删除标志 1:有 效 -1：删除',`createTime` varchar(25) NOT NULL COMMENT '建立时间',`level` tinyint(4) DEFAULT '0' COMMENT '分类级别，共3级',PRIMARY KEY (`catId`),KEY `parentId` (`parentId`, `isShow`, `isDel`)
) ENGINE = InnoDB AUTO_INCREMENT = 10442 CHARSET = utf8;

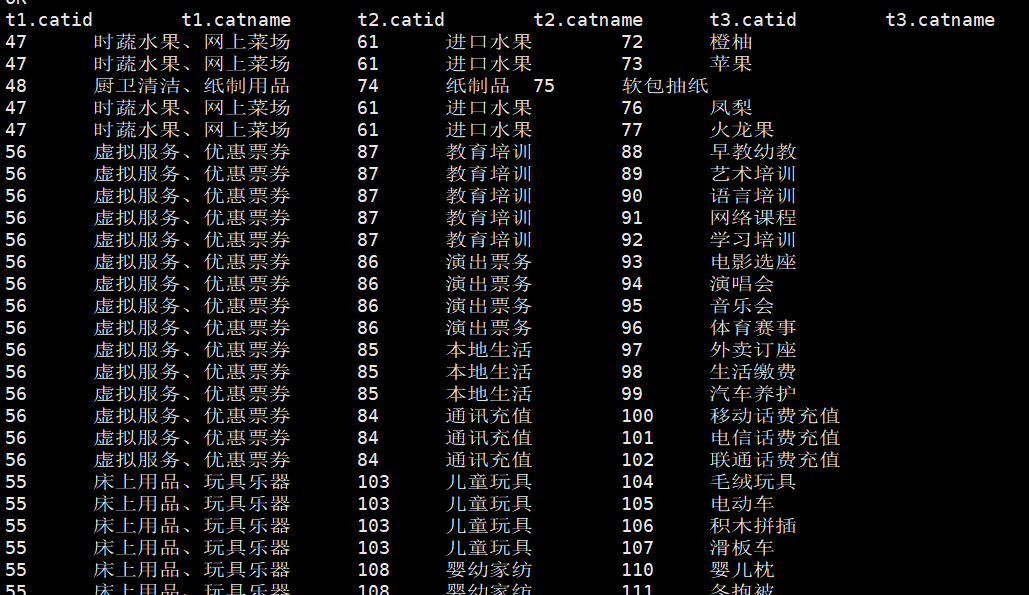

备注：产品分类表，共分3个级别

-- 第一级产品目录
select catName, catid from lagou_product_category where level =1;
-- 查看电脑、办公的子类（查看二级目录）
select catName, catid from lagou_product_category where level =2 and parentId = 32;
-- 查看电脑整机的子类（查看三级目录）
select catName, catid from lagou_product_category where level =3 and parentId = 10250;

商家店铺表

CREATE TABLE `lagou_shops` (`shopId` int(11) NOT NULL AUTO_INCREMENT COMMENT '商铺ID，自 增',`userId` int(11) NOT NULL COMMENT '商铺联系人ID',`areaId` int(11) DEFAULT '0',`shopName` varchar(100) DEFAULT '' COMMENT '商铺名称',`shopLevel` tinyint(4) NOT NULL DEFAULT '1' COMMENT '店铺等 级',`status` tinyint(4) NOT NULL DEFAULT '1' COMMENT '商铺状态',`createTime` date DEFAULT NULL,`modifyTime` datetime DEFAULT NULL COMMENT '修改时间',PRIMARY KEY (`shopId`),KEY `shopStatus` (`status`)
) ENGINE = InnoDB AUTO_INCREMENT = 105317 CHARSET = utf8;

备注：记录店铺的详细信息

商家地域组织表

CREATE TABLE `lagou_shop_admin_org` (`id` int(11) NOT NULL AUTO_INCREMENT COMMENT '组织ID',`parentId` int(11) NOT NULL COMMENT '父ID',`orgName` varchar(100) NOT NULL COMMENT '组织名称',`orgLevel` tinyint(4) NOT NULL DEFAULT '1' COMMENT '组织级别 1;总部及大区级部门;2：总部下属的各个部门及基部门;3:具体工作部门',`isDelete` tinyint(4) NOT NULL DEFAULT '0' COMMENT '删除标 志,1:删除;0:有效',`createTime` varchar(25) DEFAULT NULL COMMENT '创建时间',`updateTime` varchar(25) DEFAULT NULL COMMENT '最后修改时间',`isShow` tinyint(4) NOT NULL DEFAULT '1' COMMENT '是否显示,0: 是 1:否',`orgType` tinyint(4) NOT NULL DEFAULT '1' COMMENT '组织类 型,0:总裁办;1:研发;2:销售;3:运营;4:产品',PRIMARY KEY (`id`),KEY `parentId` (`parentId`)
) ENGINE = InnoDB AUTO_INCREMENT = 100332 CHARSET = utf8;

备注：记录店铺所属区域
支付方式表

CREATE TABLE `lagou_payments` (`id` int(11) NOT NULL,`payMethod` varchar(20) DEFAULT NULL,`payName` varchar(255) DEFAULT NULL,`description` varchar(255) DEFAULT NULL,`payOrder` int(11) DEFAULT '0',`online` tinyint(4) DEFAULT NULL,PRIMARY KEY (`id`),KEY `payCode` (`payMethod`)
) ENGINE = InnoDB CHARSET = utf8;

备注：记录支付方式

第3节 数据导入

已经确定的事情：DataX、导出7张表的数据。
MySQL 导出：全量导出、增量导出（导出前一天的数据）。

业务数据保存在MySQL中，每日凌晨导入上一天的表数据。

• 表数据量少，采用全量方式导出MySQL
• 表数据量大，而且根据字段能区分出每天新增数据，采用增量方式导出MySQL

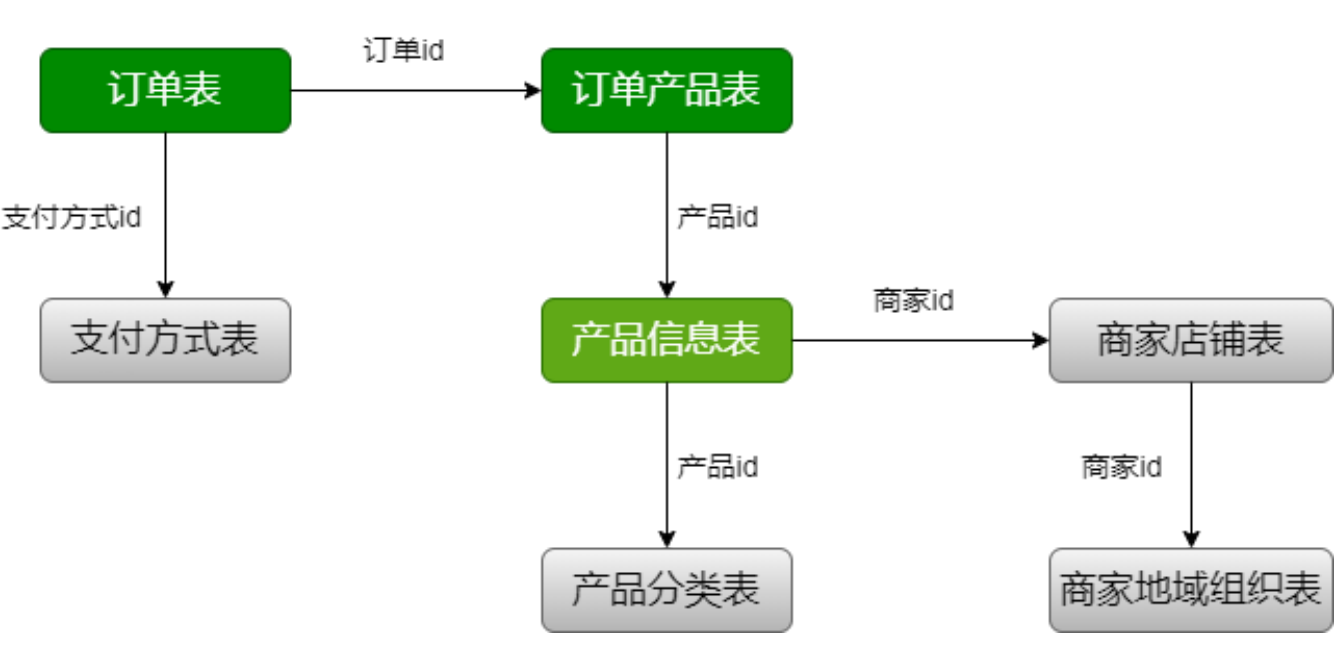

  3张增量表：
• 订单表 lagou_trade_orders
• 订单产品表 lagou_order_produce
• 产品信息表 lagou_product_info

4张全量表：

• 产品分类表 lagou_product_category
• 商家店铺表 lagou_shops
• 商家地域组织表 lagou_shop_admin_org
• 支付方式表 lagou_payment

3.1、全量数据导入

MySQL => HDFS => Hive
每日加载全量数据，形成新的分区；(ODS如何建表有指导左右)
MySQLReader ===> HdfsWriter
ebiz.lagou_product_category ===> ods.ods_trade_product_category
加载数据 建表见第四节

1、产品分类表

/data/lagoudw/json/product_category.json

{"job": {"setting": {"speed": {"channel": 1}}, "content": [{"reader": {"name": "mysqlreader", "parameter": {"username": "root", "password": "12345678", "column": ["catId", "parentId", "catName", "isShow", "sortNum", "isDel", "createTime", "level"], "connection": [{"table": ["lagou_product_category"], "jdbcUrl": ["jdbc:mysql://linux123:3306/ebiz"]}]}}, "writer": {"name": "hdfswriter", "parameter": {"defaultFS": "hdfs://linux121:9000", "fileType": "text", "path": "/user/data/trade.db/product_category/dt=$do_date", "fileName": "product_category_$do_date", "column": [{"name": "catId", "type": "INT"}, {"name": "parentId", "type": "INT"}, {"name": "catName", "type": "STRING"}, {"name": "isShow", "type": "TINYINT"}, {"name": "sortNum", "type": "INT"}, {"name": "isDel", "type": "TINYINT"}, {"name": "createTime", "type": "STRING"}, {"name": "level", "type": "TINYINT"}], "writeMode": "append", "fieldDelimiter": ","}}}]}
}

备注：

• 数据量小的表没有必要使用多个channel；使用多个channel会生成多个小文件
• 执行命令之前要在HDFS上创建对应的目录：/user/data/trade.db/product_category/dt=yyyy-mm-dd
  DATAX 之前安装在linux122上，所以要在122上执行

do_date='2020-07-01'
# 创建目录
hdfs dfs -mkdir -p /user/data/trade.db/product_category/dt=$do_date
# 数据迁移
python $DATAX_HOME/bin/datax.py -p "-Ddo_date=$do_date" /data/lagoudw/json/product_category.json
# 加载数据
hive -e "alter table ods.ods_trade_product_category add partition(dt='$do_date')"

2、商家店铺表

lagou_shops ====> ods.ods_trade_shops
/data/lagoudw/json/shops.json

{"job": {"setting": {"speed": {"channel": 1}, "errorLimit": {"record": 0}}, "content": [{"reader": {"name": "mysqlreader", "parameter": {"username": "root", "password": "12345678", "column": ["shopId", "userId", "areaId", "shopName", "shopLevel", "status", "createTime", "modifyTime"], "connection": [{"table": ["lagou_shops"], "jdbcUrl": ["jdbc:mysql://linux123:3306/ebiz"]}]}}, "writer": {"name": "hdfswriter", "parameter": {"defaultFS": "hdfs://linux121:9000", "fileType": "text", "path": "/user/data/trade.db/shops/dt=$do_date", "fileName": "shops_$do_date", "column": [{"name": "shopId", "type": "INT"}, {"name": "userId", "type": "INT"}, {"name": "areaId", "type": "INT"}, {"name": "shopName", "type": "STRING"}, {"name": "shopLevel", "type": "TINYINT"}, {"name": "status", "type": "TINYINT"}, {"name": "createTime", "type": "STRING"}, {"name": "modifyTime", "type": "STRING"}], "writeMode": "append", "fieldDelimiter": ","}}}]}
}

do_date='2020-07-01'
# 创建目录
hdfs dfs -mkdir -p /user/data/trade.db/shops/dt=$do_date
# 数据迁移
python $DATAX_HOME/bin/datax.py -p "-Ddo_date=$do_date" /data/lagoudw/json/shops.json
# 加载数据
hive -e "alter table ods.ods_trade_shops add partition(dt='$do_date')"

3、商家地域组织表

lagou_shop_admin_org ====> ods.ods_trade_shop_admin_org
/data/lagoudw/json/shop_org.json

{"job": {"setting": {"speed": {"channel": 1}, "errorLimit": {"record": 0}}, "content": [{"reader": {"name": "mysqlreader", "parameter": {"username": "root", "password": "12345678", "column": ["id", "parentId", "orgName", "orgLevel", "isDelete", "createTime", "updateTime", "isShow", "orgType"], "connection": [{"table": ["lagou_shop_admin_org"], "jdbcUrl": ["jdbc:mysql://linux123:3306/ebiz"]}]}}, "writer": {"name": "hdfswriter", "parameter": {"defaultFS": "hdfs://linux121:9000", "fileType": "text", "path": "/user/data/trade.db/shop_org/dt=$do_date", "fileName": "shop_admin_org_$do_date.dat", "column": [{"name": "id", "type": "INT"}, {"name": "parentId", "type": "INT"}, {"name": "orgName", "type": "STRING"}, {"name": "orgLevel", "type": "TINYINT"}, {"name": "isDelete", "type": "TINYINT"}, {"name": "createTime", "type": "STRING"}, {"name": "updateTime", "type": "STRING"}, {"name": "isShow", "type": "TINYINT"}, {"name": "orgType", "type": "TINYINT"}], "writeMode": "append", "fieldDelimiter": ","}}}]}
}

do_date='2020-07-01'
# 创建目录
hdfs dfs -mkdir -p /user/data/trade.db/shop_org/dt=$do_date
# 数据迁移
python $DATAX_HOME/bin/datax.py -p "-Ddo_date=$do_date" /data/lagoudw/json/shop_org.json
# 加载数据
hive -e "alter table ods.ods_trade_shop_admin_org add partition(dt='$do_date')"

3.2 增量数据导入

3张增量表：

• 订单表 lagou_trade_orders
• 订单产品表 lagou_order_produce
• 产品信息表 lagou_product_info

初始数据装载（执行一次）；可以将前面的全量加载作为初次装载
每日加载增量数据（每日数据形成分区）；

1、订单表

lagou_trade_orders ====> ods.ods_trade_orders
/data/lagoudw/json/orders.json
备注：条件的选择，选择时间字段 modifiedTime

{"job":{"setting":{"speed":{"channel":1},"errorLimit":{"record":0}},"content":[{"reader":{"name":"mysqlreader","parameter":{"username":"root","password":"12345678","connection":[{"querySql":["select orderId, orderNo, userId,status, productMoney, totalMoney, payMethod, isPay, areaId,tradeSrc, tradeType, isRefund, dataFlag, createTime, payTime,modifiedTime from lagou_trade_orders where date_format(modifiedTime, '%Y-%m-%d')='$do_date'"],"jdbcUrl":["jdbc:mysql://linux123:3306/ebiz"]}]}},"writer":{"name":"hdfswriter","parameter":{"defaultFS":"hdfs://linux121:9000","fileType":"text","path":"/user/data/trade.db/orders/dt=$do_date","fileName":"orders_$do_date","column":[{"name":"orderId","type":"INT"},{"name":"orderNo","type":"STRING"},{"name":"userId","type":"BIGINT"},{"name":"status","type":"TINYINT"},{"name":"productMoney","type":"Float"},{"name":"totalMoney","type":"Float"},{"name":"payMethod","type":"TINYINT"},{"name":"isPay","type":"TINYINT"},{"name":"areaId","type":"INT"},{"name":"tradeSrc","type":"TINYINT"},{"name":"tradeType","type":"INT"},{"name":"isRefund","type":"TINYINT"},{"name":"dataFlag","type":"TINYINT"},{"name":"createTime","type":"STRING"},{"name":"payTime","type":"STRING"},{"name":"modifiedTime","type":"STRING"}],"writeMode":"append","fieldDelimiter":","}}}]}
}

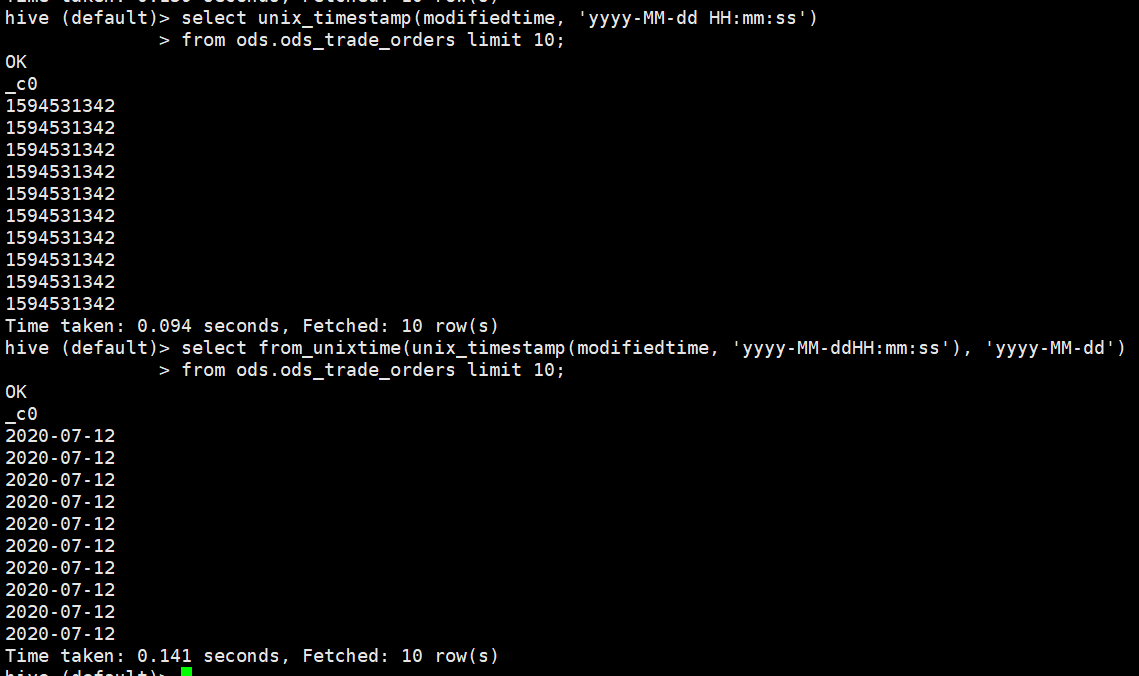

-- MySQL 中的时间日期转换
select date_format(createTime, '%Y-%m-%d'), count(*)
from lagou_trade_orders
group by date_format(createTime, '%Y-%m-%d');

do_date='2020-07-12'
# 创建目录
hdfs dfs -mkdir -p /user/data/trade.db/orders/dt=$do_date
# 数据迁移
python $DATAX_HOME/bin/datax.py -p "-Ddo_date=$do_date" /data/lagoudw/json/orders.json
# 加载数据
hive -e "alter table ods.ods_trade_orders add partition(dt='$do_date')"

2、订单明细表

lagou_order_product ====> ods.ods_trade_order_product
/data/lagoudw/json/order_product.json

{"job":{"setting":{"speed":{"channel":1},"errorLimit":{"record":0}},"content":[{"reader":{"name":"mysqlreader","parameter":{"username":"root","password":"12345678","connection":[{"querySql":["select id, orderId, productId,productNum, productPrice, money, extra, createTime from lagou_order_product where date_format(createTime, '%Y-%m-%d')= '$do_date' "],"jdbcUrl":["jdbc:mysql://linux123:3306/ebiz"]}]}},"writer":{"name":"hdfswriter","parameter":{"defaultFS":"hdfs://linux121:9000","fileType":"text","path":"/user/data/trade.db/order_product/dt=$do_date","fileName":"order_product_$do_date.dat","column":[{"name":"id","type":"INT"},{"name":"orderId","type":"INT"},{"name":"productId","type":"INT"},{"name":"productNum","type":"INT"},{"name":"productPrice","type":"Float"},{"name":"money","type":"Float"},{"name":"extra","type":"STRING"},{"name":"createTime","type":"STRING"}],"writeMode":"append","fieldDelimiter":","}}}]}
}

do_date='2020-07-12'
# 创建目录
hdfs dfs -mkdir -p /user/data/trade.db/order_product/dt=$do_date
# 数据迁移
python $DATAX_HOME/bin/datax.py -p "-Ddo_date=$do_date" /data/lagoudw/json/order_product.json
# 加载数据
hive -e "alter table ods.ods_trade_order_product add partition(dt='$do_date')"

3、产品明细表

lagou_product_info ====> ods.ods_trade_product_info
/data/lagoudw/json/product_info.json

{"job":{"setting":{"speed":{"channel":1},"errorLimit":{"record":0}},"content":[{"reader":{"name":"mysqlreader","parameter":{"username":"root","password":"12345678","connection":[{"querySql":["select productid, productname,shopid, price, issale, status, categoryid, createtime,modifytime from lagou_product_info where date_format(modifyTime, '%Y-%m-%d') = '$do_date' "],"jdbcUrl":["jdbc:mysql://linux123:3306/ebiz"]}]}},"writer":{"name":"hdfswriter","parameter":{"defaultFS":"hdfs://linux121:9000","fileType":"text","path":"/user/data/trade.db/product_info/dt=$do_date","fileName":"product_info_$do_date.dat","column":[{"name":"productid","type":"BIGINT"},{"name":"productname","type":"STRING"},{"name":"shopid","type":"STRING"},{"name":"price","type":"FLOAT"},{"name":"issale","type":"TINYINT"},{"name":"status","type":"TINYINT"},{"name":"categoryid","type":"STRING"},{"name":"createTime","type":"STRING"},{"name":"modifytime","type":"STRING"}],"writeMode":"append","fieldDelimiter":","}}}]}
}

do_date='2020-07-12'
# 创建目录
hdfs dfs -mkdir -p /user/data/trade.db/product_info/dt=$do_date
# 数据迁移
python $DATAX_HOME/bin/datax.py -p "-Ddo_date=$do_date" /data/lagoudw/json/product_info.json
# 加载数据
hive -e "alter table ods.ods_trade_product_info add partition(dt='$do_date')"

第4节 ODS层建表与数据加载

ODS建表：

• ODS层的表结构与源数据基本类似（列名及数据类型）；
• ODS层的表名遵循统一的规范；

4.1 ODS层建表

所有的表都是分区表；字段之间的分隔符为 , ；为表的数据数据文件指定了位置；

DROP TABLE IF EXISTS `ods.ods_trade_orders`;
CREATE EXTERNAL TABLE `ods.ods_trade_orders`(
`orderid` int,
`orderno` string,
`userid` bigint,
`status` tinyint,
`productmoney` decimal(10, 0),
`totalmoney` decimal(10, 0),
`paymethod` tinyint,
`ispay` tinyint,
`areaid` int,
`tradesrc` tinyint,
`tradetype` int,
`isrefund` tinyint,
`dataflag` tinyint,
`createtime` string,
`paytime` string,
`modifiedtime` string)
COMMENT '订单表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by ','
location '/user/data/trade.db/orders/';DROP TABLE IF EXISTS `ods.ods_trade_order_product`;
CREATE EXTERNAL TABLE `ods.ods_trade_order_product`(
`id` string,
`orderid` decimal(10,2),
`productid` string,
`productnum` string,
`productprice` string,
`money` string,
`extra` string,
`createtime` string)
COMMENT '订单明细表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by ','
location '/user/data/trade.db/order_product/';DROP TABLE IF EXISTS `ods.ods_trade_product_info`;
CREATE EXTERNAL TABLE `ods.ods_trade_product_info`(
`productid` bigint,
`productname` string,
`shopid` string,
`price` decimal(10,0),
`issale` tinyint,
`status` tinyint,
`categoryid` string,
`createtime` string,
`modifytime` string)
COMMENT '产品信息表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by ','
location '/user/data/trade.db/product_info/';DROP TABLE IF EXISTS `ods.ods_trade_product_category`;
CREATE EXTERNAL TABLE `ods.ods_trade_product_category`(
`catid` int,
`parentid` int,
`catname` string,
`isshow` tinyint,
`sortnum` int,
`isdel` tinyint,
`createtime` string,
`level` tinyint)
COMMENT '产品分类表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by ','
location '/user/data/trade.db/product_category';DROP TABLE IF EXISTS `ods.ods_trade_shops`;
CREATE EXTERNAL TABLE `ods.ods_trade_shops`(
`shopid` int,
`userid` int,
`areaid` int,
`shopname` string,
`shoplevel` tinyint,
`status` tinyint,
`createtime` string,
`modifytime` string)
COMMENT '商家店铺表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by ','
location '/user/data/trade.db/shops';DROP TABLE IF EXISTS `ods.ods_trade_shop_admin_org`;
CREATE EXTERNAL TABLE `ods.ods_trade_shop_admin_org`(
`id` int,
`parentid` int,
`orgname` string,
`orglevel` tinyint,
`isdelete` tinyint,
`createtime` string,
`updatetime` string,
`isshow` tinyint,
`orgType` tinyint)
COMMENT '商家地域组织表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by ','
location '/user/data/trade.db/shop_org/';DROP TABLE IF EXISTS `ods.ods_trade_payments`;
CREATE EXTERNAL TABLE `ods.ods_trade_payments`(
`id` string,
`paymethod` string,
`payname` string,
`description` string,
`payorder` int,
`online` tinyint)
COMMENT '支付方式表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by ','
location '/user/data/trade.db/payments/';

4.2 ODS层数据加载

DataX仅仅是将数据导入到了 HDFS ，数据并没有与Hive表建立关联。
脚本的任务：数据迁移、数据加载到ODS层；
对于增量加载数据而言：初始数据加载；该任务仅执行一次，不在脚本中。

/data/lagoudw/script/trade/ods_load_trade.sh

#!/bin/bash
source /etc/profile
if [ -n "$1" ] ;then
do_date=$1
else
do_date=`date -d "-1 day" +%F`
fi
# 创建目录
hdfs dfs -mkdir -p /user/data/trade.db/product_category/dt=$do_date
hdfs dfs -mkdir -p /user/data/trade.db/shops/dt=$do_date
hdfs dfs -mkdir -p /user/data/trade.db/shop_org/dt=$do_date
hdfs dfs -mkdir -p /user/data/trade.db/payments/dt=$do_date
hdfs dfs -mkdir -p /user/data/trade.db/orders/dt=$do_date
hdfs dfs -mkdir -p /user/data/trade.db/order_product/dt=$do_date
hdfs dfs -mkdir -p /user/data/trade.db/product_info/dt=$do_date
# 数据迁移
python $DATAX_HOME/bin/datax.py -p "-Ddo_date=$do_date" /data/lagoudw/json/product_category.json
python $DATAX_HOME/bin/datax.py -p "-Ddo_date=$do_date" /data/lagoudw/json/shops.json
python $DATAX_HOME/bin/datax.py -p "-Ddo_date=$do_date" /data/lagoudw/json/shop_org.json
python $DATAX_HOME/bin/datax.py -p "-Ddo_date=$do_date" /data/lagoudw/json/payments.json
python $DATAX_HOME/bin/datax.py -p "-Ddo_date=$do_date" /data/lagoudw/json/orders.json
python $DATAX_HOME/bin/datax.py -p "-Ddo_date=$do_date" /data/lagoudw/json/order_product.json
python $DATAX_HOME/bin/datax.py -p "-Ddo_date=$do_date" /data/lagoudw/json/product_info.json
# 加载 ODS 层数据
sql="
alter table ods.ods_trade_orders add partition(dt='$do_date');
alter table ods.ods_trade_order_product add partition(dt='$do_date');
alter table ods.ods_trade_product_info add partition(dt='$do_date');
alter table ods.ods_trade_product_category add partition(dt='$do_date');
alter table ods.ods_trade_shops add partition(dt='$do_date');
alter table ods.ods_trade_shop_admin_org add partition(dt='$do_date');
alter table ods.ods_trade_payments add partition(dt='$do_date');
"
hive -e "$sql"

特点：工作量大，繁琐，容易出错；与数据采集工作在一起；

第5节 缓慢变化维与周期性事实表

5.1、缓慢变化维

缓慢变化维（SCD；Slowly Changing Dimensions）。在现实世界中，维度的属性
随着时间的流失发生缓慢的变化（缓慢是相对事实表而言，事实表数据变化的速度比
维度表快）。

处理维度表的历史变化信息的问题称为处理缓慢变化维的问题，简称SCD问题。处理
缓慢变化维的方法有以下几种常见方式：

• 保留原值
• 直接覆盖
• 增加新属性列
• 快照表
• 拉链表

1、保留原始值
维度属性值不做更改，保留原始值。
如商品上架售卖时间：一个商品上架售卖后由于其他原因下架，后来又再次上架，此
种情况产生了多个商品上架售卖时间。如果业务重点关注的是商品首次上架售卖时
间，则采用该方式。
2、直接覆盖
修改维度属性为最新值，直接覆盖，不保留历史信息。
如商品属于哪个品类：当商品品类发生变化时，直接重写为新品类。

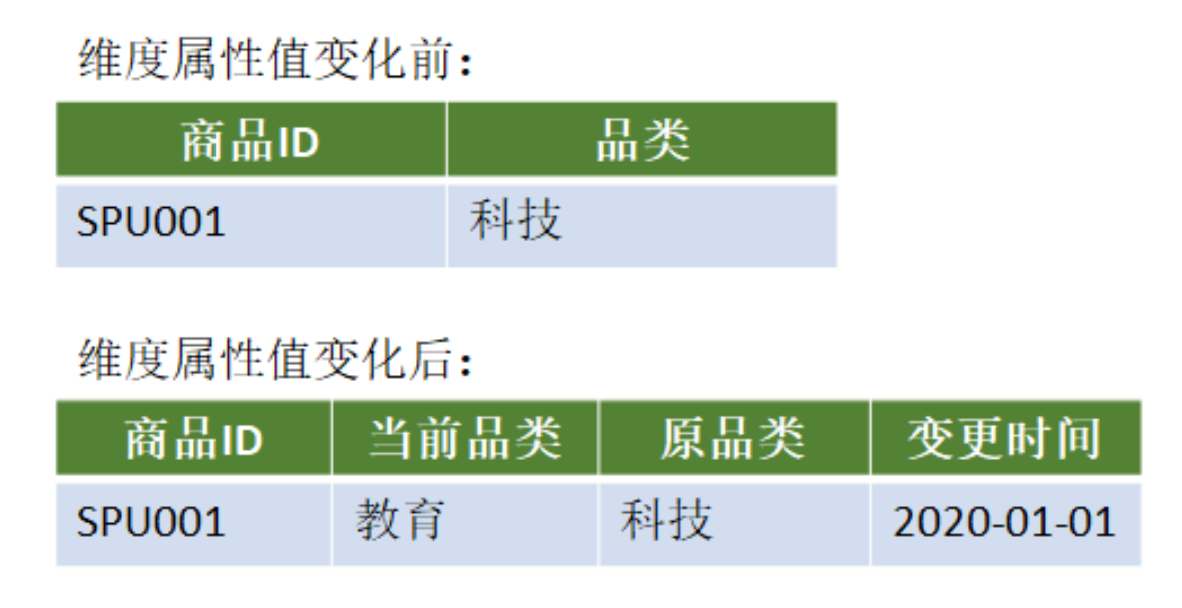

3、增加新属性列
在维度表中增加新的一列，原先属性列存放上一版本的属性值，当前属性列存放当前
版本的属性值，还可以增加一列记录变化的时间。
缺点：只能记录最后一次变化的信息。

4、快照表
每天保留一份全量数据。
简单、高效。缺点是信息重复，浪费磁盘空间。
适用范围：维表不能太大
使用场景多，范围广；一般而言维表都不大。

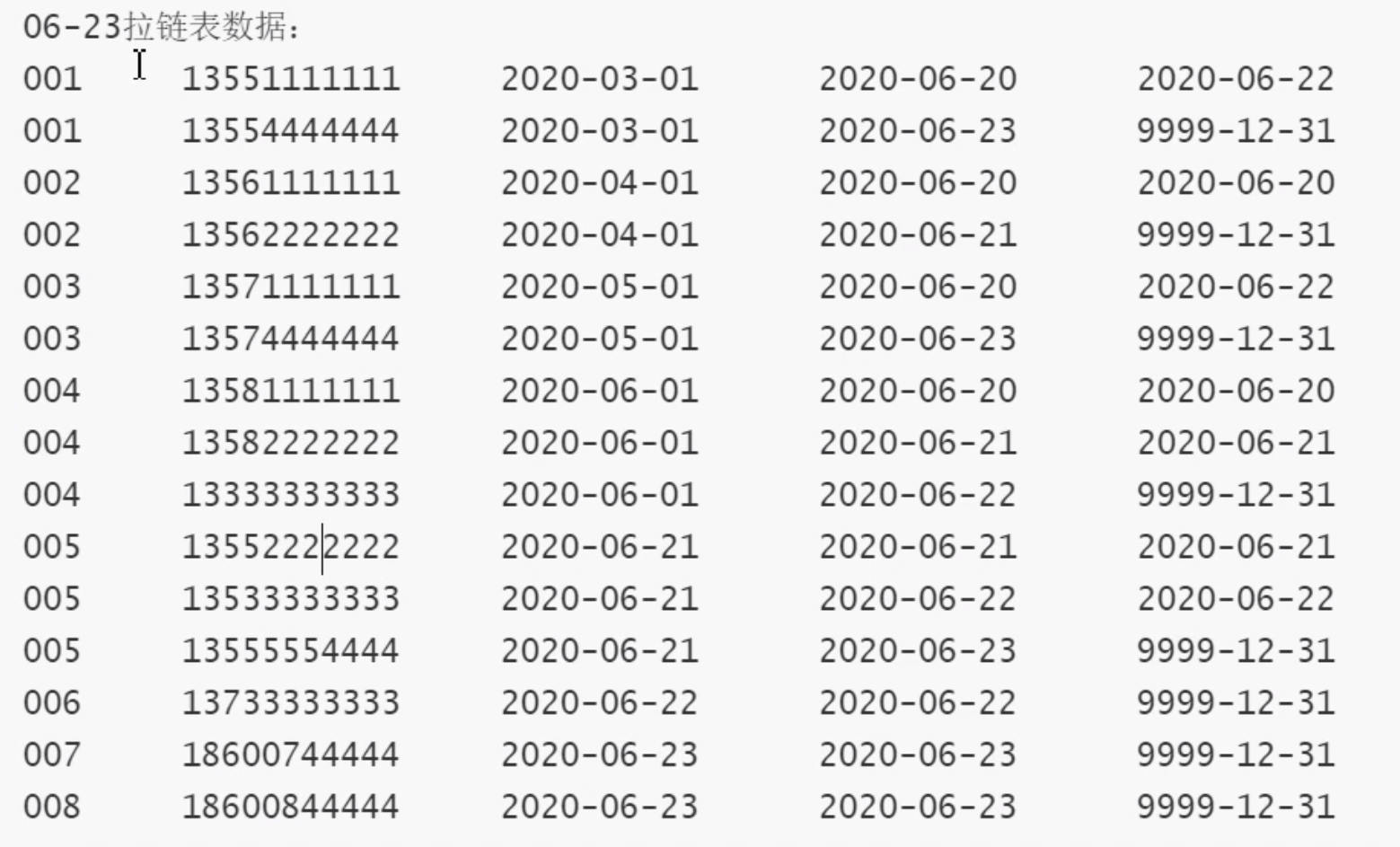

5、拉链表
拉链表适合于：表的数据量大，而且数据会发生新增和变化，但是大部分是不变的
（数据发生变化的百分比不大），且是缓慢变化的（如电商中用户信息表中的某些用
户基本属性不可能每天都变化）。主要目的是节省存储空间。
适用场景：

• 表的数据量大
• 表中部分字段会被更新
• 表中记录变量的比例不高
• 需要保留历史信息

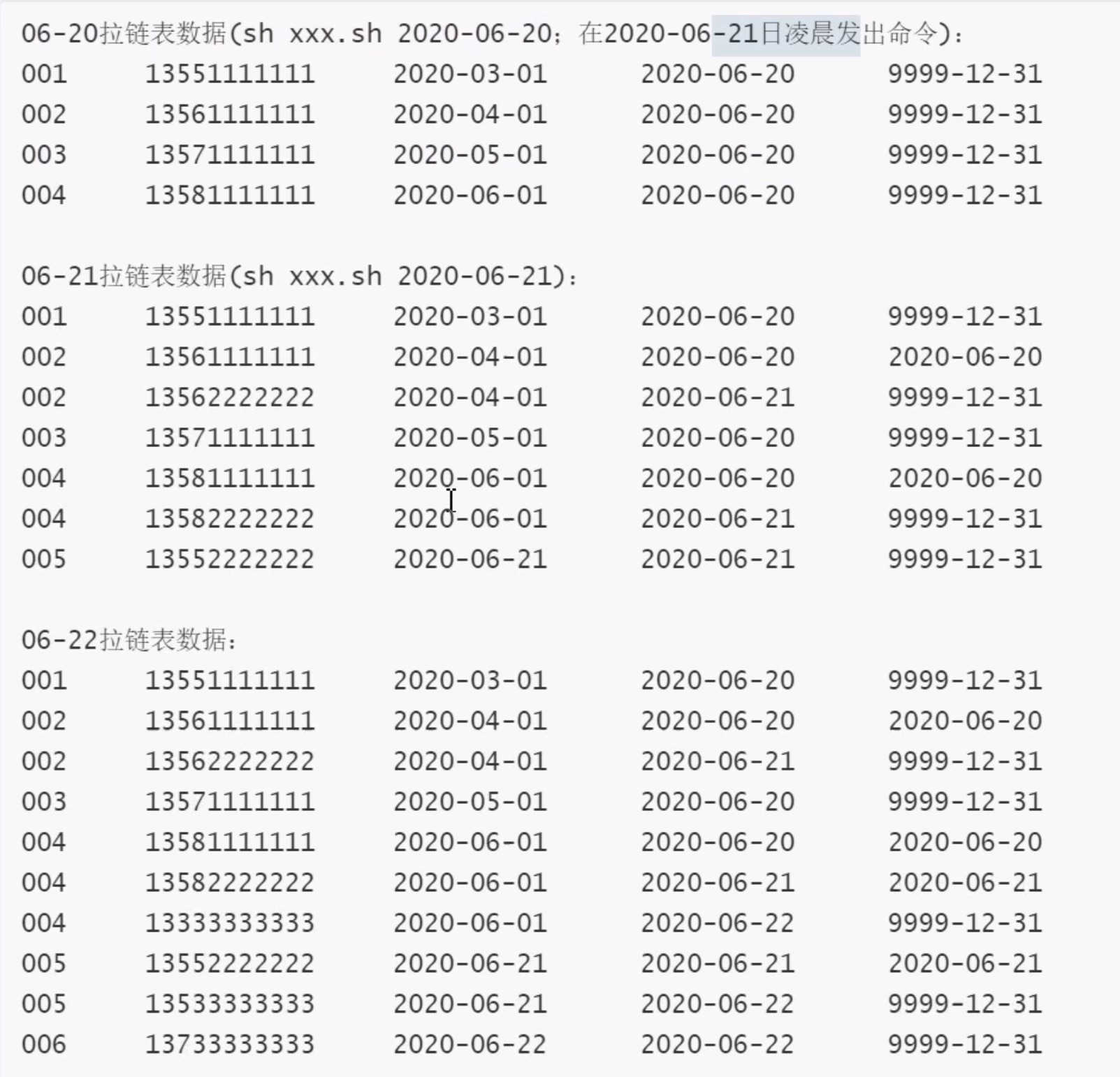

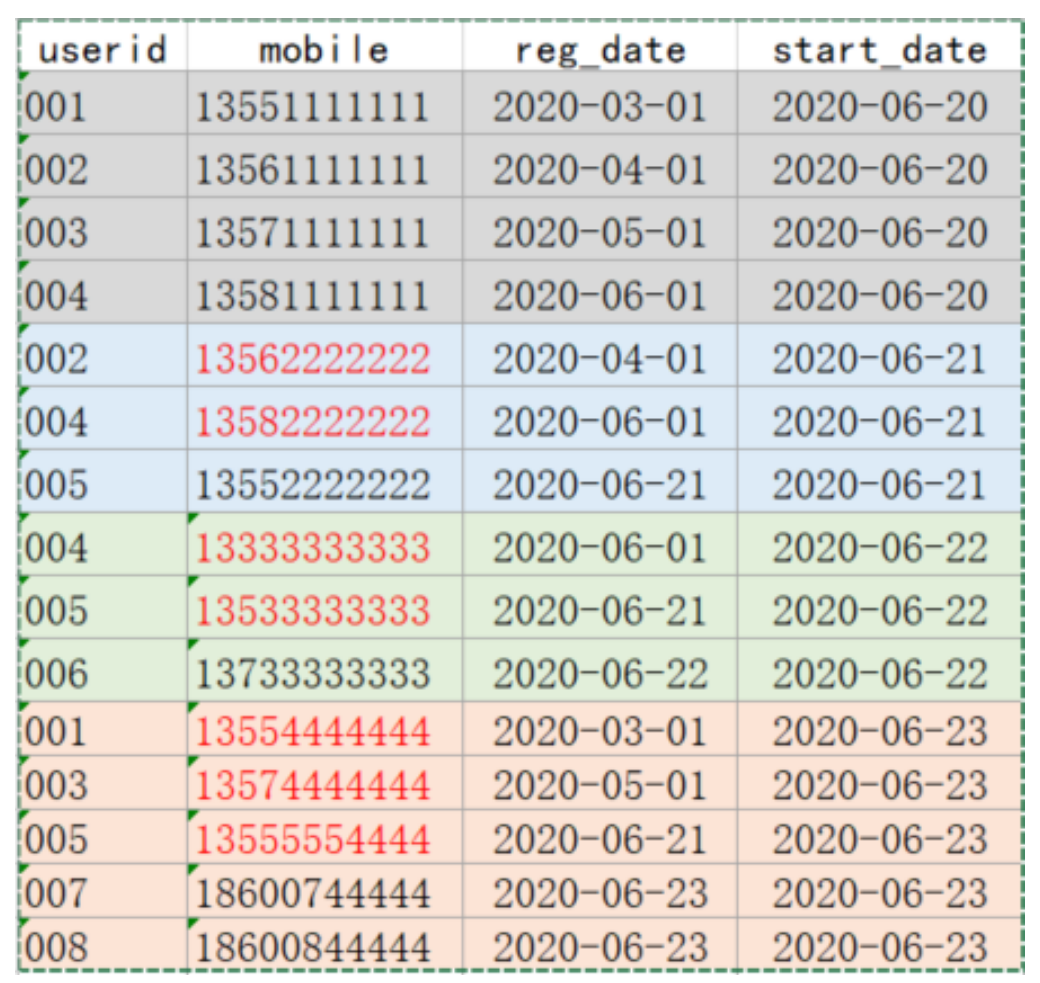

5.2、维表拉链表应用案例

1、创建表加载数据（准备工作）

-- 用户信息
DROP TABLE IF EXISTS test.userinfo;
CREATE TABLE test.userinfo(
userid STRING COMMENT '用户编号',
mobile STRING COMMENT '手机号码',
regdate STRING COMMENT '注册日期')
COMMENT '用户信息'
PARTITIONED BY (dt string)
row format delimited fields terminated by ',';
-- 拉链表（存放用户历史信息）
-- 拉链表不是分区表；多了两个字段start_date、end_date
DROP TABLE IF EXISTS test.userhis;
CREATE TABLE test.userhis(
userid STRING COMMENT '用户编号',
mobile STRING COMMENT '手机号码',
regdate STRING COMMENT '注册日期',
start_date STRING,
end_date STRING)
COMMENT '用户信息拉链表'
row format delimited fields terminated by ',';

数据

-- 数据(/data/lagoudw/data/userinfo.dat)
001,13551111111,2020-03-01,2020-06-20
002,13561111111,2020-04-01,2020-06-20
003,13571111111,2020-05-01,2020-06-20
004,13581111111,2020-06-01,2020-06-20
002,13562222222,2020-04-01,2020-06-21
004,13582222222,2020-06-01,2020-06-21
005,13552222222,2020-06-21,2020-06-21
004,13333333333,2020-06-01,2020-06-22
005,13533333333,2020-06-21,2020-06-22
006,13733333333,2020-06-22,2020-06-22
001,13554444444,2020-03-01,2020-06-23
003,13574444444,2020-05-01,2020-06-23
005,13555554444,2020-06-21,2020-06-23
007,18600744444,2020-06-23,2020-06-23
008,18600844444,2020-06-23,2020-06-23-- 静态分区数据加载（略）
/data/lagoudw/data/userinfo0620.dat
001,13551111111,2020-03-01
002,13561111111,2020-04-01
003,13571111111,2020-05-01
004,13581111111,2020-06-01
load data local inpath '/data/lagoudw/data/userinfo0620.dat' into table test.userinfo partition(dt='2020-06-20');

采用以下动态分区数据加载

-- 动态分区数据加载：分区的值是不固定的，由输入数据确定
-- 创建中间表(非分区表)
drop table if exists test.tmp1;
create table test.tmp1 as
select * from test.userinfo;
-- tmp1 非分区表，使用系统默认的字段分割符'\001'
alter table test.tmp1 set serdeproperties('field.delim'=',');
-- 向中间表加载数据
hive (test)> load data local inpath '/data/lagoudw/data/userinfo.dat' into table test.tmp1;
-- 从中间表向分区表加载数据
set hive.exec.dynamic.partition.mode=nonstrict;
insert into table test.userinfo partition(dt) select * from test.tmp1;

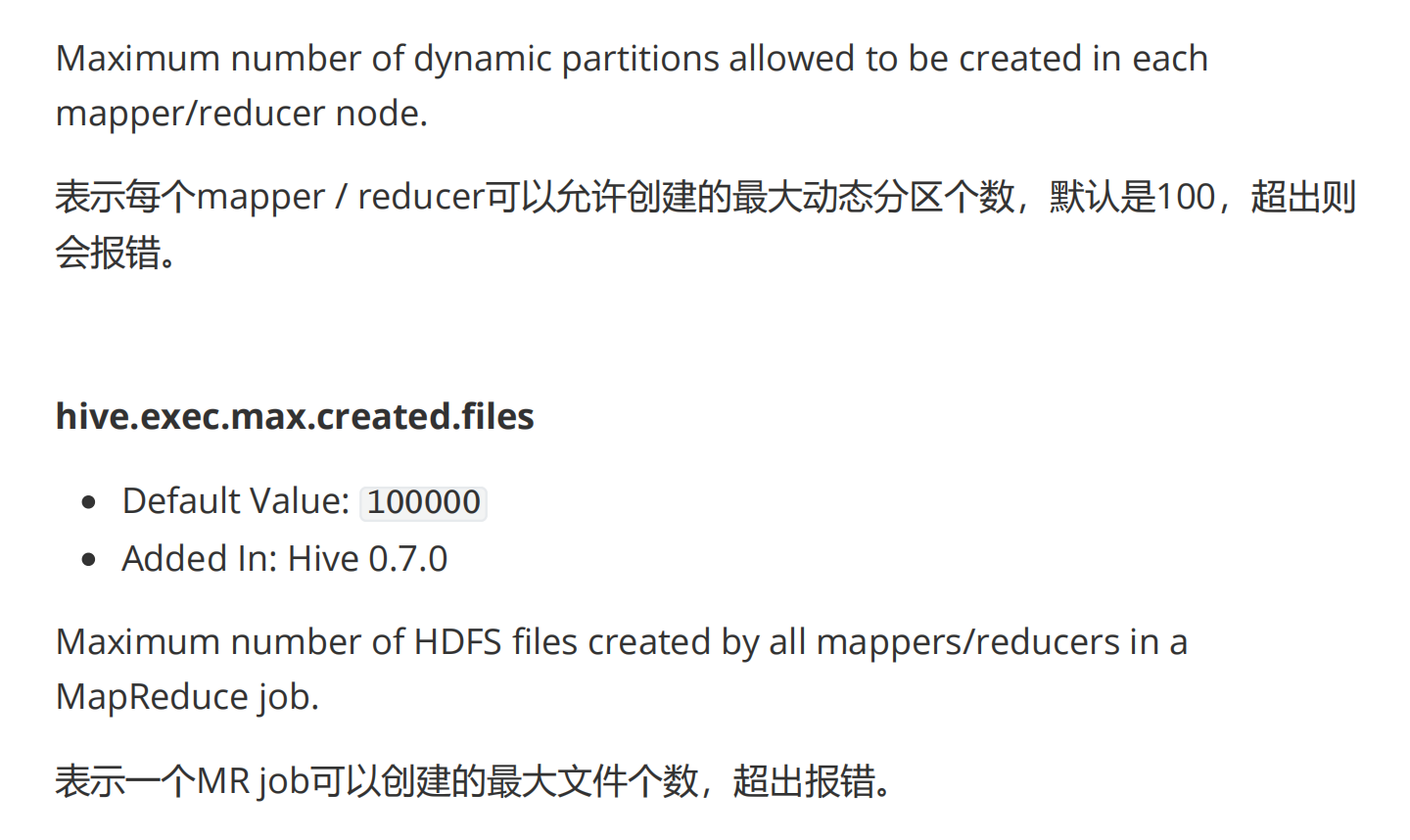

与动态分区相关的参数
hive.exec.dynamic.partition

• Default Value: false prior to Hive 0.9.0; true in Hive 0.9.0 and later
• Added In: Hive 0.6.0

Whether or not to allow dynamic partitions in DML/DDL.
表示开启动态分区功能

2、拉链表的实现

userinfo(分区表) => userid、mobile、regdate => 每日变更的数据（修改的+新增
的） / 历史数据（第一天）
userhis（拉链表）=> 多了两个字段 start_date / end_date

-- 步骤：
-- 1、userinfo初始化（2020-06-20）。获取历史数据
001,13551111111,2020-03-01,2020-06-20
002,13561111111,2020-04-01,2020-06-20
003,13571111111,2020-05-01,2020-06-20
004,13581111111,2020-06-01,2020-06-20-- 2、初始化拉链表（2020-06-20）。userinfo => userhis
insert overwrite table test.userhis
select userid, mobile, regdate, dt as start_date, '9999-12-31' as end_date
from test.userinfo
where dt='2020-06-20';-- 3、次日新增数据（2020-06-21）；获取新增数据
002,13562222222,2020-04-01,2020-06-21
004,13582222222,2020-06-01,2020-06-21
005,13552222222,2020-06-21,2020-06-21-- 4、构建拉链表(userhis)（2020-06-21）【核心】 userinfo(2020-06-21) + userhis => userhis
-- userinfo: 新增数据
-- userhis：历史数据
-- 第一步：处理新增数据【userinfo】（处理逻辑与加载历史数据类似）
select userid, mobile, regdate, dt as start_date, '9999-12-31' as end_date
from test.userinfo
where dt='2020-06-21';
-- 第二步：处理历史数据【userhis】（历史包括两部分：变化的、未变化的）
-- 变化的：start_date:不变；end_date：传入日期-1
-- 未变化的：不做处理
-- 观察数据
select A.userid, B.userid, B.mobile, B.regdate, B.start_Date,
B.end_date
from (select * from test.userinfo where dt='2020-06-21') A
right join test.userhis B
on A.userid=B.userid;
-- 编写SQL，处理历史数据
select B.userid,
B.mobile,
B.regdate,
B.start_Date,
case when B.end_date='9999-12-31' and A.userid is not null
then date_add('2020-06-21', -1)
else B.end_date
end as end_date
from (select * from test.userinfo where dt='2020-06-21') A
right join test.userhis B
on A.userid=B.userid;
-- 最终的处理（新增+历史数据）
insert overwrite table test.userhis
select userid, mobile, regdate, dt as start_date, '9999-12-31' as end_date
from test.userinfo
where dt='2020-06-21'
union all
select B.userid,
B.mobile,
B.regdate,
B.start_Date,
case when B.end_date='9999-12-31' and A.userid is not null
then date_add('2020-06-21', -1)
else B.end_date
end as end_date
from (select * from test.userinfo where dt='2020-06-21') A
right join test.userhis B
on A.userid=B.userid;-- 5、第三日新增数据（2020-06-22）；获取新增数据
004,13333333333,2020-06-01,2020-06-22
005,13533333333,2020-06-21,2020-06-22
006,13733333333,2020-06-22,2020-06-22-- 6、构建拉链表（2020-06-22） userinfo(2020-06-22) + userhis =>userhis-- 7、第四日新增数据（2020-06-23）
001,13554444444,2020-03-01,2020-06-23
003,13574444444,2020-05-01,2020-06-23
005,13555554444,2020-06-21,2020-06-23
007,18600744444,2020-06-23,2020-06-23
008,18600844444,2020-06-23,2020-06-23-- 8、构建拉链表(2020-06-23)

处理拉链表的脚本(测试脚本)：
/data/lagoudw/data/userzipper.sh

#!/bin/bash
source /etc/profile
if [ -n "$1" ] ;then
do_date=$1
else
do_date=`date -d "-1 day" +%F`
fi
sql="
insert overwrite table test.userhis
select userid, mobile, regdate, dt as start_date, '9999-12-31' as end_date
from test.userinfo
where dt='$do_date'
union all
select B.userid,
B.mobile,
B.regdate,
B.start_Date,
case when B.end_date='9999-12-31' and A.userid is not null
then date_add('$do_date', -1)
else B.end_date
end as end_date
from (select * from test.userinfo where dt='$do_date') A
right join test.userhis B
on A.userid=B.userid;
"
hive -e "$sql"

拉链表的使用：

-- 查看拉链表中最新数据(2020-06-23以后的数据)
select * from userhis where end_date='9999-12-31';
-- 查看拉链表中给定日期数据("2020-06-22")
select * from userhis where start_date <= '2020-06-22' and end_date >= '2020-06-22';
-- 查看拉链表中给定日期数据("2020-06-21")
select * from userhis where start_date <= '2020-06-21' and end_date >= '2020-06-21';
-- 查看拉链表中给定日期数据("2020-06-20")
select * from userhis where start_date <= '2020-06-20' and end_date >= '2020-06-20';

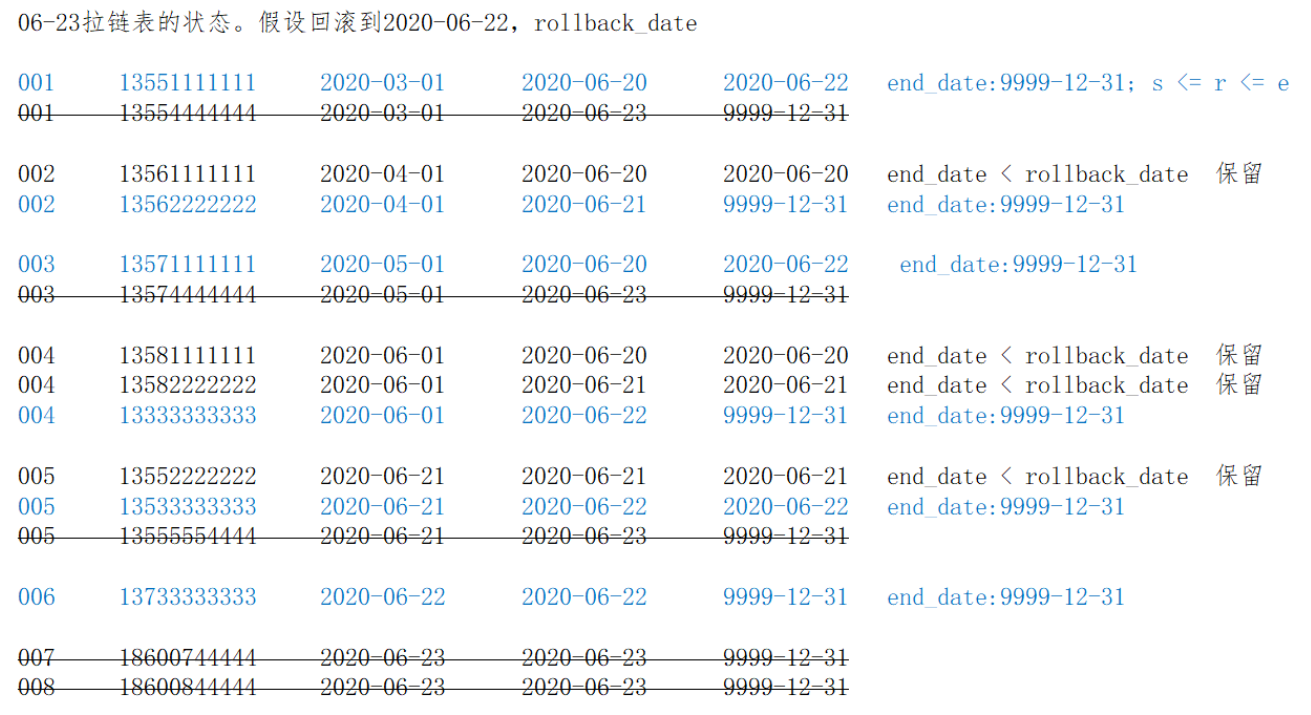

3、拉链表的回滚



由于种种原因需要将拉链表恢复到 rollback_date 那一天的数据。此时有：

• end_date < rollback_date，即结束日期 < 回滚日期。表示该行数据在rollback_date 之前产生，这些数据需要原样保留
• start_date <= rollback_date <= end_date，即开始日期 <= 回滚日期 <= 结束日期。这些数据是回滚日期之后产生的，但是需要修改。将end_date 改为 9999-12-31
• 其他数据不用管

按以上方案进行编码：
1、处理 end_date < rollback_date 的数据，保留

select userid, mobile, regdate, start_date, end_date, '1' astag
from test.userhis
where end_date < '2020-06-22';

2、处理 start_date <= rollback_date <= end_date 的数据，设置end_date=9999-12-31

select userid, mobile, regdate, start_date, '9999-12-31' as end_date, '2' as tag
from test.userhis
where start_date <= '2020-06-22' and end_date >= '2020-06-22';

3、将前面两步的数据写入临时表tmp（拉链表）

drop table test.tmp;
create table test.tmp as
select userid, mobile, regdate, start_date, end_date, '1' as tag
from test.userhis
where end_date < '2020-06-22'
union all
select userid, mobile, regdate, start_date, '9999-12-31' as end_date, '2' as tag
from test.userhis
where start_date <= '2020-06-22' and end_date >= '2020-06-22';
select * from test.tmp cluster by userid, start_date;

4、模拟脚本
/data/lagoudw/data/zippertmp.sh

#!/bin/bash
source /etc/profile
if [ -n "$1" ] ;then
do_date=$1
else
do_date=`date -d "-1 day" +%F`
fi
sql="
drop table test.tmp;
create table test.tmp as
select userid, mobile, regdate, start_date, end_date, '1' as tag
from test.userhis
where end_date < '$do_date'
union all
select userid, mobile, regdate, start_date, '9999-12-31' as end_date, '2' as tag
from test.userhis
where start_date <= '$do_date' and end_date >= '$do_date';
"
hive -e "$sql"

逐天回滚，检查数据；

方案二：保存一段时间的增量数据(userinfo)，定期对拉链表做备份（如一个月做一
次备份）；如需回滚，直接在备份的拉链表上重跑增量数据。处理简单

5.3、周期性事实表

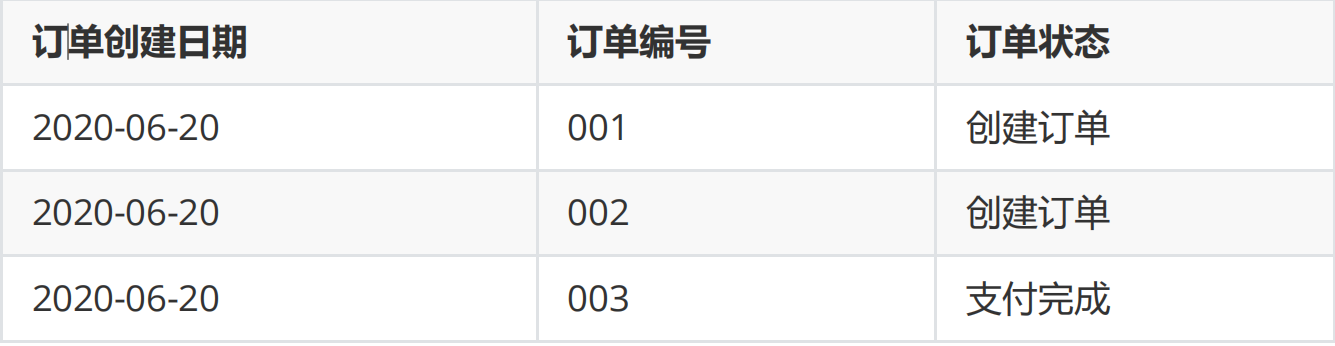

有如下订单表，6月20号有3条记录(001/002/003)：

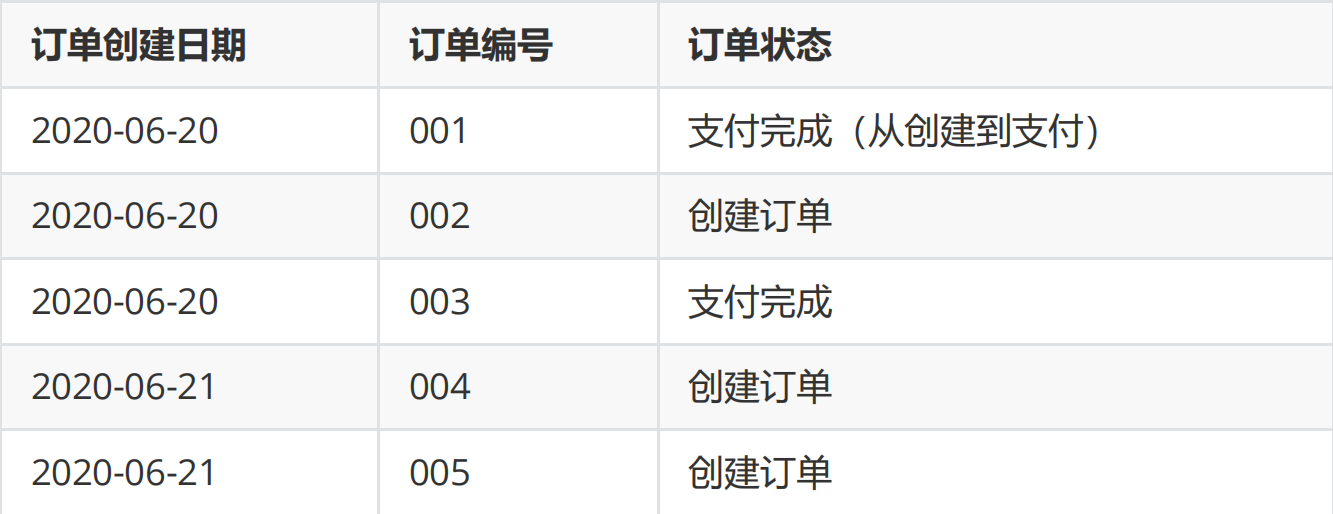

6月21日，表中有5条记录。其中新增2条记录（004/005），修改1条记录（001）：

6月22日，表中有6条记录。其中新增1条记录（006），修改2条记录（003/005）：

订单事实表的处理方法：

• 只保留一份全量。数据和6月22日的记录一样，如果需要查看6月21日订单001的
  状态，则无法满足；
• 每天都保留一份全量。在数据仓库中可以在找到所有的历史信息，但数据量大
  了，而且很多信息都是重复的，会造成较大的存储浪费；

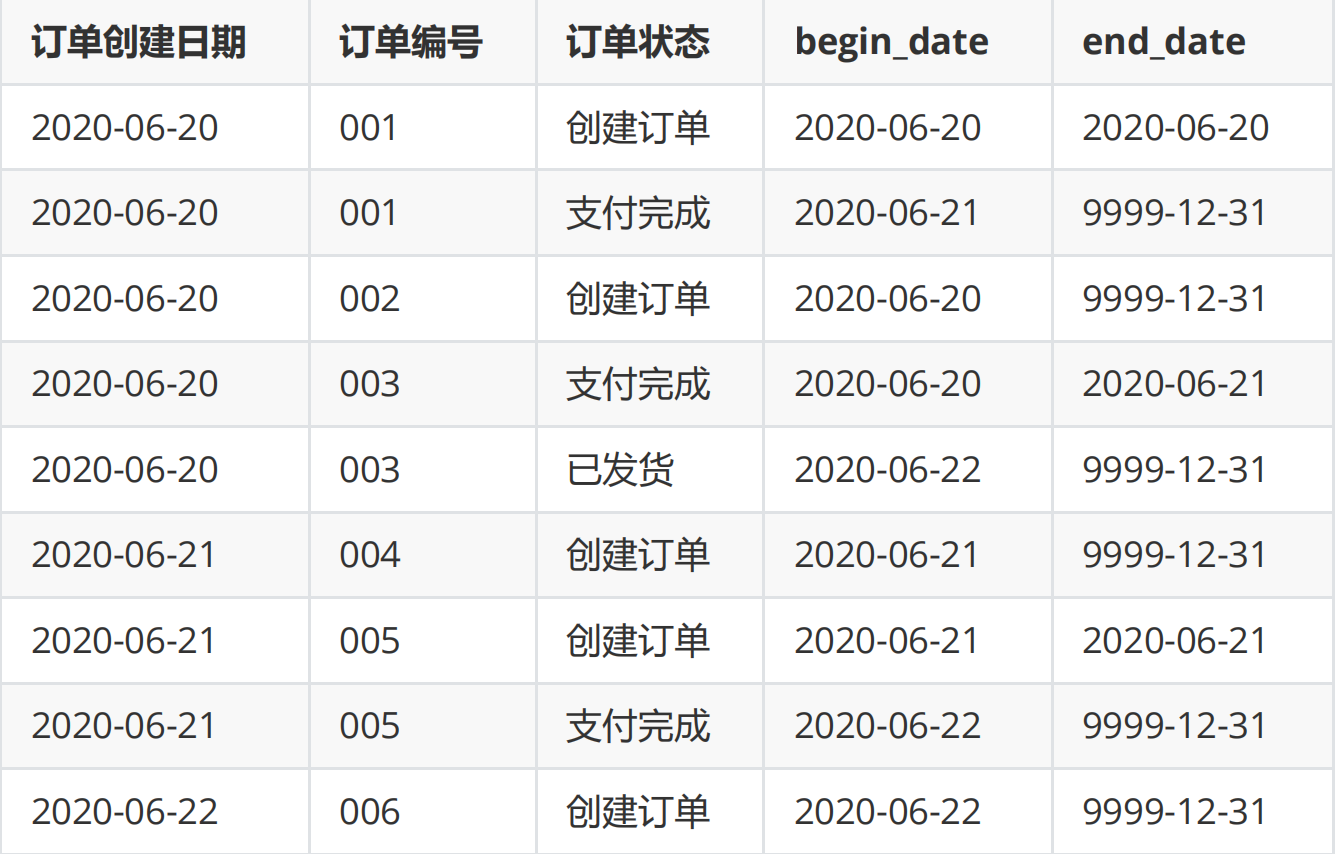

使用拉链表保存历史信息，会有下面这张表。历史拉链表，既能满足保存历史数据的
需求，也能节省存储资源。

1、前提条件

• 订单表的刷新频率为一天，当天获取前一天的增量数据；
• 如果一个订单在一天内有多次状态变化，只记录最后一个状态的信息；
• 订单状态包括三个：创建、支付、完成；
• 创建时间和修改时间只取到天，如果源订单表中没有状态修改时间，那么抽取增
  量就比较麻烦，需要有个机制来确保能抽取到每天的增量数据；

数仓ODS层有订单表，数据按日分区，存放每天的增量数据：

DROP TABLE test.ods_orders;
CREATE TABLE test.ods_orders(
orderid INT,
createtime STRING,
modifiedtime STRING,
status STRING
) PARTITIONED BY (dt STRING)
row format delimited fields terminated by ',';

数仓DWD层有订单拉链表，存放订单的历史状态数据：

DROP TABLE test.dwd_orders;
CREATE TABLE test.dwd_orders(
orderid INT,
createtime STRING,
modifiedtime STRING,
status STRING,
start_date STRING,
end_date STRING
)
row format delimited fields terminated by ',';

2、周期性事实表拉链表的实现
1、全量初始化

-- 数据文件order1.dat
001,2020-06-20,2020-06-20,创建
002,2020-06-20,2020-06-20,创建
003,2020-06-20,2020-06-20,支付load data local inpath '/data/lagoudw/data/order1.dat' into table test.ods_orders partition(dt='2020-06-20');
INSERT overwrite TABLE test.dwd_orders
SELECT orderid, createtime, modifiedtime, status,
createtime AS start_date,
'9999-12-31' AS end_date
FROM test.ods_orders
WHERE dt='2020-06-20';

增量抽取

-- 数据文件order2.dat
001,2020-06-20,2020-06-21,支付
004,2020-06-21,2020-06-21,创建
005,2020-06-21,2020-06-21,创建load data local inpath '/data/lagoudw/data/order2.dat' into table test.ods_orders partition(dt='2020-06-21');

增量刷新历史数据

-- 拉链表中的数据分两部实现：新增数据(ods_orders)、历史数据(dwd_orders)

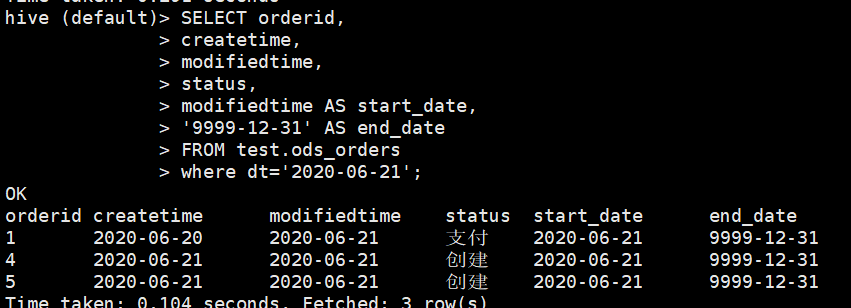

-- 处理新增数据
SELECT orderid,
createtime,
modifiedtime,
status,
modifiedtime AS start_date,
'9999-12-31' AS end_date
FROM test.ods_orders

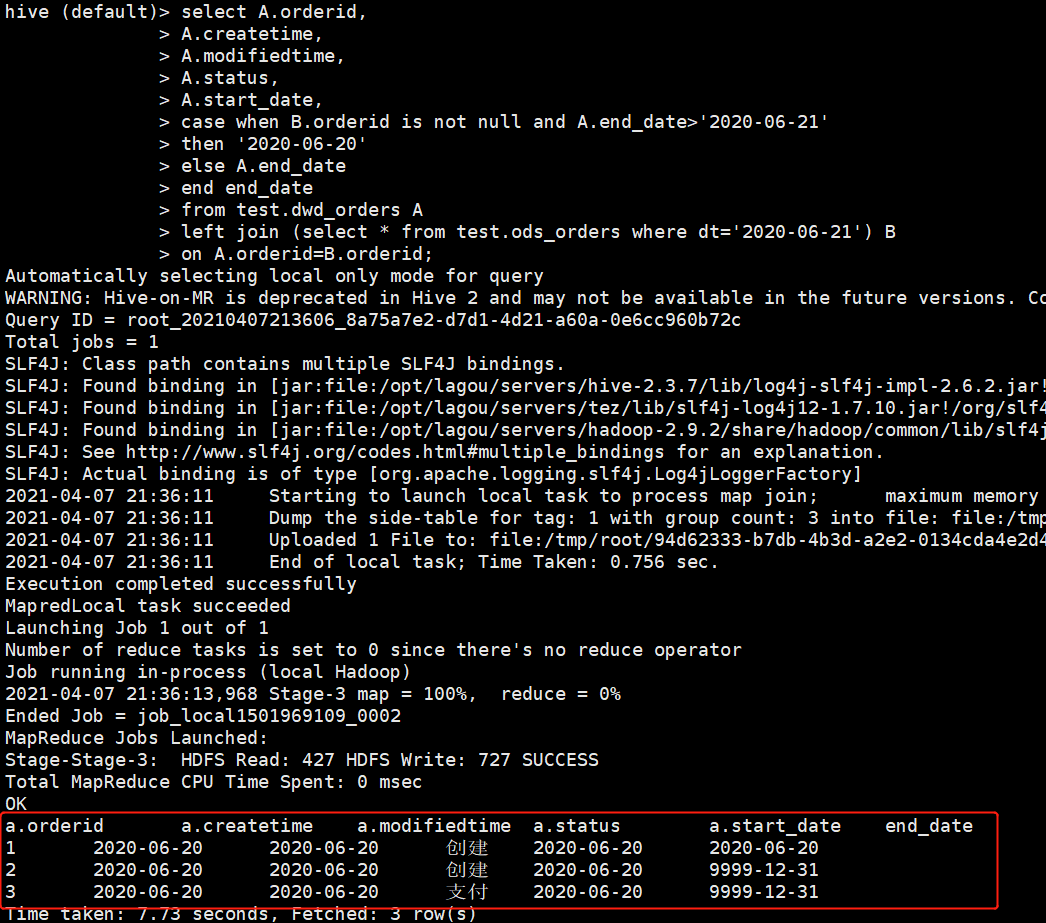

where dt='2020-06-21';-- 处理历史数据。历史数据包括：有修改、无修改的数据
-- ods_orders 与 dwd_orders 进行表连接
-- 连接上，说明数据被修改
-- 未连接上，说明数据未被修改
select A.orderid,
A.createtime,
A.modifiedtime,
A.status,
A.start_date,
case when B.orderid is not null and A.end_date>'2020-06-21'
then '2020-06-20'
else A.end_date
end end_date
from test.dwd_orders A
left join (select * from test.ods_orders where dt='2020-06-21') B
on A.orderid=B.orderid;-- 用以上信息覆写拉链表

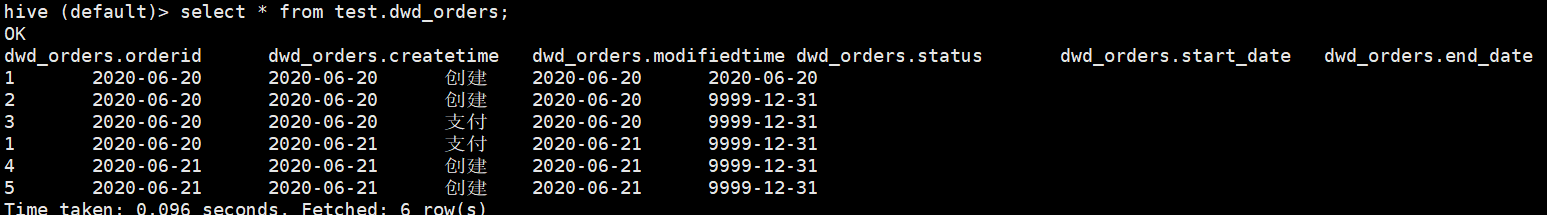

insert overwrite table test.dwd_orders
SELECT orderid,
createtime,
modifiedtime,
status,
modifiedtime AS start_date,
'9999-12-31' AS end_date
FROM test.ods_orders
where dt='2020-06-21'
union all
select A.orderid,
A.createtime,
A.modifiedtime,
A.status,
A.start_date,
case when B.orderid is not null and A.end_date>'2020-06-21'
then '2020-06-20'
else A.end_date
end end_date
from test.dwd_orders A
left join (select * from test.ods_orders where dt='2020-06-21') B
on A.orderid=B.orderid;

5.4、拉链表小结

第6节 DIM层建表加载数据

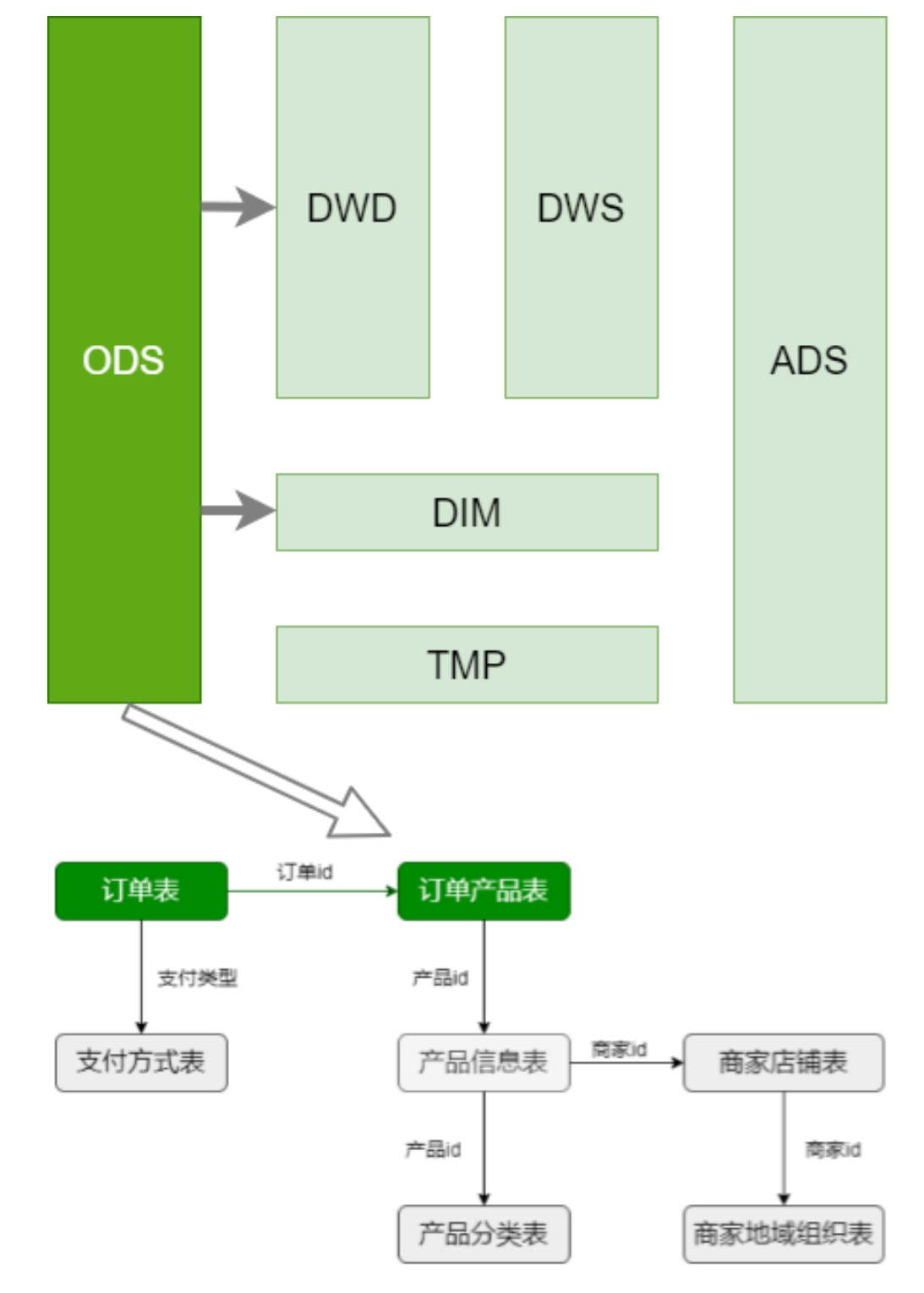

首先要确定哪些是事实表、哪些是维表。绿色的是事实表，灰色的维表
用什么方式处理维表，每日快照、拉链表？
小表使用每日快照：产品分类表、商家店铺表、商家地域组织表、支付方式表
大表使用拉链表：产品信息表

6.1 商品分类表

数据库中的数据是规范的（满足三范式），但是规范化的数据给查询带来不便。
备注：这里对商品分类维度表做了逆规范化
省略了无关信息，做成了宽表

DROP TABLE IF EXISTS dim.dim_trade_product_cat;
create table if not exists dim.dim_trade_product_cat(
firstId int, -- 一级商品分类id
firstName string, -- 一级商品分类名称
secondId int, -- 二级商品分类Id
secondName string, -- 二级商品分类名称
thirdId int, -- 三级商品分类id
thirdName string -- 三级商品分类名称
)
partitioned by (dt string)
STORED AS PARQUET;

实现：

select T1.catid, T1.catname, T2.catid, T2.catname, T3.catid,
T3.catname
from (select catid, catname, parentid
from ods.ods_trade_product_category
where level=3 and dt='2020-07-01') T3
left join
(select catid, catname, parentid
from ods.ods_trade_product_category
where level=2 and dt='2020-07-01') T2
on T3.parentid=T2.catid
left join
(select catid, catname, parentid
from ods.ods_trade_product_category
where level=1 and dt='2020-07-01') T1
on T2.parentid=T1.catid;

数据加载：
/data/lagoudw/script/trade/dim_load_product_cat.sh

#！/bin/bash
source /etc/profile
if [ -n "$1" ]
then
do_date=$1
else
do_date=`date -d "-1 day" +%F`
fi
sql="
insert overwrite table dim.dim_trade_product_cat
partition(dt='$do_date')
select
t1.catid, -- 一级分类id
t1.catname, -- 一级分类名称
t2.catid, -- 二级分类id
t2.catname, -- 二级分类名称
t3.catid, -- 三级分类id
t3.catname -- 三级分类名称
from
-- 商品三级分类数据
(select catid, catname, parentid
from ods.ods_trade_product_category
where level=3 and dt='$do_date') t3
left join
-- 商品二级分类数据
(select catid, catname, parentid
from ods.ods_trade_product_category
where level=2 and dt='$do_date') t2
on t3.parentid = t2.catid
left join
-- 商品一级分类数据
(select catid, catname, parentid
from ods.ods_trade_product_category
where level=1 and dt='$do_date') t1
on t2.parentid = t1.catid;
"
hive -e "$sql"

6.2 商品地域组织表

商家店铺表、商家地域组织表 => 一张维表
这里也是逆规范化的设计，将商家店铺表、商家地域组织表组织成一张表，并拉宽。
在一行数据中体现：商家信息、城市信息、地域信息。信息中包括 id 和 name ；

drop table if exists dim.dim_trade_shops_org;
create table dim.dim_trade_shops_org(
shopid int,
shopName string,
cityId int,
cityName string ,
regionId int ,
regionName string
)
partitioned by (dt string)
STORED AS PARQUET;

实现

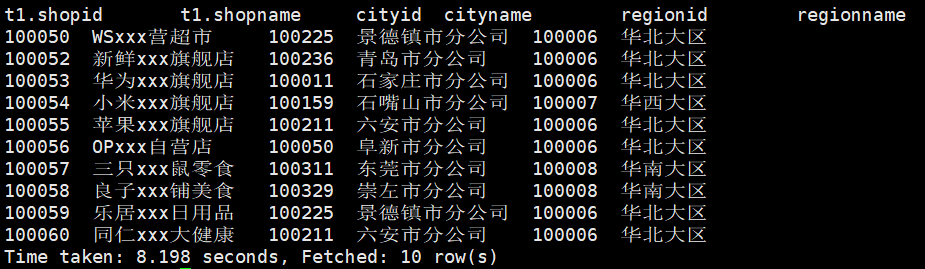

select T1.shopid, T1.shopname, T2.id cityid, T2.orgname
cityname, T3.id regionid, T3.orgname regionname
from
(select shopid, shopname, areaid
from ods.ods_trade_shops
where dt='2020-07-01') T1
left join
(select id, parentid, orgname, orglevel
from ods.ods_trade_shop_admin_org
where orglevel=2 and dt='2020-07-01') T2
on T1.areaid=T2.id
left join
(select id, orgname, orglevel
from ods.ods_trade_shop_admin_org
where orglevel=1 and dt='2020-07-01') T3
on T2.parentid=T3.id
limit 10;

/data/lagoudw/script/trade/dim_load_shop_org.sh

#！/bin/bash
source /etc/profile
if [ -n "$1" ]
then
do_date=$1
else
do_date=`date -d "-1 day" +%F`
fi
sql="
insert overwrite table dim.dim_trade_shops_org
partition(dt='$do_date')
select t1.shopid,
t1.shopname,
t2.id as cityid,
t2.orgname as cityName,
t3.id as region_id,
t3.orgname as region_name
from (select shopId, shopName, areaId
from ods.ods_trade_shops
where dt='$do_date') t1
left join
(select id, parentId, orgname, orglevel
from ods.ods_trade_shop_admin_org
where orglevel=2 and dt='$do_date') t2
on t1.areaid = t2.id
left join
(select id, parentId, orgname, orglevel
from ods.ods_trade_shop_admin_org
where orglevel=1 and dt='$do_date') t3
on t2.parentid = t3.id;
"
hive -e "$sql"

6.3 支付方式表

对ODS中表的信息做了裁剪，只保留了必要的信息。

drop table if exists dim.dim_trade_payment;
create table if not exists dim.dim_trade_payment(
paymentId string, -- 支付方式id
paymentName string -- 支付方式名称
)
partitioned by (dt string)
STORED AS PARQUET;

/data/lagoudw/script/trade/dim_load_payment.sh

#！/bin/bash
source /etc/profile
if [ -n "$1" ]
then
do_date=$1
else
do_date=`date -d "-1 day" +%F`
fi
sql="
insert overwrite table dim.dim_trade_payment
partition(dt='$do_date')
select id, payName
from ods.ods_trade_payments
where dt='$do_date';
"
hive -e "$sql"

6.4 商品信息表

使用拉链表对商品信息进行处理。
1、历史数据 => 初始化拉链表(开始日期：当日；结束日期：9999-12-31)【只执行一次】
2、拉链表的每日处理【每次加载数据时处理】

• 新增数据。每日新增数据(ODS) => 开始日期：当日；结束日期：9999-12-31
• 历史数据。拉链表(DIM) 与 每日新增数据(ODS) 做左连接
  • 连接上数据。数据有变化，结束日期：当日；
  • 未连接上数据。数据无变化，结束日期保持不变；

1、创建维表
拉链表要增加两列，分别记录生效日期和失效日期

drop table if exists dim.dim_trade_product_info;
create table dim.dim_trade_product_info(
`productId` bigint,
`productName` string,
`shopId` string,
`price` decimal,
`isSale` tinyint,
`status` tinyint,
`categoryId` string,
`createTime` string,
`modifyTime` string,
`start_dt` string,
`end_dt` string
) COMMENT '产品表'
STORED AS PARQUET;

2、初始数据加载（历史数据加载，只做一次）

insert overwrite table dim.dim_trade_product_info
select productId,
productName,
shopId,
price,
isSale,
status,
categoryId,
createTime,
modifyTime,
-- modifyTime非空取modifyTime，否则取createTime；substr取日期
case when modifyTime is not null
then substr(modifyTime, 0, 10)
else substr(createTime, 0, 10)
end as start_dt,
'9999-12-31' as end_dt
from ods.ods_trade_product_info
where dt = '2020-07-12';

3、增量数据导入（重复执行，每次加载数据执行）
/data/lagoudw/script/trade/dim_load_product_info.sh

#！/bin/bash
source /etc/profile
if [ -n "$1" ]
then
do_date=$1
else
do_date=`date -d "-1 day" +%F`
fi
sql="
insert overwrite table dim.dim_trade_product_info
select productId,
productName,
shopId,
price,
isSale,
status,
categoryId,
createTime,
modifyTime,
case when modifyTime is not null
then substr(modifyTime,0,10)
else substr(createTime,0,10)
end as start_dt,
'9999-12-31' as end_dt
from ods.ods_trade_product_info
where dt='$do_date'
union all
select dim.productId,
dim.productName,
dim.shopId,
dim.price,
dim.isSale,
dim.status,
dim.categoryId,
dim.createTime,
dim.modifyTime,
dim.start_dt,
case when dim.end_dt >= '9999-12-31' and ods.productId
is not null
then '$do_date'
else dim.end_dt
end as end_dt
from dim.dim_trade_product_info dim left join
(select *
from ods.ods_trade_product_info
where dt='$do_date' ) ods
on dim.productId = ods.productId
"
hive -e "$sql"

第7节 DWD层建表加载数据

要处理的表有两张：订单表、订单产品表。其中：

• 订单表是周期性事实表；为保留订单状态，可以使用拉链表进行处理；
• 订单产品表普通的事实表，用常规的方法进行处理；
  • 如果有数据清洗、数据转换的业务需求，ODS => DWD
  • 如果没有数据清洗、数据转换的业务需求，保留在ODS，不做任何变化。这个是本项目的处理方式

订单状态：

• -3：用户拒收
• -2：未付款的订单
• -1：用户取消
• 0：待发货
• 1：配送中
• 2：用户确认收货

订单从创建到最终完成，是有时间限制的；业务上也不允许订单在一个月之后，状态仍然在发生变化；

7.1、DWD层建表

备注：

• 与维表不同，订单事实表的记录数非常多
• 订单有生命周期；订单的状态不可能永远处于变化之中（订单的生命周期一般在15天左右）
• 订单是一个拉链表，而且是分区表
• 分区的目的：订单一旦终止，不会重复计算
• 分区的条件：订单创建日期；保证相同的订单在用一个分区

-- 订单事实表(拉链表)
DROP TABLE IF EXISTS dwd.dwd_trade_orders;
create table dwd.dwd_trade_orders(
`orderId` int,
`orderNo` string,
`userId` bigint,
`status` tinyint,
`productMoney` decimal,
`totalMoney` decimal,
`payMethod` tinyint,
`isPay` tinyint,
`areaId` int,
`tradeSrc` tinyint,
`tradeType` int,
`isRefund` tinyint,
`dataFlag` tinyint,
`createTime` string,
`payTime` string,
`modifiedTime` string,
`start_date` string,
`end_date` string
) COMMENT '订单事实拉链表'
partitioned by (dt string)
STORED AS PARQUET;

7.2、DWD层数据加载

-- 备注：时间日期格式转换
-- 'yyyy-MM-dd HH:mm:ss' => timestamp => 'yyyy-MM-dd'
select unix_timestamp(modifiedtime, 'yyyy-MM-dd HH:mm:ss')
from ods.ods_trade_orders limit 10;
select from_unixtime(unix_timestamp(modifiedtime, 'yyyy-MM-ddHH:mm:ss'), 'yyyy-MM-dd')
from ods.ods_trade_orders limit 10;

/data/lagoudw/script/trade/dwd_load_trade_orders.sh

#！/bin/bash
source /etc/profile
if [ -n "$1" ]
then
do_date=$1
else
do_date=`date -d "-1 day" +%F`
fi
sql="
set hive.exec.dynamic.partition.mode=nonstrict;
set hive.exec.dynamic.partition=true;
INSERT OVERWRITE TABLE dwd.dwd_trade_orders
partition(dt)
SELECT orderId,
orderNo,
userId,
status,
productMoney,
totalMoney,
payMethod,
isPay,
areaId,
tradeSrc,
tradeType,
isRefund,
dataFlag,
createTime,
payTime,
modifiedTime,
case when modifiedTime is not null
then from_unixtime(unix_timestamp(modifiedTime,'yyyy-MM-dd HH:mm:ss'),'yyyy-MM-dd')
else from_unixtime(unix_timestamp(createTime,'yyyy-MM-dd HH:mm:ss'), 'yyyy-MM-dd')
end as start_date,
'9999-12-31' as end_date,
from_unixtime(unix_timestamp(createTime, 'yyyy-MM-dd HH:mm:ss'), 'yyyy-MM-dd') as dt
FROM ods.ods_trade_orders
WHERE dt='$do_date'
union all
SELECT A.orderId,
A.orderNo,
A.userId,
A.status,
A.productMoney,
A.totalMoney,
A.payMethod,
A.isPay,
A.areaId,
A.tradeSrc,
A.tradeType,
A.isRefund,
A.dataFlag,
A.createTime,
A.payTime,
A.modifiedTime,
A.start_date,
CASE WHEN B.orderid IS NOT NULL AND A.end_date >'$do_date'
THEN date_add('$do_date', -1)
ELSE A.end_date END AS end_date,
from_unixtime(unix_timestamp(A.createTime, 'yyyy-MM-dd HH:mm:ss'), 'yyyy-MM-dd') as dt
FROM (SELECT * FROM dwd.dwd_trade_orders WHERE
dt>date_add('$do_date', -15)) A
left outer join (SELECT * FROM ods.ods_trade_orders
WHERE dt='$do_date') B
ON A.orderId = B.orderId;
"
hive -e "$sql"

第8节 DWS层建表及数据加载

DIM、DWD => 数据仓库分层、数据仓库理论
需求：计算当天

• 全国所有订单信息
• 全国、一级商品分类订单信息
• 全国、二级商品分类订单信息
• 大区所有订单信息
• 大区、一级商品分类订单信息
• 大区、二级商品分类订单信息
• 城市所有订单信息
• 城市、一级商品分类订单信息
• 城市、二级商品分类订单信息

需要的信息：订单表、订单商品表、商品信息维表、商品分类维表、商家地域维表
订单表 => 订单id、订单状态
订单商品表 => 订单id、商品id、商家id、单价、数量
商品信息维表 => 商品id、三级分类id
商品分类维表 => 一级名称、一级分类id、二级名称、二级分类id、三级名称、三级分类id
商家地域维表 => 商家id、区域名称、区域id、城市名称、城市id
订单表、订单商品表、商品信息维表 => 订单id、商品id、商家id、三级分类id、单价、数量（订单明细表）

订单明细表、商品分类维表、商家地域维表 => 订单id、商品id、商家id、三级分类名称、三级分类名称、三级分类名称、单价、数量、区域、城市 => 订单明细宽表

8.1、DWS层建表

dws_trade_orders（订单明细）由以下表轻微聚合而成：

• dwd.dwd_trade_orders (拉链表、分区表)
• ods.ods_trade_order_product （分区表）
• dim.dim_trade_product_info（维表、拉链表）

dws_trade_orders_w（订单明细宽表）由以下表组成：

• ads.dws_trade_orders (分区表)
• dim.dim_trade_product_cat（分区表）
• dim.dim_trade_shops_org（分区表）

-- 订单明细表(轻度汇总事实表)。每笔订单的明细
DROP TABLE IF EXISTS dws.dws_trade_orders;
create table if not exists dws.dws_trade_orders(
orderid string, -- 订单id
cat_3rd_id string, -- 商品三级分类id
shopid string, -- 店铺id
paymethod tinyint, -- 支付方式
productsnum bigint, -- 商品数量
paymoney double, -- 订单商品明细金额
paytime string -- 订单时间
)
partitioned by (dt string)
STORED AS PARQUET;-- 订单明细表宽表
DROP TABLE IF EXISTS dws.dws_trade_orders_w;
create table if not exists dws.dws_trade_orders_w(
orderid string, -- 订单id
cat_3rd_id string, -- 商品三级分类id
thirdname string, -- 商品三级分类名称
secondname string, -- 商品二级分类名称
firstname string, -- 商品一级分类名称
shopid string, -- 店铺id
shopname string, -- 店铺名
regionname string, -- 店铺所在大区
cityname string, -- 店铺所在城市
paymethod tinyint, -- 支付方式
productsnum bigint, -- 商品数量
paymoney double, -- 订单明细金额
paytime string -- 订单时间
)
partitioned by (dt string)
STORED AS PARQUET;

8.2、DWS层加载数据

/data/lagoudw/script/trade/dws_load_trade_orders.sh
备注：dws_trade_orders/dws_trade_orders_w 中一笔订单可能出现多条记录！

#！/bin/bash
source /etc/profile
if [ -n "$1" ]
then
do_date=$1
else
do_date=`date -d "-1 day" +%F`
fi
sql="
insert overwrite table dws.dws_trade_orders
partition(dt='$do_date')
select t1.orderid as orderid,
t3.categoryid as cat_3rd_id,
t3.shopid as shopid,
t1.paymethod as paymethod,
t2.productnum as productsnum,
t2.productnum*t2.productprice as pay_money,
t1.paytime as paytime
from (select orderid, paymethod, paytime
from dwd.dwd_trade_orders
where dt='$do_date') T1
left join
(select orderid, productid, productnum, productprice
from ods.ods_trade_order_product
where dt='$do_date') T2
on t1.orderid = t2.orderid
left join
(select productid, shopid, categoryid
from dim.dim_trade_product_info
where start_dt <= '$do_date'
and end_dt >= '$do_date' ) T3
on t2.productid=t3.productid;insert overwrite table dws.dws_trade_orders_w
partition(dt='$do_date')
select t1.orderid,
t1.cat_3rd_id,
t2.thirdname,
t2.secondname,
t2.firstname,
t1.shopid,
t3.shopname,
t3.regionname,
t3.cityname,
t1.paymethod,
t1.productsnum,
t1.paymoney,
t1.paytime
from (select orderid,
cat_3rd_id,
shopid,
paymethod,
productsnum,
paymoney,
paytime
from dws.dws_trade_orders
where dt='$do_date') T1
join
(select thirdid, thirdname, secondid, secondname,
firstid, firstname
from dim.dim_trade_product_cat
where dt='$do_date') T2
on T1.cat_3rd_id = T2.thirdid
join
(select shopid, shopname, regionname, cityname
from dim.dim_trade_shops_org
where dt='$do_date') T3
on T1.shopid = T3.shopid
"
hive -e "$sql"

备注：要自己准备测试数据！

• dwd.dwd_trade_orders (拉链表、分区表)
• ods.ods_trade_order_product （分区表）
• dim.dim_trade_product_info（维表、拉链表）
• dim.dim_trade_product_cat（分区表）
• dim.dim_trade_shops_org（分区表）

保证测试的日期有数据。
构造测试数据（拉链分区表）

insert overwrite table dwd.dwd_trade_orders
partition(dt='2020-07-12')
select
orderid,
orderno,
userid,
status,
productmoney,
totalmoney,
paymethod,
ispay,
areaid,
tradesrc,
tradetype,
isrefund,
dataflag,
'2020-07-12',
paytime,
modifiedtime,
start_date,
end_date
from dwd.dwd_trade_orders
where end_date='9999-12-31';

第9节 ADS层开发

需求：计算当天

• 全国所有订单信息
• 全国、一级商品分类订单信息
• 全国、二级商品分类订单信息
• 大区所有订单信息
• 大区、一级商品分类订单信息
• 大区、二级商品分类订单信息
• 城市所有订单信息
• 城市、一级商品分类订单信息
• 城市、二级商品分类订单信息

用到的表：

• dws.dws_trade_orders_w

9.1、ADS层建表

-- ADS层订单分析表
DROP TABLE IF EXISTS ads.ads_trade_order_analysis;
create table if not exists ads.ads_trade_order_analysis(
areatype string, -- 区域范围：区域类型（全国、大区、城市）
regionname string, -- 区域名称
cityname string, -- 城市名称
categorytype string, -- 商品分类类型（一级、二级）
category1 string, -- 商品一级分类名称
category2 string, -- 商品二级分类名称
totalcount bigint, -- 订单数量
total_productnum bigint, -- 商品数量
totalmoney double -- 支付金额
)
partitioned by (dt string)
row format delimited fields terminated by ',';

9.2、ADS层加载数据

/data/lagoudw/script/trade/ads_load_trade_order_analysis.sh
备注：1笔订单，有多个商品；多个商品有不同的分类；这会导致一笔订单有多个分类，它们是分别统计的；

#！/bin/bash
source /etc/profile
if [ -n "$1" ]
then
do_date=$1
else
do_date=`date -d "-1 day" +%F`
fi
sql="
with mid_orders as (
select regionname,
cityname,
firstname category1,
secondname category2,
count(distinct orderid) as totalcount,
sum(productsnum) as total_productnum,
sum(paymoney) as totalmoney
from dws.dws_trade_orders_w
where dt='$do_date'
group by regionname, cityname, firstname, secondname
)
insert overwrite table ads.ads_trade_order_analysis
partition(dt='$do_date')
select '全国' as areatype,
'' as regionname,
'' as cityname,
'' as categorytype,
'' as category1,
'' as category2,
sum(totalcount),
sum(total_productnum),
sum(totalmoney)
from mid_ordersunion all
select '全国' as areatype,
'' as regionname,
'' as cityname,
'一级' as categorytype,
category1,
'' as category2,
sum(totalcount),
sum(total_productnum),
sum(totalmoney)
from mid_orders
group by category1union all
select '全国' as areatype,
'' as regionname,
'' as cityname,
'二级' as categorytype,
'' as category1,
category2,
sum(totalcount),
sum(total_productnum),
sum(totalmoney)
from mid_orders
group by category2union all
select '大区' as areatype,
regionname,
'' as cityname,
'' as categorytype,
'' as category1,
'' as category2,
sum(totalcount),
sum(total_productnum),
sum(totalmoney)
from mid_orders
group by regionnameunion all
select '大区' as areatype,
regionname,
'' as cityname,
'一级' as categorytype,
category1,
'' as category2,
sum(totalcount),
sum(total_productnum),
sum(totalmoney)
from mid_orders
group by regionname, category1
union all
select '大区' as areatype,
regionname,
'' as cityname,
'二级' as categorytype,
'' as category1,
category2,
sum(totalcount),
sum(total_productnum),
sum(totalmoney)
from mid_orders
group by regionname, category2union all
select '城市' as areatype,
'' as regionname,
cityname,
'' as categorytype,
'' as category1,
'' as category2,
sum(totalcount),
sum(total_productnum),
sum(totalmoney)
from mid_orders
group by cityname
union all
select '城市' as areatype,
'' as regionname,
cityname,
'一级' as categorytype,
category1,
'' as category2,
sum(totalcount),
sum(total_productnum),
sum(totalmoney)
from mid_orders
group by cityname, category1union all
select '城市' as areatype,
'' as regionname,
cityname,
'二级' as categorytype,
'' as category1,
category2,
sum(totalcount),
sum(total_productnum),
sum(totalmoney)
from mid_orders
group by cityname, category2;
"
hive -e "$sql"

备注：由于在dws.dws_trade_orders_w中，一笔订单可能有多条记录，所以在统计
订单数量的时候要用count(distinct orderid)

第10节 数据导出

ads.ads_trade_order_analysis 分区表，使用DataX导出到MySQL

第11节 小结

脚本调用次序：

# 加载ODS数据（含DataX迁移数据）
/data/lagoudw/script/trade/ods_load_trade.sh
# 加载DIM层数据
/data/lagoudw/script/trade/dim_load_product_cat.sh
/data/lagoudw/script/trade/dim_load_shop_org.sh
/data/lagoudw/script/trade/dim_load_payment.sh
/data/lagoudw/script/trade/dim_load_product_info.sh
# 加载DWD层数据
/data/lagoudw/script/trade/dwd_load_trade_orders.sh
# 加载DWS层数据
/data/lagoudw/script/trade/dws_load_trade_orders.sh
# 加载ADS层数据
/data/lagoudw/script/trade/ads_load_trade_order_analysis.sh

主要技术点：

• 拉链表。创建、使用与回滚；商品信息表、订单表（周期性事实表；分区表+拉链表）
• 宽表（逆规范化）：商品分类表、商品地域组织表、订单明细及订单明细宽表
  （轻度汇总的事实表）
